2. Set in Trouble Diagnosis Step 2
In this step, check the air mix door and sensors for defect.
Once the system starts diagnosis step 2, the digit "2" is displayed, implying step 2, on the display window and
the trouble diagnosis for sensors is executed. If no failure exists, "20" is displayed. If any failure exists, the
appropriate trouble code is displayed as below.

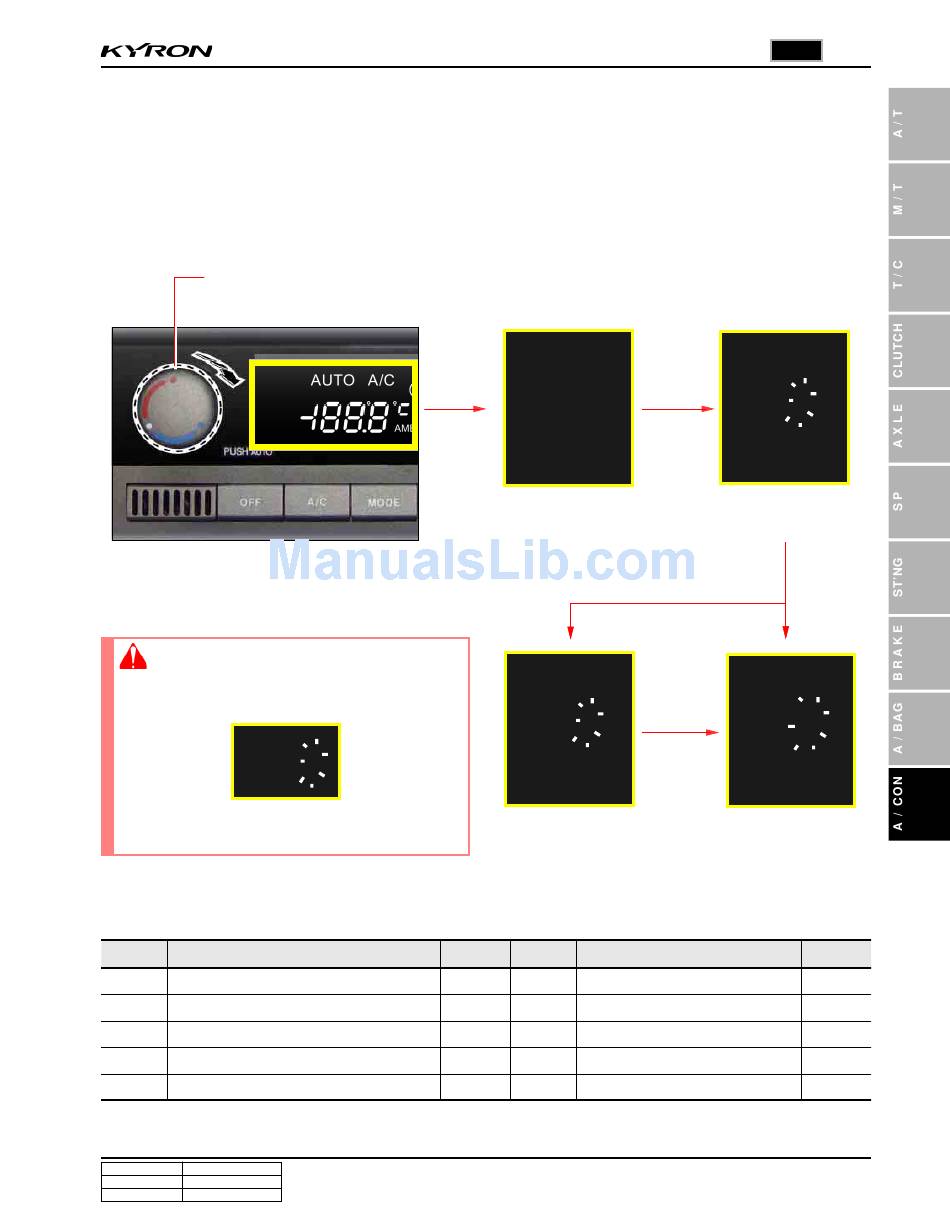

1) Slightly turn the TEMP dial to the right to set in the trouble diagnosis step 2
NOTICE
• The symbol "-" in front of step number "2" means
a short circuit of the blinking sensor.
-21 -21
-21
-21 -21
Short-circuit in the ambi-
ent air temperature sensor
Trouble Code
Code Malfunction
0 VDF segments are OK
1 Defective ambient temperature sensor
2 Defective interior temperature sensor
3 Defective duct temperature sensor
4 Defective intake sensor
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
2 2 2 2 2
2) Indication of Step 2.
Starting self diagnosis
When two sensors are
2 1 2 1 2 1 2 1 2 1
First sensor failure
code blinks twice
Remark Code
5 Defective sun sensor
6 Check Air mix door
7 Defective humidity sensor
8
9
6810
10 ~ 20
seconds
2 1 2 1 2 1 2 1 2 1
3) Sensor failure
code blinking
defective
2 5 2 5
2 5 2 5 2 5
Second sensor failure
code blinks twice
Malfunction Remark
-
-
