Intake Temperature Sensor
The Intake Sensor outputs the compressor ON or OFF signal to ECU to prevent evaporator from freezing. The
sensing part of the thermistor is the evaporator fin contact type.

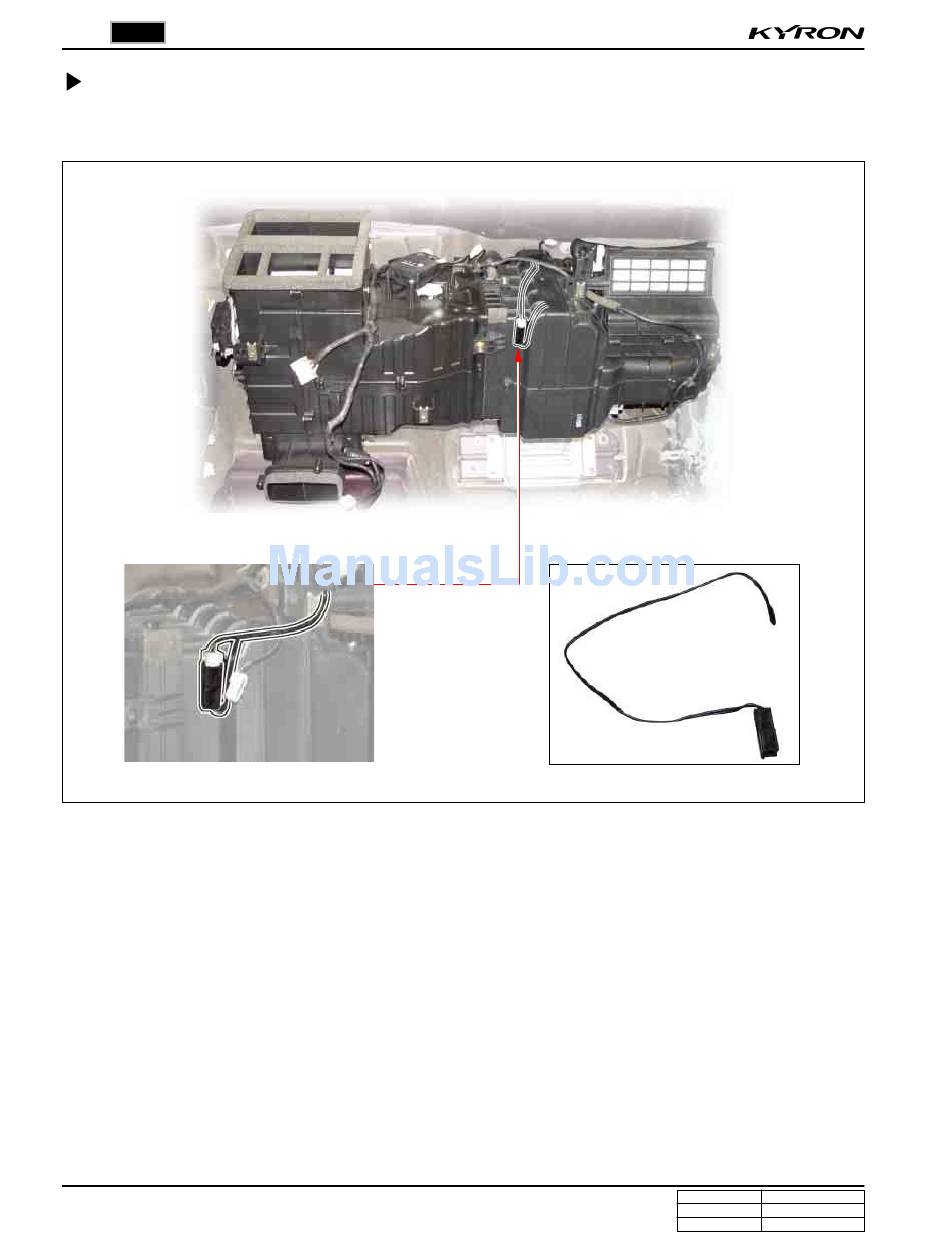

Intake Sensor location
If the air conditioner does not turn on, check as below.
1. Remove the Intake Sensor and measure the voltage between terminal No. 1 and 2 on the connector.
2. Check whether the output voltages (ON: approx. 12 V, off: 0 V).
3. If the voltage value is out of the specified value, replace the Intake Sensor. If the circuit is in normal condition,
check as below.
4. Turn the ignition switch to ON position and turn on the air conditioner by pressing the A/C button. And measure the
voltage between terminal A12 and A11 on the FATC controller connector. (standard: approx. 12 V)
5. If the voltage value cannot be measured, check the circuit for open. If the measured value is within the specified
range, replace the FATC controller.
