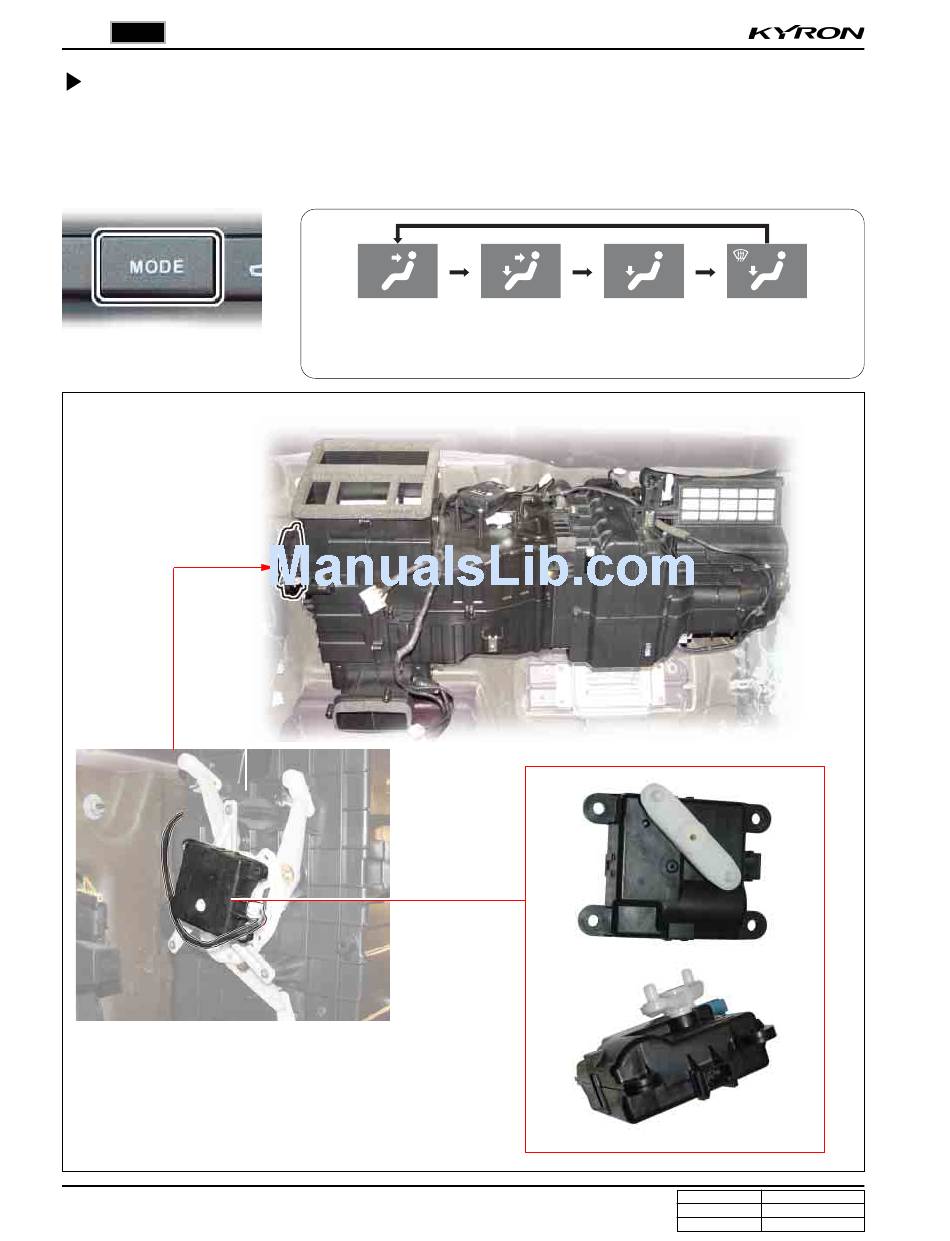

Mode Door Actuator
The mode door actuator is an actuator that closes, opens and adjusts the mode door for VENT, FOOT and DEF
mode to change the air flow directions according to FATC controller. Under the FATC controller AUTO mode, it stays
on DEF mode until the engine coolant temperature reaches at normal operating level and the mode is changed as
below when the MODE switch is pressed.
Mode door actuator
AIR CONDITIONING SYSTEM
KYRON SM - 2005.09
The air flows The air flows
towards face. towards face
(Vent mode) and foot.
(Bi-level mode)
The air flows The air flows towards
towards foot. front windshield and foot.
(Foot mode) (Defroster and foot
mode)
