SWAS: Steering Wheel Angle Sensor
Location

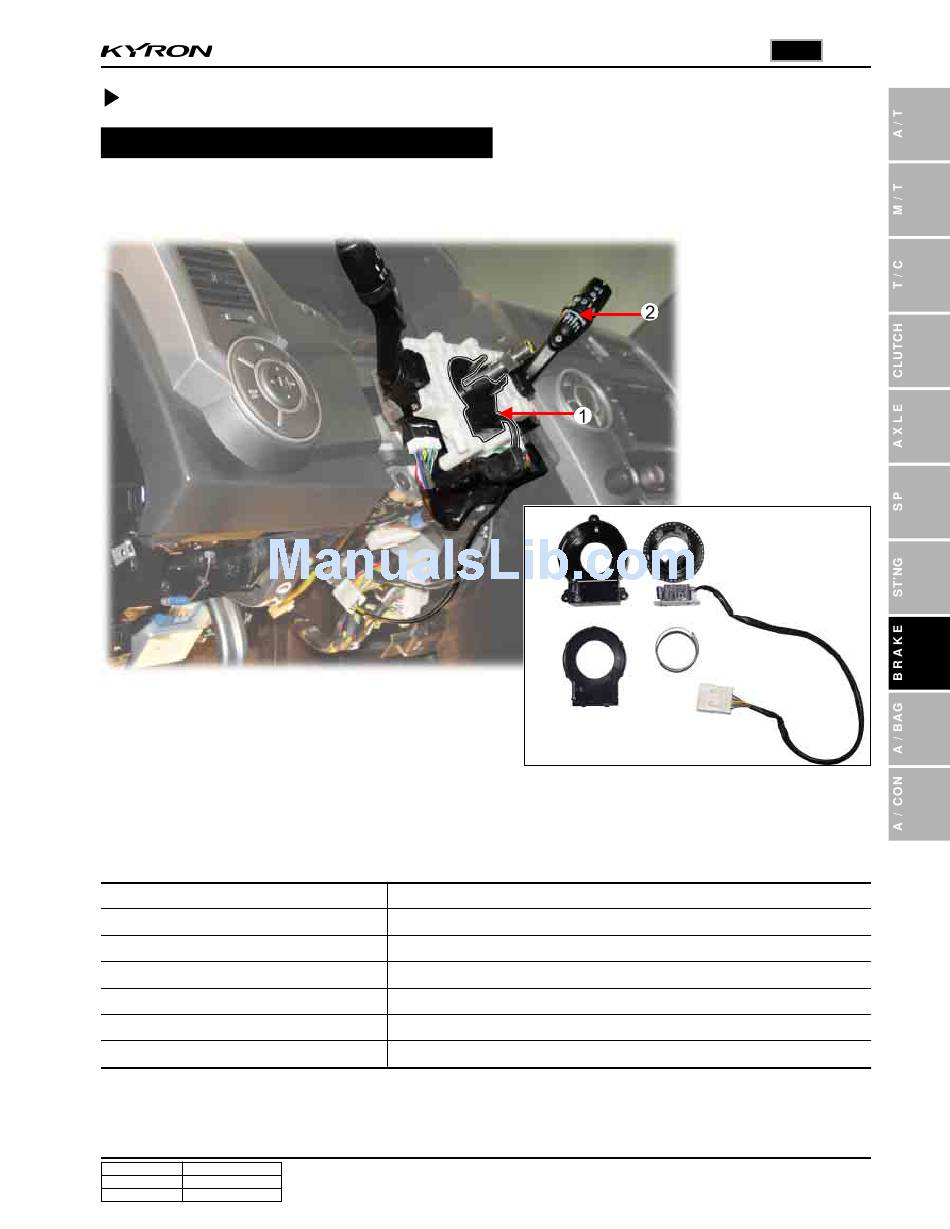

SWAS is installed at the bottom of air bag clock spring in steering handle and sends the steering angle signal to
ESP HECU.
1. SWAS (Steering Wheel Angle Sensor)
2. Combination switch assembly
Specifications
Working voltage
Max. output current
Detected max. angular velocity
Working temperature
Supplying voltage
Output voltage (HI)
Output voltage (LO)
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
9 ~ 16V
10 mA
1500°/S
- 30 ~ 75°C
9 ~ 16V (battery voltage)
Approx. 3.50V (3.0 ~ 4.1V)
Approx. 1.50V (1.3 ~ 2.0V)
