2. The auto washer switch output is overridden during the washer coupled wiper operation.
3. The auto washer switch input is overridden during the auto washer coupled wiper operation.
4. The auto washer switch input is overridden during the rain sensor coupled wiper or vehicle speed sensitive INT
wiper operation.
5. When the auto INT switch input is received during the auto washer operation, the auto washer operation stops
and the auto INT operation is activated.

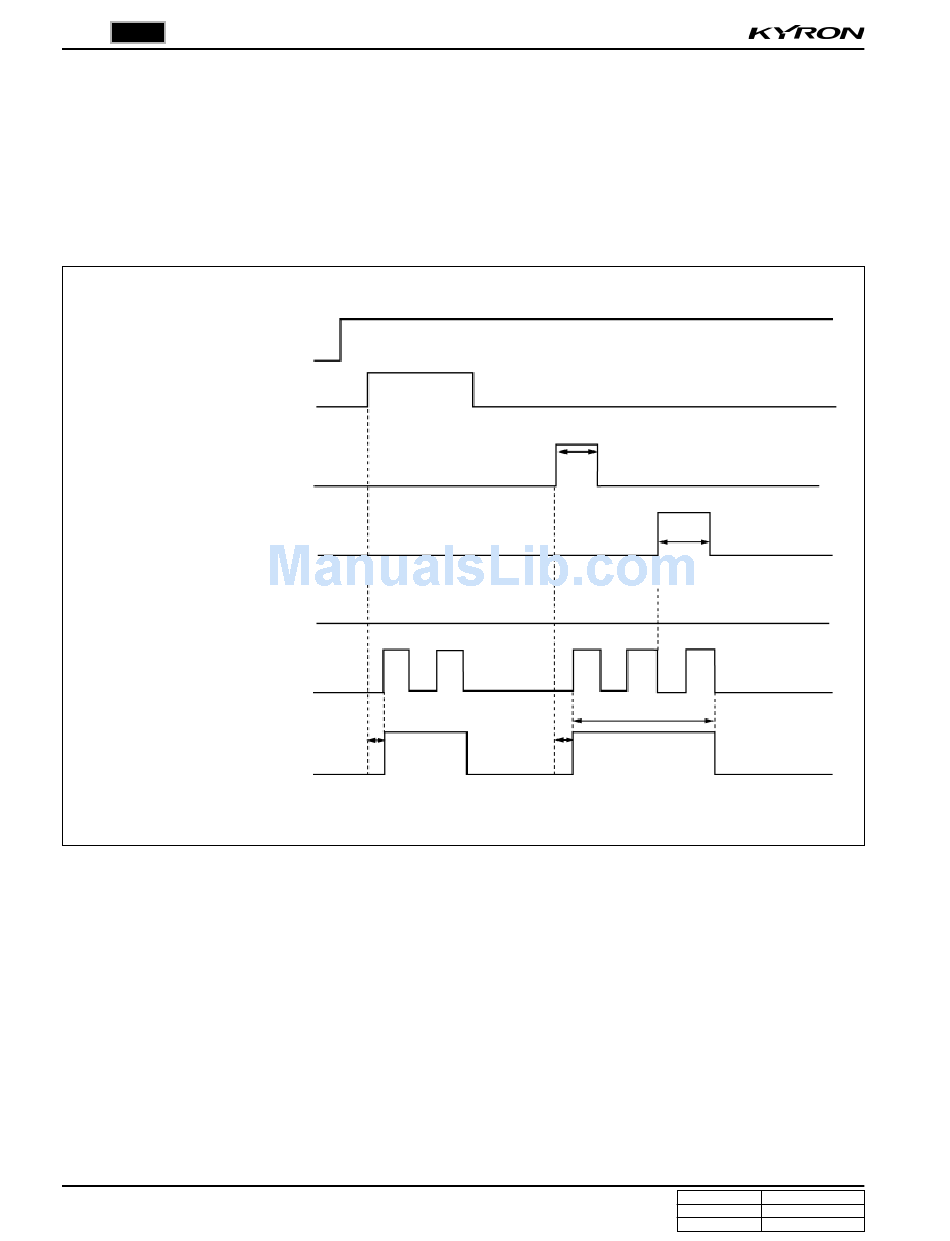

KEY IN & IGN2
SW
INT AUTO
WITCH
FRONT
WASHER SW
AUTO
WASHER SW
WASHER MOTOR
OUTPUT
WIPER MOTOR
PARKING
WIPER LOW
RELAY
RKSTICS (REKES + STICS) / STICS
KYRON SM - 2005.09
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
T3
OFF
T1: over 0.6 sec
T1
T4
T3
T2: over 100 ms T3: within 0.3 sec
T2
T4: 3 cycles
