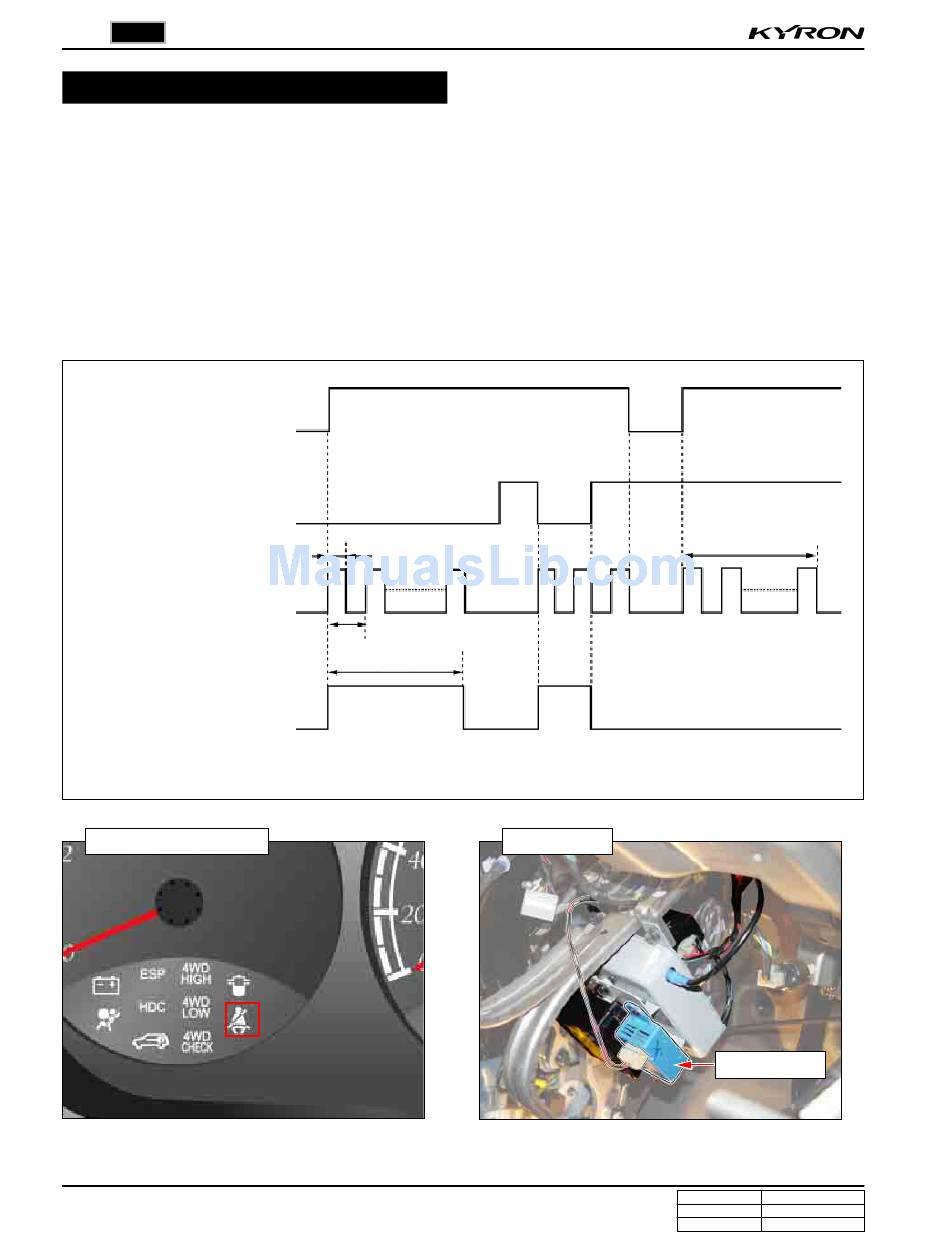

Seat Belt Warning
1. The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds when turning the
ignition key to "ON" from "OFF".
If the seat belt is fastened before turning the ignition key to the the "ON" position, the warning light in the indicator
display blinks, however, the chime buzzer does not sound.
2. The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning the ignition switch
to the "OFF" position.
3. The chime buzzer stops and the seat belt warning light stays on for the specified duration when fastening the
seat belt during the warning operation.
4. The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when unfastening the
seat belt during fastening operation while the ignition key is the "ON" position.
IGN1 SW
FASTEN
S/BELT SW
UNFASTEN
S/BELT WARN
LAMP
C/BUZZER
Seat Belt Warning Lamp
The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds when turning the
ignition key to "ON" from "OFF". After fastening the seat belt, the chime buzzer stops.
RKSTICS (REKES + STICS) / STICS
KYRON SM - 2005.09
ON
OFF
T3
ON
OFF
T1
T2
ON
OFF
T1: 0.6 sec T2: 6.0 sec T3: 0.3 sec
Chime Buzzer
