4. COIL SPRING & SHOCK ABSORBER ASSEMBLY
Preceding Work
Remove the tire and the upper arm.

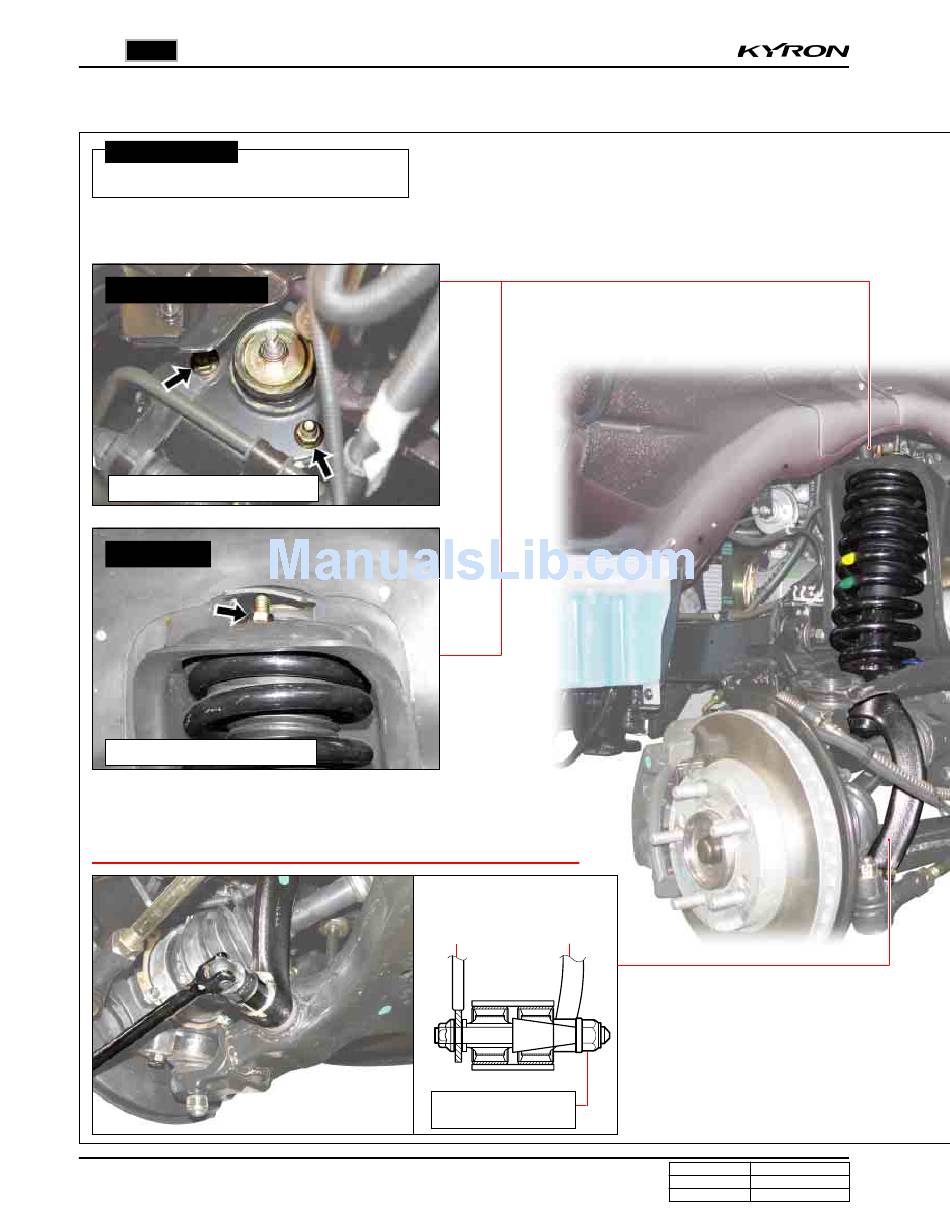

1. The upper mounting nuts of the coil spring/shock absorber assembly (14 mm - 3 EA)
: At first, unscrew the two upper mounting nuts in engine compartment.
Engine Compartment
Tightening torque: 60 ~ 80 Nm
Wheel House
Tightening torque: 60 ~ 80 Nm
: Unscrew the upper mounting nut (14 mm) under the
wheel house.
2. The lower nut of the coil spring/shock absorber yoke (24 mm - 1 EA)
SUSPENSION
KYRON SM - 2005.09
Shock ab-
Stabilizer sorber yoke
link (12 mm) (24 mm)
Tightening torque:
150 ~ 170 Nm
: Unscrew the lower nut of coil
spring/shock absorber yoke
from the lower arm. Do not com-
pletely remove the nut.
