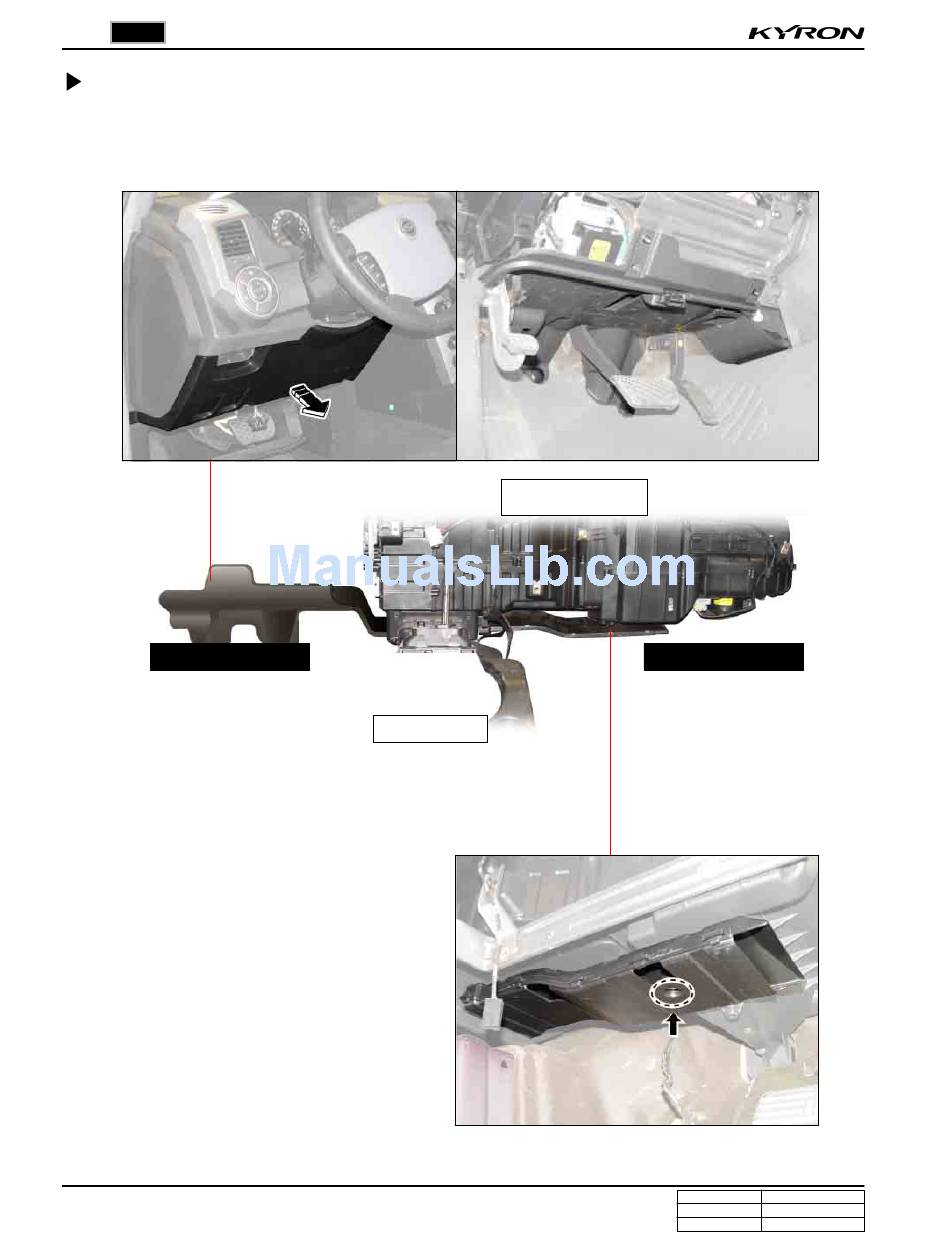

Front Floor Air Duct
1. Driver side lower air duct is installed behind the lower instrument panel. Remove it according to the procedures for
removal of lower panel.
Floor air duct (LH)
2. Passenger side floor air duct is located under the
air conditioner module.
AIR CONDITIONING SYSTEM
KYRON SM - 2005.09
Air conditioner
module assembly
Floor air duct
Floor air duct (RH)
Mounting screw
