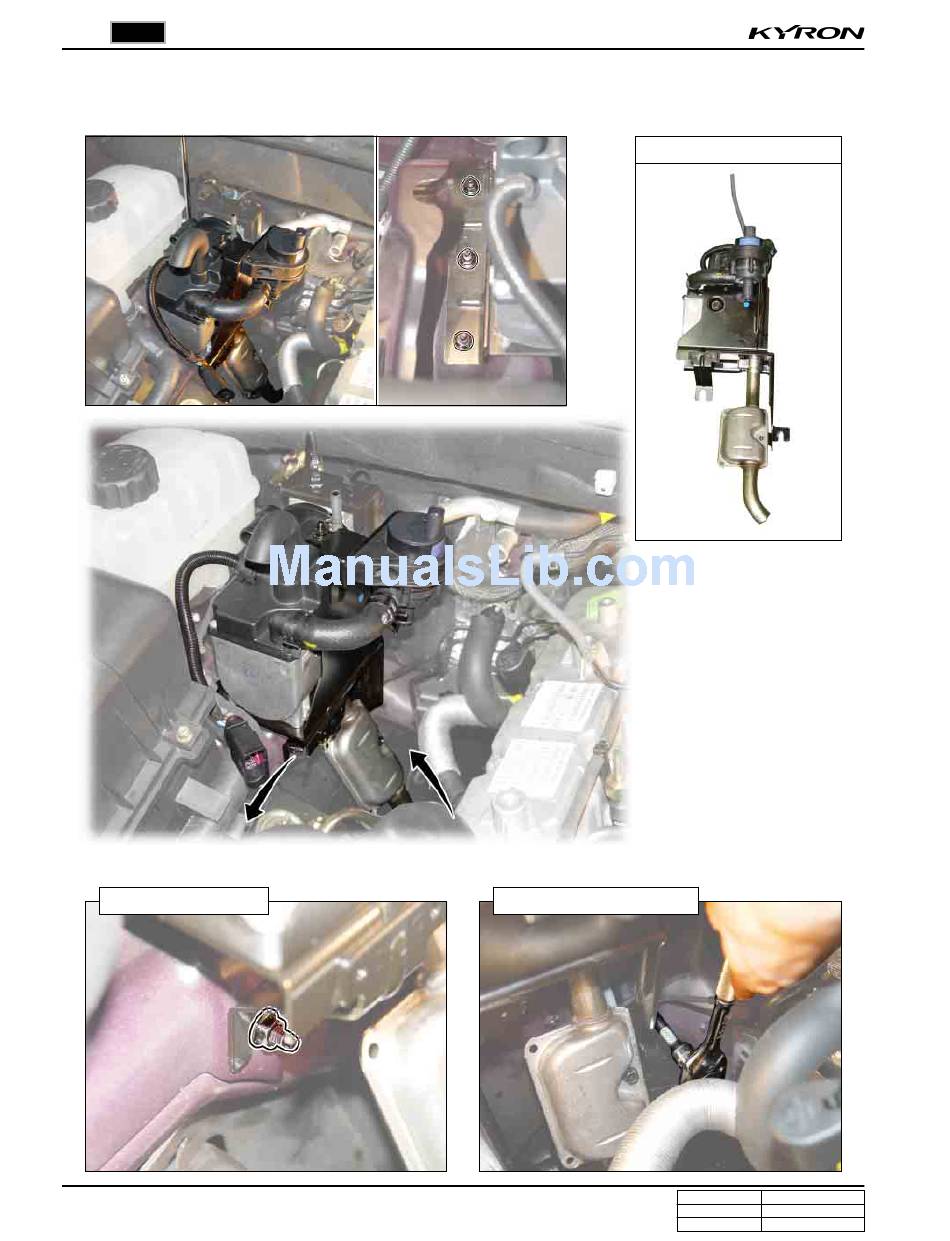

4. Unscrew five bracket nuts (10 mm) and remove the FFH coolant circulation pump assembly.

1) Unscrew three mounting nuts at bottom of coolant reservoir.

2) Unscrew the mounting nuts from the FFH coolant circulation pump.

Front Mounting Nut

AIR CONDITIONING SYSTEM

KYRON SM - 2005.09

FFH Assembly

FFH Exhaust Pipe Side
