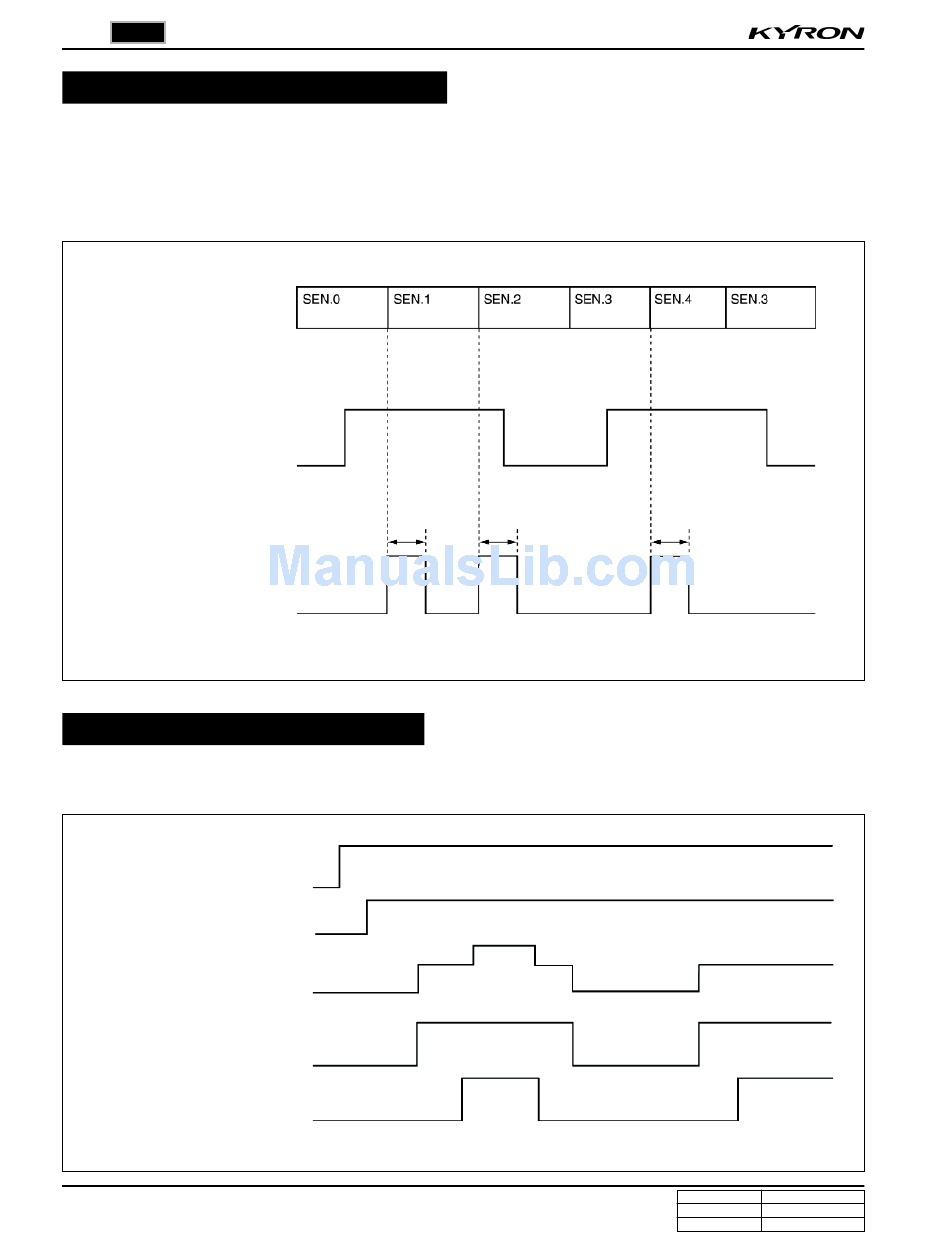

Rain Sensing Sensitivity Control
1. The wiper relay (LO) is turned on and the wiper motor runs one cycle when the volume sensitivity is increased
(ex: from 0 to 1) (while the ignition key is in "ON" position, the wiper switch is in "AUTO" position, and the wiper
motor is in "Parked" position). However, the wiper motor can be operated only when the rain sensor detects the
"Rain Detected" signal.
* If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs only one cycle.
SENSITIVITY
Rain
Detected
RAIN
SENSOR to
RKSTICS
OFF
ON
WIPER
LOW RELAY
OFF
Auto Light Control
1. Only when the auto light switch is in "AUTO" position, control the tail lamp and headlamp by communicating with
the rain sensor (while the ignition key is in "ON" position).
ON
KEY IGN2
SW
OFF
AUTO
AUTO LIGHT
OFF
SW
LIGHT
RAIN SENSOR
TAIL
Data
OFF
ON
TAIL LAMP
RELAY
OFF
ON
HEAD LAMP
RELAY
OFF
RAIN SENSOR UNIT (WITH AUTO RIGHT SENSOR)
