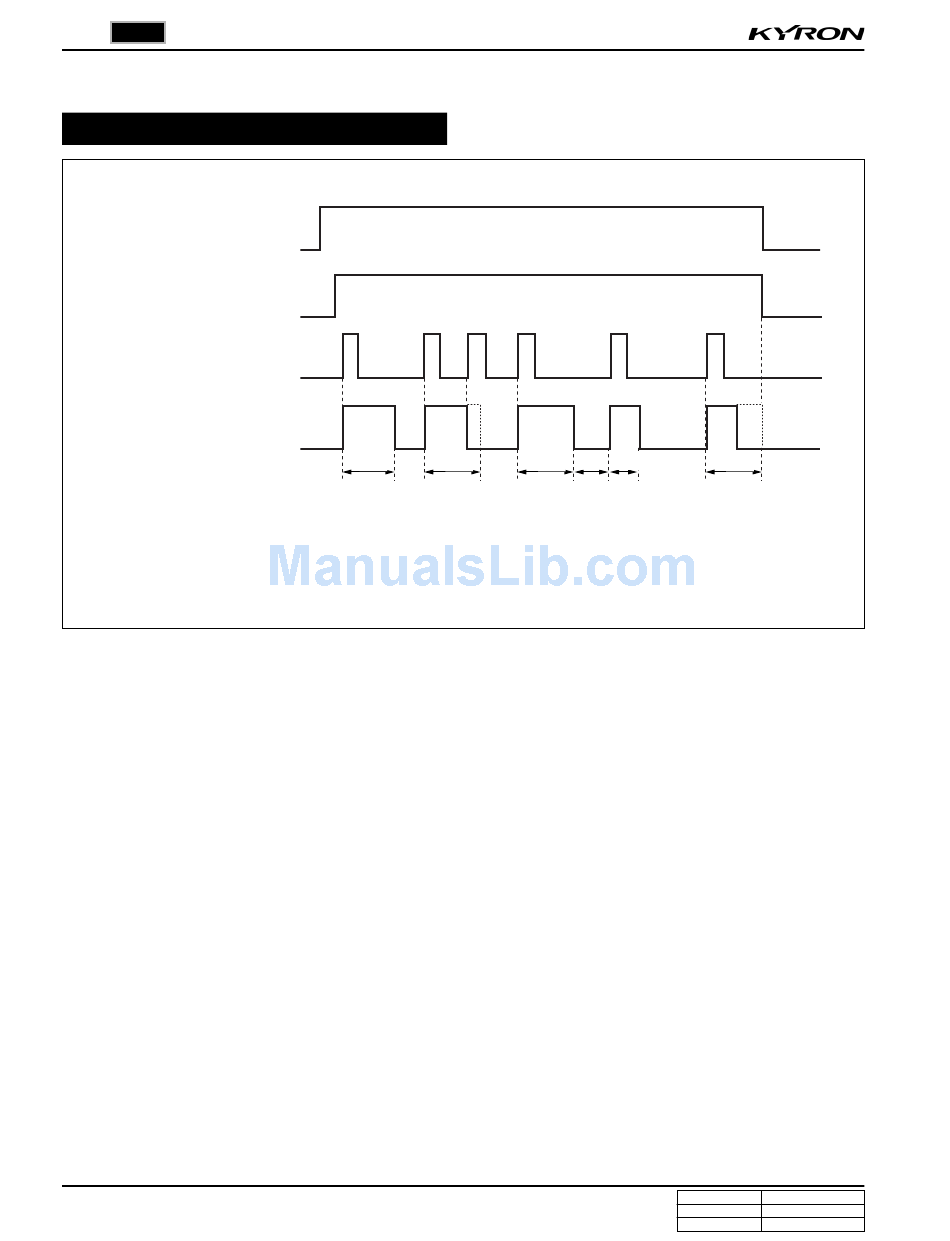

Timing Chart
ON
IGN2 SW
OFF
HIGH
ALT "L"
LOW
ON
Windshield
defogger SW
OFF
ON
Defogger Relay
OFF
ALT "L" = 9 V ± 1 V
(Key ON) & ALT = ON
SWITCHES / ELECTRIC DEVICES
KYRON SM - 2005.09
T1 T1 T1
T1: 12 min. T2: within 10 min.
T2 T3 T1
T3: 6 min. ON: IGN2
OFF: IGN2 (Key ON) or ALT = OFF
