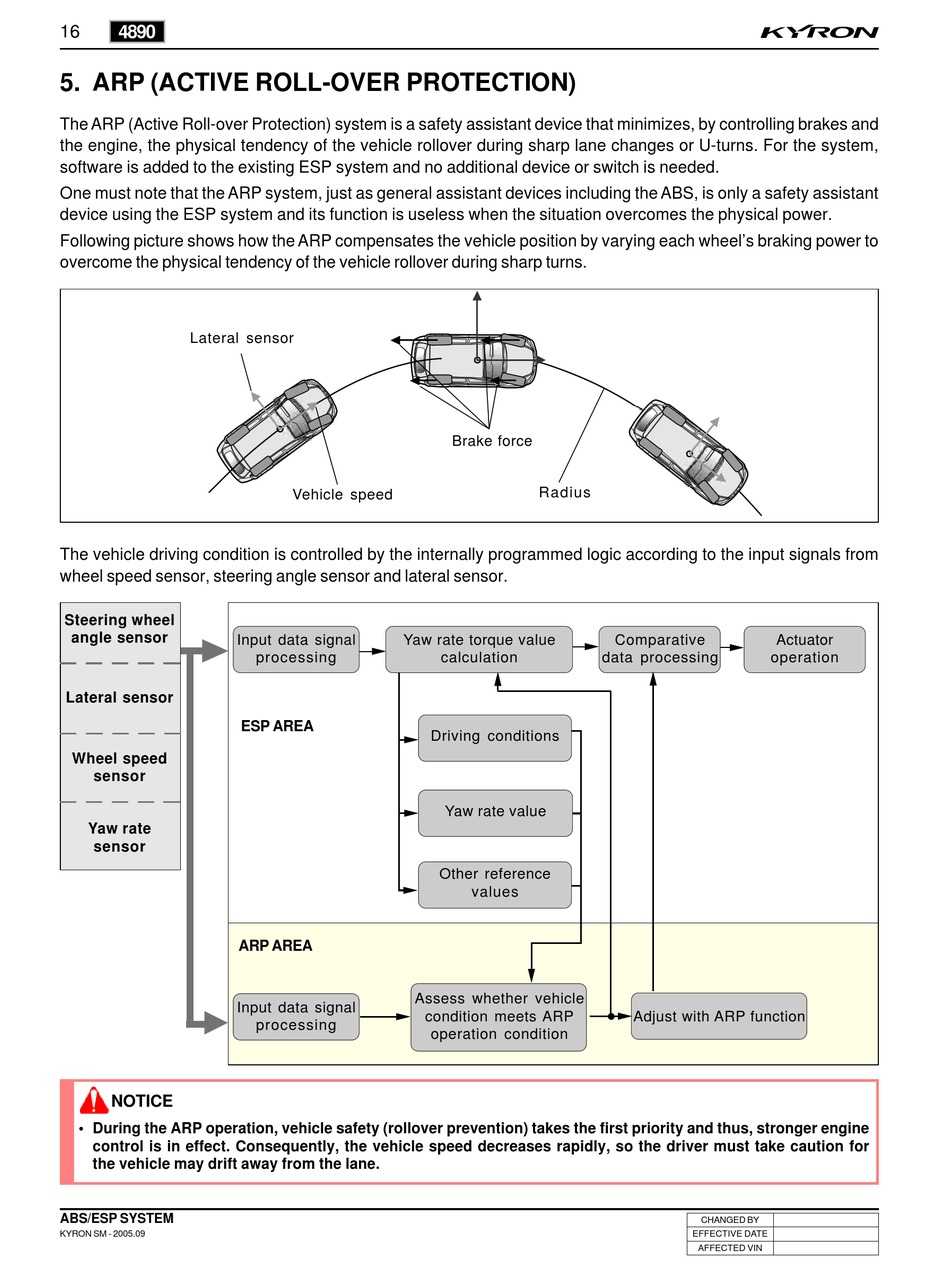

5. ARP (ACTIVE ROLL-OVER PROTECTION)

The ARP (Active Roll-over Protection) system is a safety assistant device that minimizes, by controlling brakes and

the engine, the physical tendency of the vehicle rollover during sharp lane changes or U-turns. For the system,

software is added to the existing ESP system and no additional device or switch is needed.

One must note that the ARP system, just as general assistant devices including the ABS, is only a safety assistant

device using the ESP system and its function is useless when the situation overcomes the physical power.

Following picture shows how the ARP compensates the vehicle position by varying each wheel's braking power to

overcome the physical tendency of the vehicle rollover during sharp turns.

Lateral sensor

The vehicle driving condition is controlled by the internally programmed logic according to the input signals from

wheel speed sensor, steering angle sensor and lateral sensor.

Steering wheel

angle sensor

Input data signal

Lateral sensor

Input data signal

• During the ARP operation, vehicle safety (rollover prevention) takes the first priority and thus, stronger engine

control is in effect. Consequently, the vehicle speed decreases rapidly, so the driver must take caution for

the vehicle may drift away from the lane.

ABS/ESP SYSTEM

KYRON SM - 2005.09

Vehicle speed

Yaw rate torque value

Driving conditions

Other reference

Assess whether vehicle

condition meets ARP

operation condition

data processing

Yaw rate value

Adjust with ARP function
