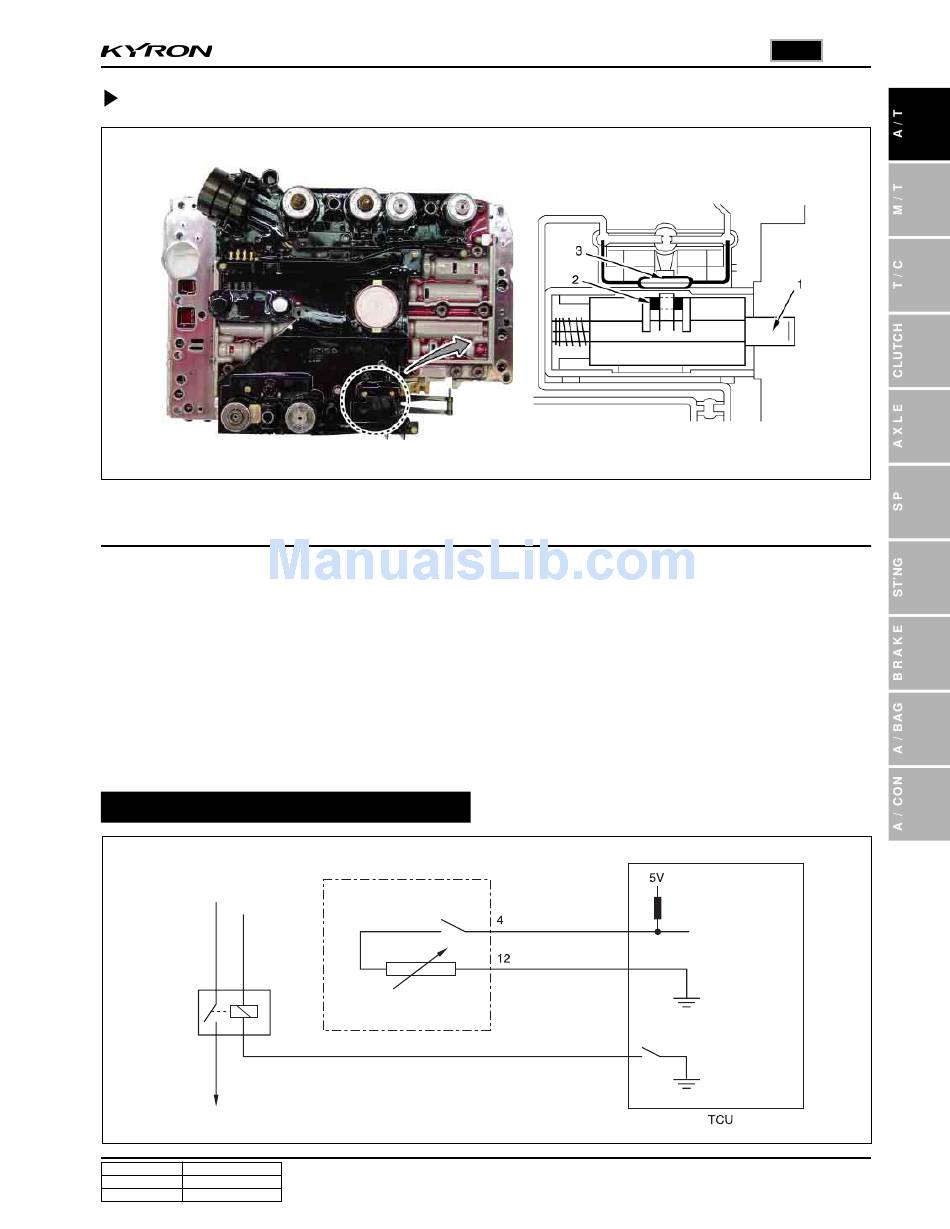

Starter Lock-out Switch
1. Plunger
2. Permanent magnet
Function
The starter lock-out switch is installed beside the oil temperature sensor and is actuated by a cam rail, which is
located on the latching plate.
In the selector lever positions "P" and "N", the permanent magnet is moved away from the reed contact. This opens
the reed contact and the transmission control module receives an electrical signal. The transmission control module
activates the starter lock-out relay module. This closes the electrical circuit to the starter in selector lever positions
"P" and "N" via the starter lock-out relay module. In other words, when the selector lever is in driving positions, the
switch contact is closed and the starter cannot be operated.
Circuit Diagram
B+
ST
30 86
Start
Relay
87 85
Start motor
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
3. Reed contact
Start lock out switch
Oil temperature sensor
B7 (34)
AD converter
B8 (33)
A12 (7)
AUTO TRANSMISSION
