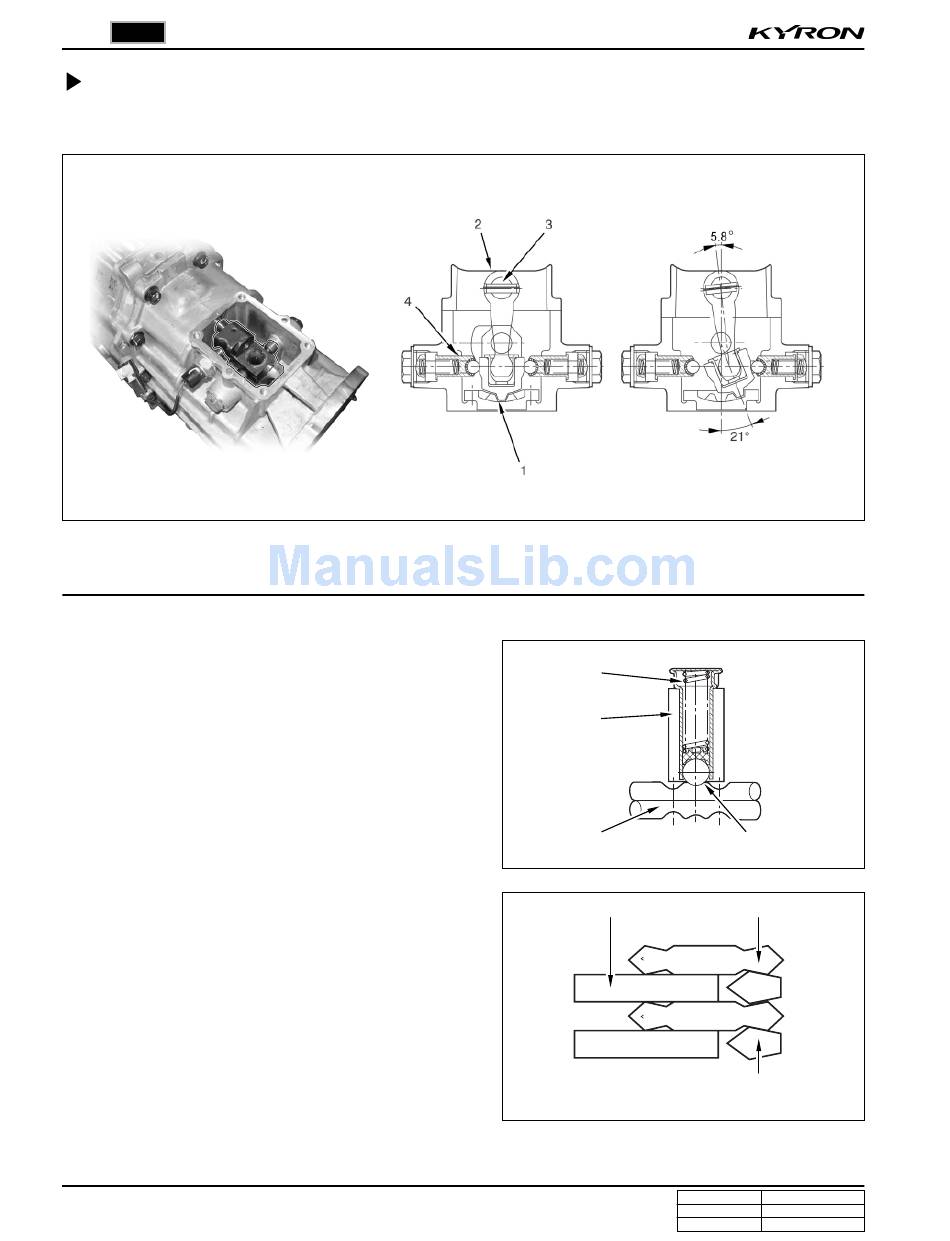

Offset Lever and Rolling Plunger
To make the next shift easier, the offset lever applies a reaction force to shift lever toward center position of gear
selection gate after a gear has been selected.
1. Offset lever
2. Shift lever
1. Shift check device
It determines the shift fork position (N or each gear) and
gives a detent movement to notice a shift lever seating when
operating the shift lever.
Also, it prevent the selected gear from getting out of its
meshed position.
2. Gear jump out locking device
It prevents the shift lever is beyond the correct shift position
while shifting.
MANUAL TRANSMISSION
KYRON SM - 2005.09
3. Shift lever
4. Rolling plunger (rolling plunger return spring and ball)
Detent pin
Top cover
Shift shaft
Hub spline
Set ball
Sleeve spline
Clutch gear
spline
