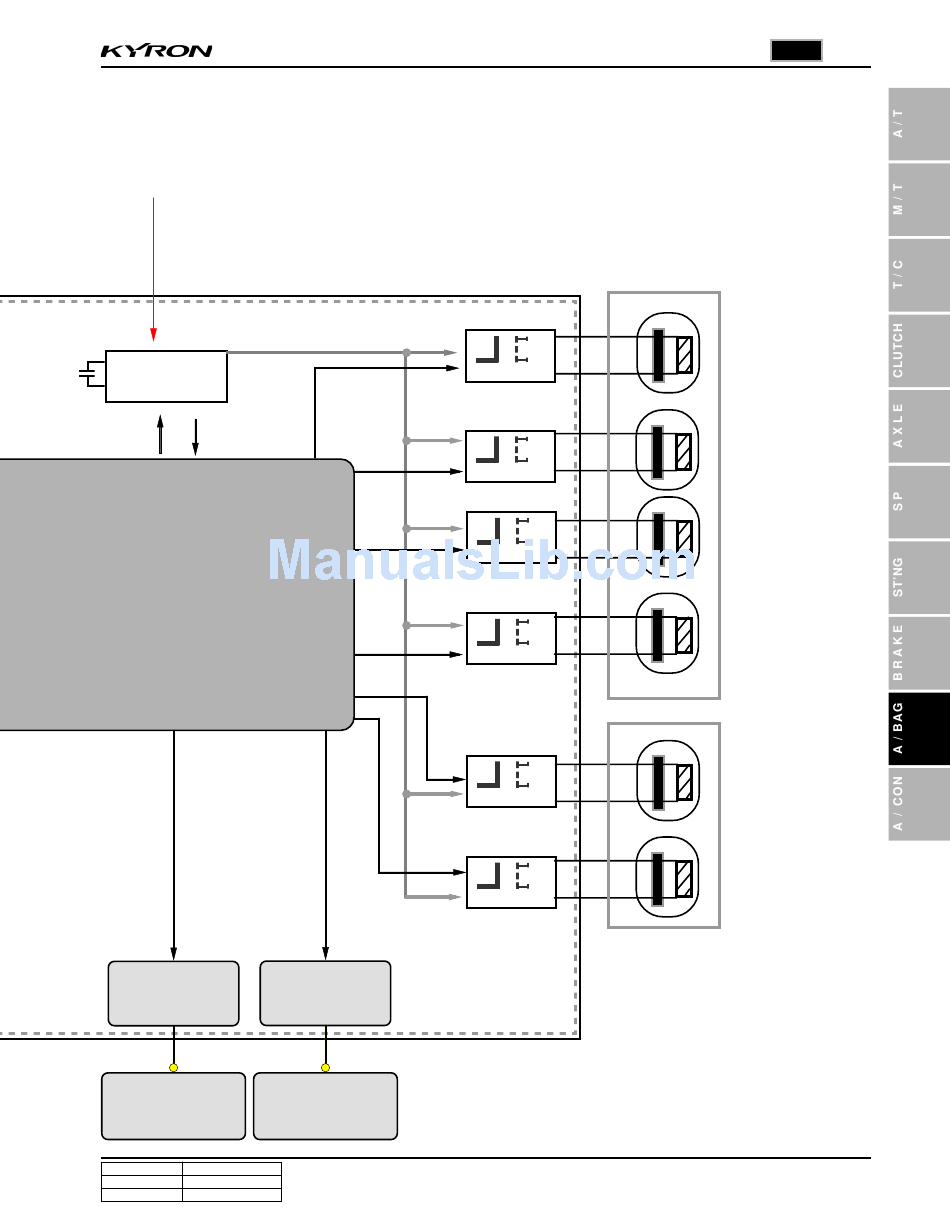

The watchdog monitors the micro controller, the air bags,
and the seat belt pretensioners. When any error occurs,
it turns on the air bag warning lamp.
Watch Dog
Micro Controller
(MI-COM)
Communicating Communicating
With the Curtain With the Curtain
Air Bag Sensor Air Bag Sensor
The Collision G The Collision G
Sensor for the Sensor for the
Curtain Air Bag (LH) Curtain Air Bag (RH)
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
When the front air bags deploy, the driver's air bag and
the front passenger's air bag deploy simultaneously and
their seat belt pretensioners also simultaneously retract
their seat belts.
The air bag unit monitors conditions of the air bags and
the seat belt pretensioners. When any error occurs, it
stores the failure diagnostic code or turns on the air bag
warning lamp on the instrument panel.
Check
Check
Check
Check
Check
Check
The collision G sensors for the curtain air bags are installed at the
bottom of left and right B-pillars. Each measures deceleration rate at
time of collision and supplies information about the collision to the air
bag unit. Each sensor measures the G value from its side and trans-
mits the decesion to its air bag unit.
8810
Driver's air bag
module
Passenger's air
bag module
Driver's
pretensioner
Passenger's
pretensioner
Curtain air bag
module (LH)
Curtain air bag
module (RH)
Each curtain air bag independently op-
erates from the front air bags. Depend-
ing upon the severity of impact, only the
left or right air bag may deploy.
