SSANGYONG Kyron Repair Manual page 146

22
3170

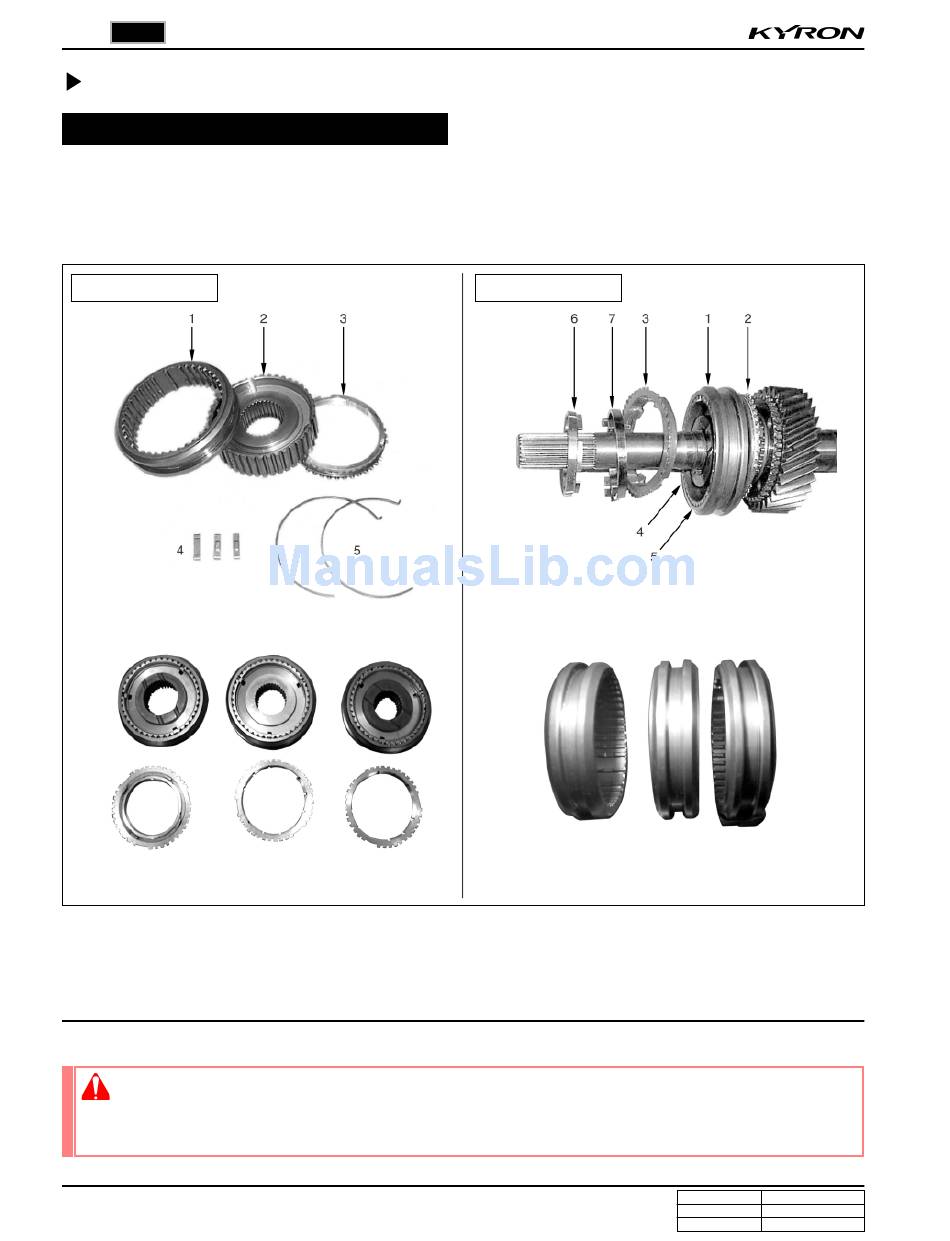

Synchronizer
Composition
It consists of synchronizer hub, sleeve, ring, key and spring (1/2, 5/R, and 3/4 synchronizer are different from each other).
1. 3/4 and 5/R shift: Single cone type
2. 1/2 shift: Double cone type - Improving the capacity to bigger engine torque of 1/2 shift (added synchronizer inner
cone and middle cone)
Single Cone Type
1/2 shift
1. Synchronizer sleeve
2. Synchronizer hub
3. Synchronizer ring
4. Synchronizer key
NOTICE
• Be careful not to mix up the 1/2 shift synchronizer sleeve with 3/4 or 5/R shift synchronizer sleeve.
• The 3/4 synchronizer hub also different from 1/2 and 5/R synchronizer hub (different oil gallery).
MANUAL TRANSMISSION
KYRON SM - 2005.09
3/4 shift 5/R shift
Double Cone Type
1/2 shift 3/4 shift
5. Synchronizer key locking ring
6. Synchronizer inner cone
7. Synchronizer middle cone
5/R shift
