Functions of Full Automatic Air Conditioner Controller (ll)

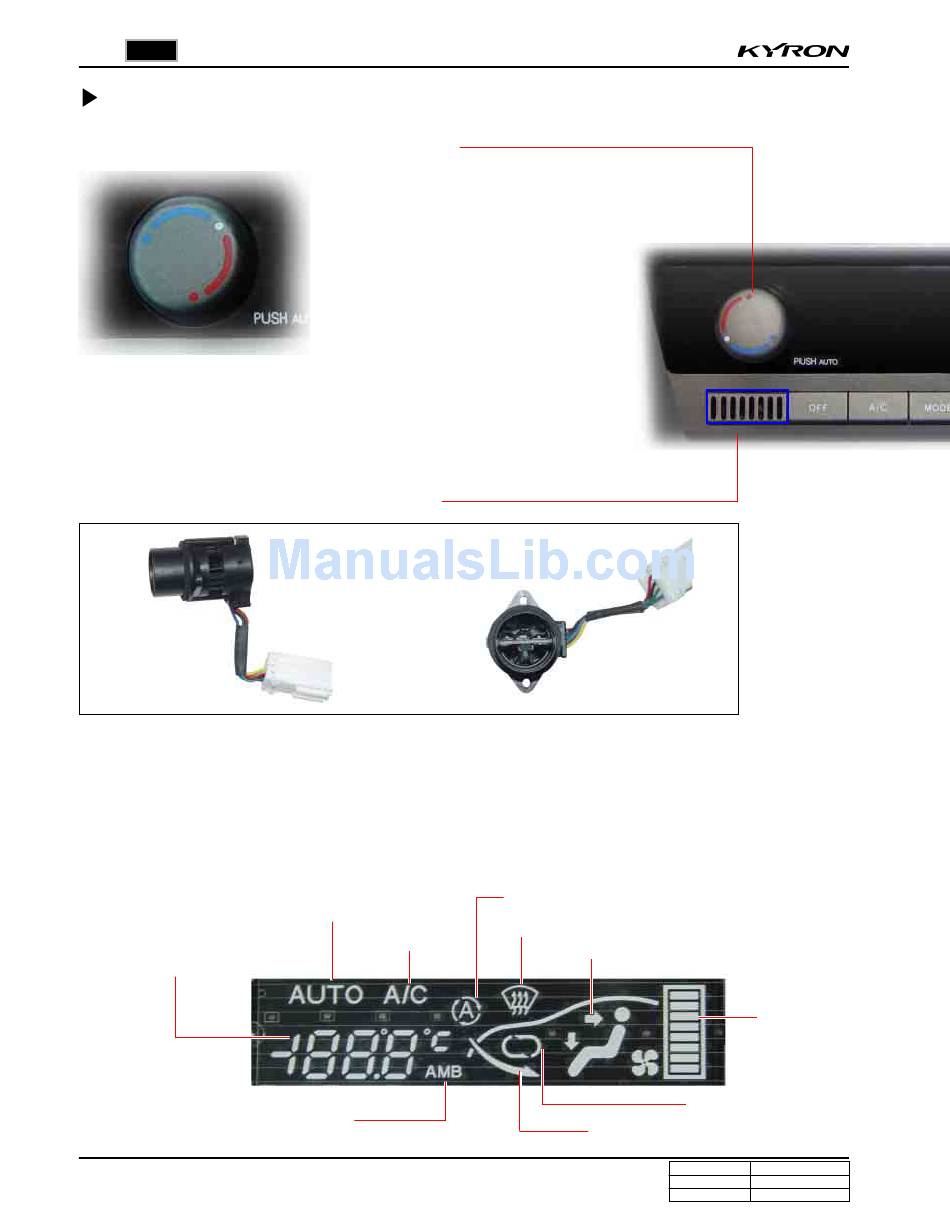

Temperature Control Switch and AUTO Button
When pressing the air conditioner AUTO mode and temperature control dial
switch, the system operates in AUTO mode and can set the desired tem-
perature (18 ~ 32°C) by rotating. To get the desired temperature, the air
conditioner controls compressor, door mode, air source door, air mix door
and blower motor automatically.
Active Incar/Humidity Sensor (AIH Sensor)
The AIH sensor is installed on the air conditioner controller unit. It is a sensor that detects interior
temperature and humidity.
Display Window (VFD)
Each switch mode appears as a symbol on the fluorescent display and malfunction of each sensor
in air conditioner control system is also displayed.
AQS mode
Auto mode
Defroster
Temperature (ambient
A/C operation
air temperature, interior
Air flow direction
set temperature)
Fan speed
Air recirculation
Indicates the ambient
Fresh air
temperature is displayed
