INSTRUMENT CLUSTER

The instrument cluster sends and receives the data through CAN communication.
The HDC warning light and the engine hood open warning light are newly introduced.

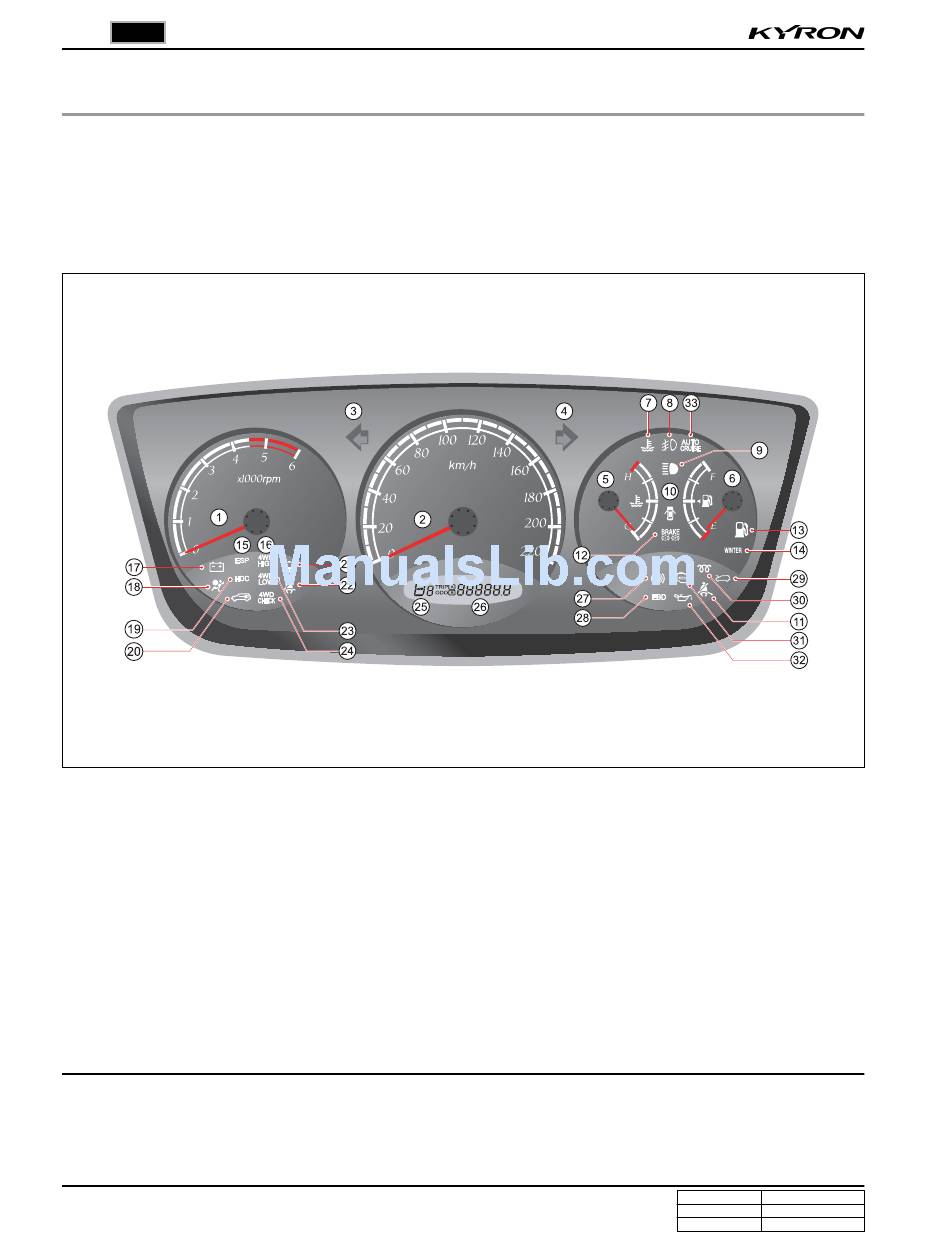

1. DESCRIPTIONS OF INDICATOR DISPLAY

1. Tachometer
2. Speedometer
3. Left turn signal indicator
4. Right turn signal indicator
5. Engine coolant temperature gauge
6. Fuel gauge
7. Engine overheat warning light
8. Fog lamp indicator
9. High beam indicator
10. Door ajar warning light
11. Sea belt reminder (passenger's
seat)
CLUSTER
KYRON SM - 2005.09
12. Brake warning light
13. Low fuel level warning light
14. Winter mode indicator
15. ESP warning light
16. 4WD HIGH indicator
17. Battery charge warning light
18. Air bag warning light
19. HDC indicator
20. Immobilizer indicator
21. Water separator warning light
22. Seat belt reminder (driver's
seat)
23. 4WD LOW indicator
24. 4WD CHECK warning light
25. Auto shift indicator (for automatic
transmission)
26. ODOmeter/ Trip odometer
27. ABS warning light
28. EBD warning light
29. Engine hood open warning light
30. Glow indicator
31. Engine check warning light
32. Engine oil pressure warning light
33. Auto cruise indicator
