Function
The plastic Electric Hydraulic Control Unit (EHU) is installed on the top of valve body. Speed sensor, start lock-out
switch and oil temperature sensors are integrated in EHU.
The 13-pin connector is connected to automatic transmission via PCB.
Three up/downshift solenoid valves are installed on the top of hydraulic control unit.
The solenoid valves are sealed with two O-rings against the valve body. The solenoid valves are pressed against
the valve body by the leaf springs.
Characteristics of up/downshift solenoid valve
The solenoid valve remains energized and therefore open
until the shift process is completed according to the engine
and transmission conditions. If a solenoid valve is energized,
it opens and transmits the shift valve pressure to the corre-
sponding command valve.
Working current
Operating distance
Resistance

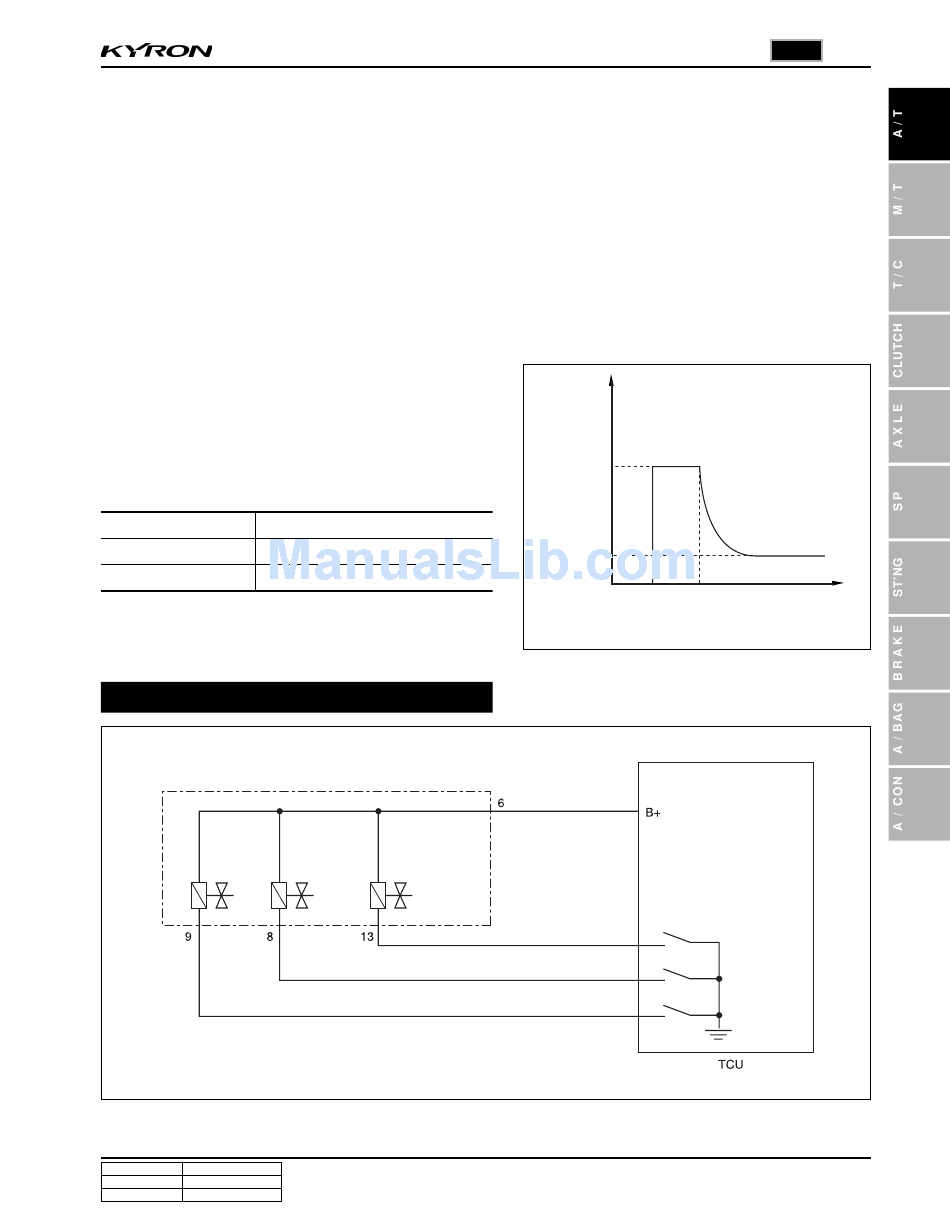

Circuit Diagram
3-4 shift S/V
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
1.5 ~ 2.0 A
0.2 mm
3.91 ± 0.12 Ω (25°C)
2-3 shift S/V 1-2, 4-5 shift S/V
I
(Current)
2.5A
1.5A
6 0 m s
1 cycle time: approx 20 ms
