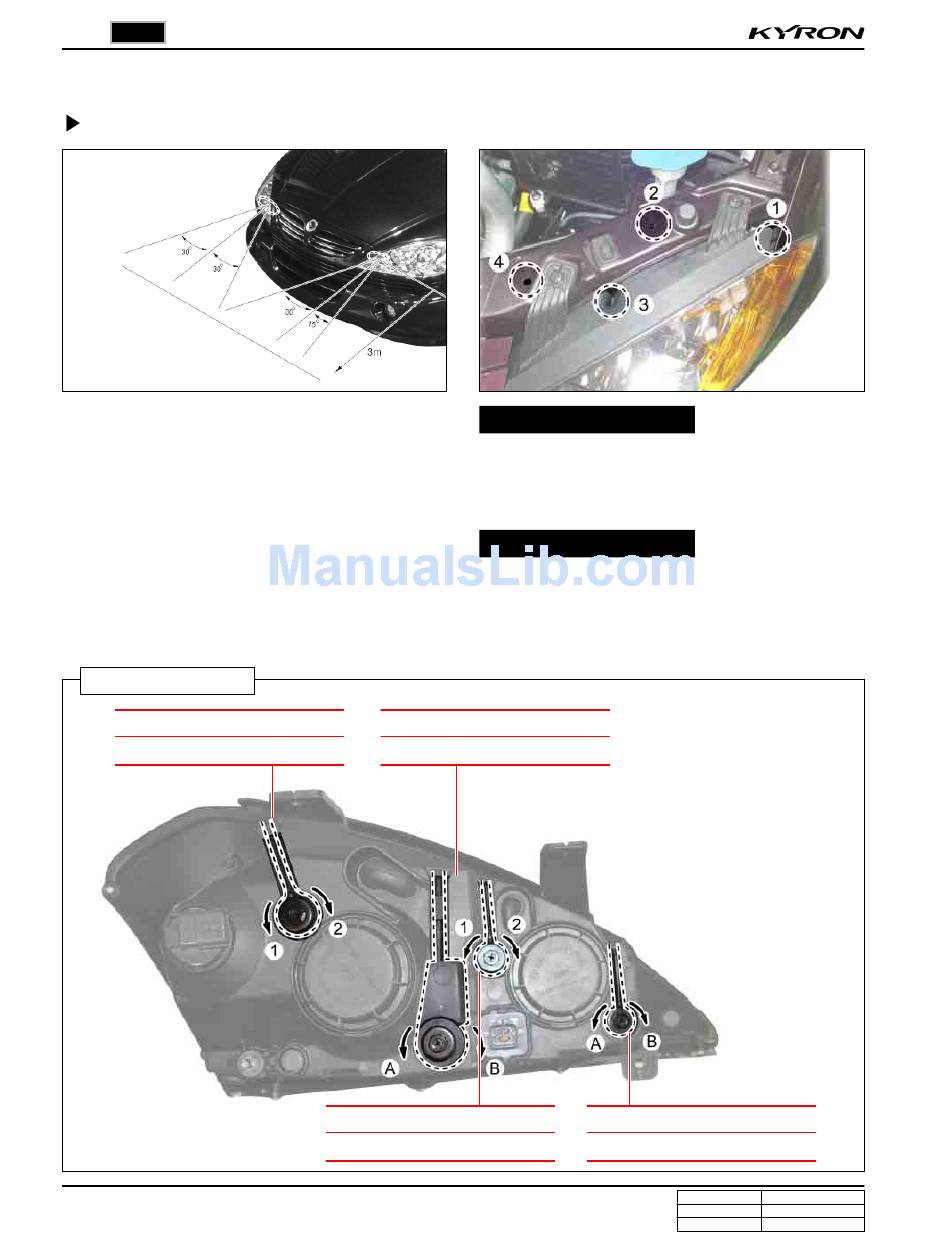

2. AIMING AND ADJUSTMENT OF FRONT LAMP

Headlamp Aiming

Headlamp Aiming
: Adjust the headlamp aiming while turning the aiming
screws (up/down/left/right) in turn with a screwdriver.
Headlamp aiming requirements:
1. parking on a flat surface
2. specified tire pressure
3. one passenger (driver, 75 kg),
4. spare tire and OVM tools loaded (unlade all other
loads)
Adjustment Direction
Low Beam
1: Left / 2: Right
LAMP
KYRON SM - 2005.09
Adjustment of Low Beam
No. 1 adjustment hole: Up and Down
No. 2 adjustment hole: Left and Right
Adjustment of High Beam
No. 3 adjustment hole: Up and Down
No. 4 adjustment hole: Left and Right
Low Beam
A: Up / B: Down
High Beam
1: Left / 2: Right
High Beam
A: Up / B: Down
