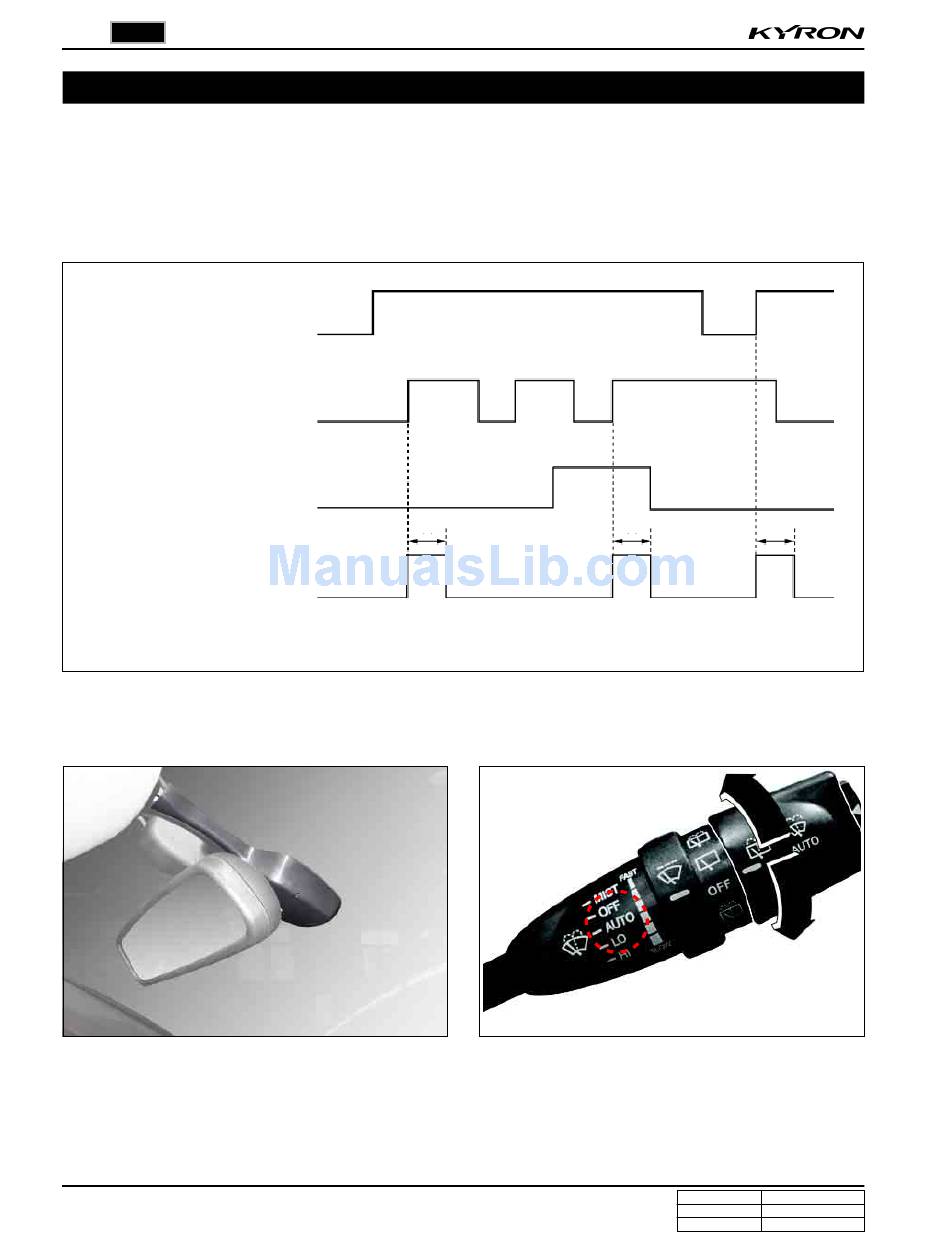

INT Switch Auto Position Reminder (Power-Up Reminder Wiper)
1. When turning off and on the auto INT switch, the system drives the wiper motor through LOW relay regardless of
communication with rain sensor.
2. The wiper relay (LOW) is turned on and the wiper motor runs one cycle when changing the wiper switch to
"AUTO" position from any other positions (while the ignition key is in the "ON" position).
When the wiper switch is turned to the "ON" position again from other positions, the system drives the wiper
motor through LOW relay one cycle only when the rain sensor detects the "Rain Detected" signal.
KEY IN
& IGN2 SW
INT AUTO SW
Rain Detected
RAIN SENSOR
to RKSTICS
WIPER
LOW RELAY
Rain sensing unit (auto light integrated type)
A sensor that emits infrared rays through LED and then
detects the amount of rain drops by receiving reflected
rays against sensing section (rain sensor mounting sec-
tion on the windshield) with photodiode (auto light sen-
sor integrated type)
RKSTICS (REKES + STICS) / STICS
KYRON SM - 2005.09
ON
OFF
ON
OFF
OFF
T1
ON
OFF
T1
T1: 1 cycle
Multifunction wiper switch: AUTO and sensitiv-
ity control
AUTO: Wiper operates automatically by rain sensor
FAST ↔ ↔ ↔ SLOW: Auto delay/Auto speed control. A po- ↔ ↔
sition that can control sensitivity against rains in the
windshield and transmits wiping demand signal accord-
ingly
T1
