9. AIR CONDITIONER MODULE SENSORS AND ACTUATORS
Water Temperature Sensor
Inspection
If the water temperature sensor defect code (DTC 3) is set, check as below.
1. Remove the water temperature sensor and measure the resistance between terminals on the sensor connector.
(standard: approx. 25°C, 2.2 kΩ)
In addition, if the resistance is extremely high or low, replace the sensor.
2. If the measured value is out of the specified range, replace the water temperature sensor. If the measured value is
within the specified range, check as below.
3. Turn the ignition switch to ON position and measure the voltage to water temperature sensor from the FATC
controller connector. (standard: approx. 2 V at 25°C)
4. If the voltage value cannot be measured, check the circuit for open. If the measured value is within the specified
range, replace the FATC controller.
AIR CONDITIONING SYSTEM
KYRON SM - 2005.09

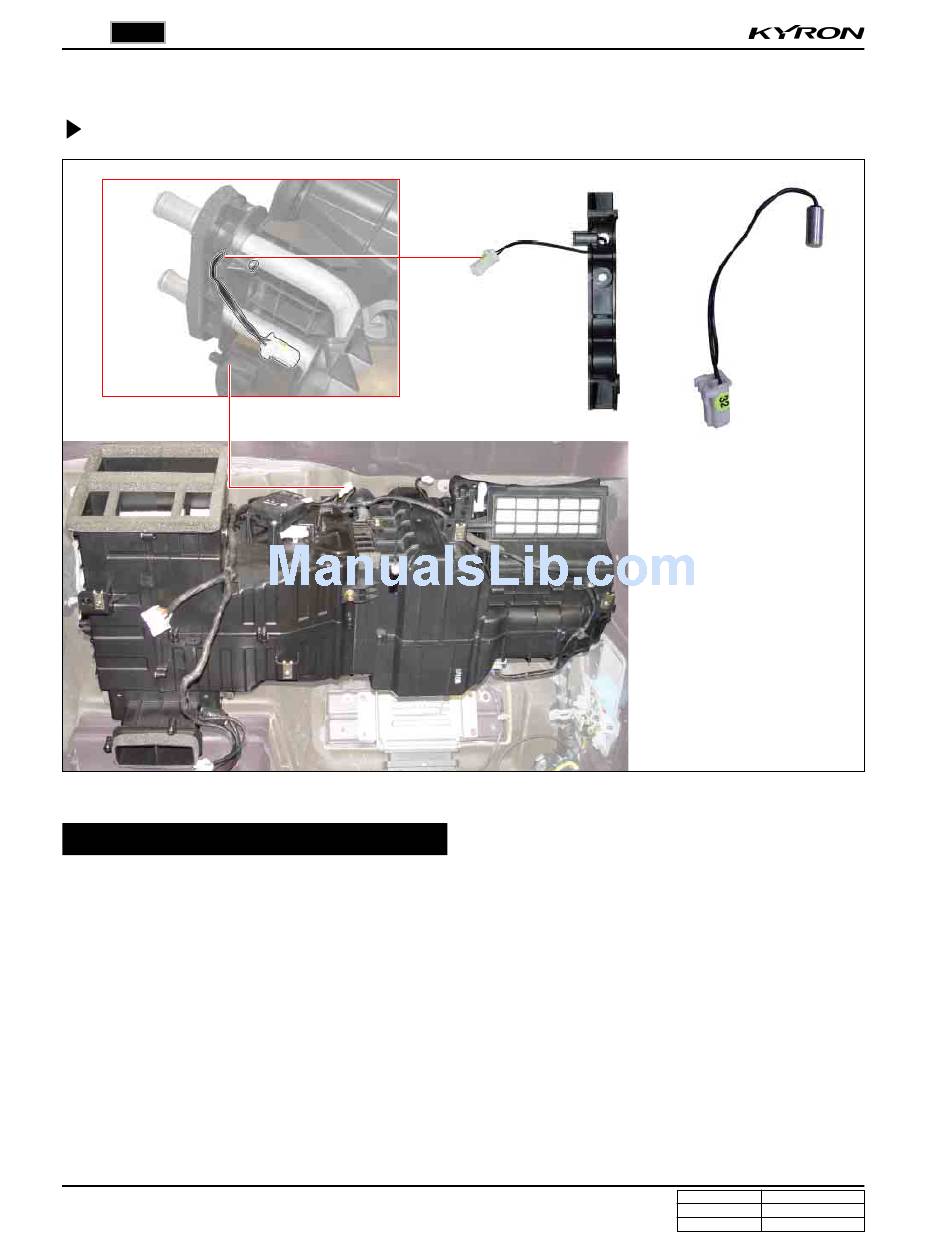

Water temperature Sensor
