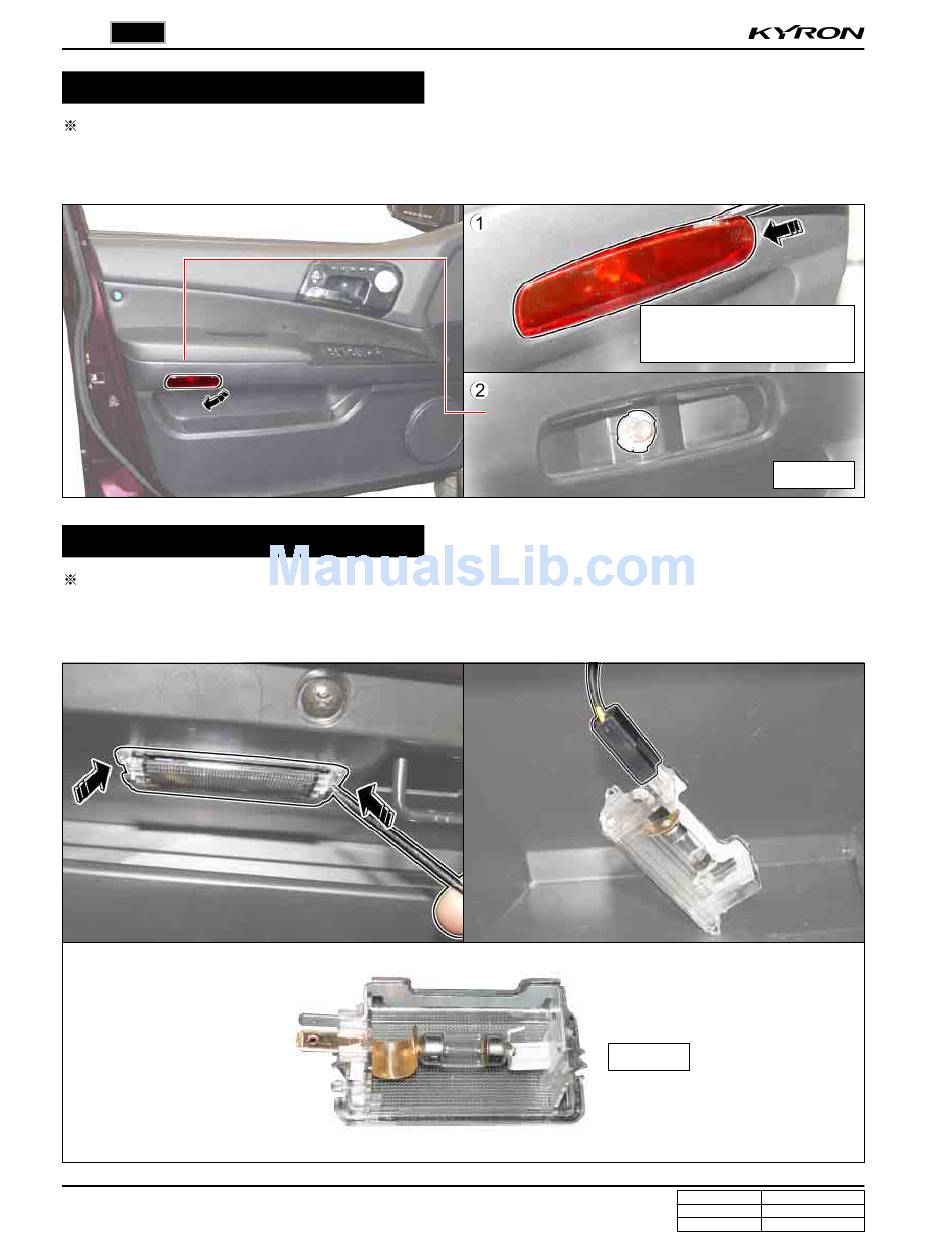

Door Courtesy Lamp Assembly
Preceding Work: Disconnect the negative battery cable.
1. Disconnect the door courtesy lamp cover (1) from the door trim and remove the bulb (2). Replace the bulb with
new one.
Glove Box Lamp Assembly
Preceding Work: Disconnect the negative battery cable.
1. Open the glove box and remove the lamp cover by pressing both sides of the lamp as shown in the figure.
2. Disconnect the connector and remove the lamp assembly. Replace the bulb with new one.
LAMP
KYRON SM - 2005.09
* Location: Toward tailgate use
the slot around the lens when
replacing the lamp (bulb)
12V-5W
12V-5W
