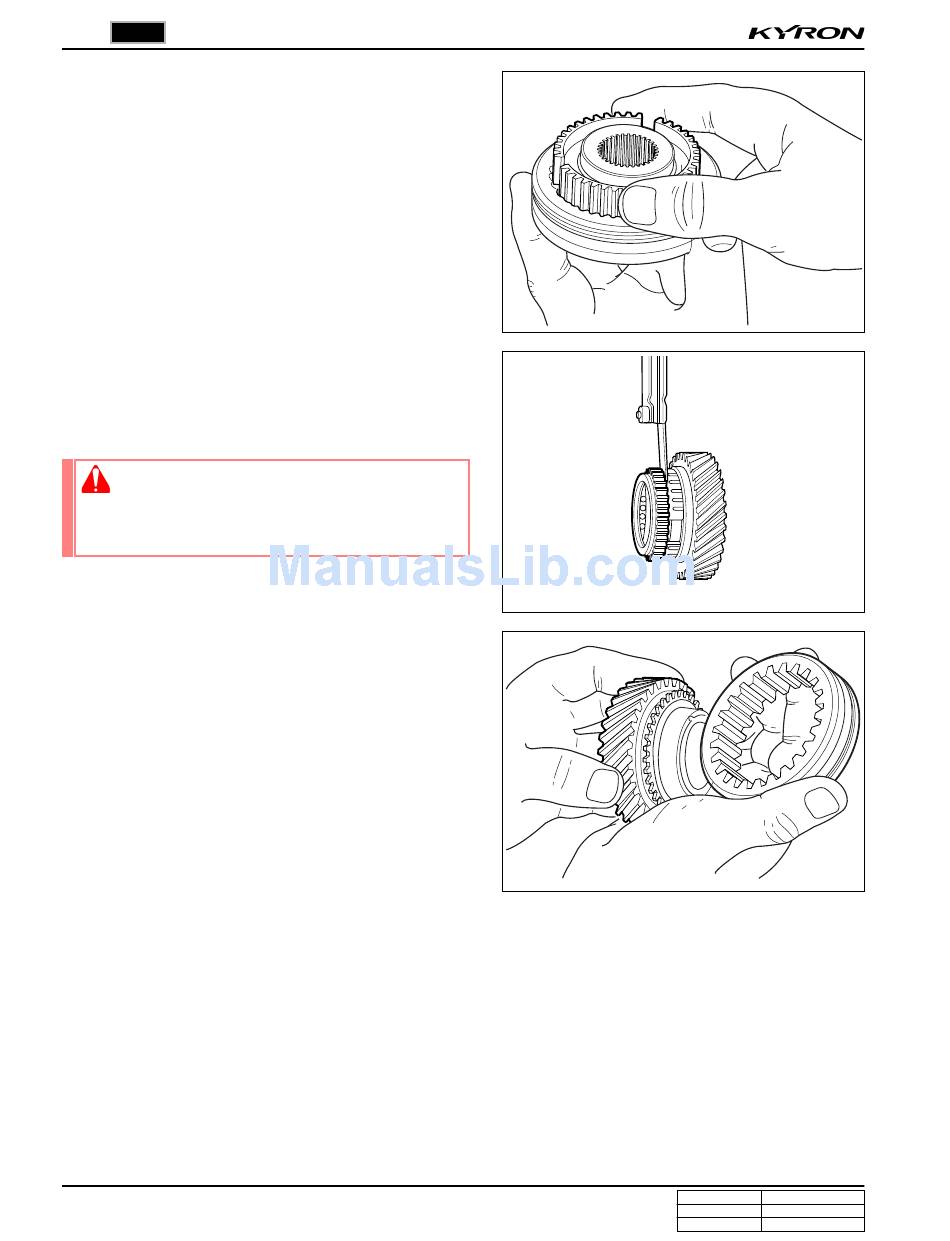

9. Check the conditions of each synchronizer sleeve
and hub.
1) Engagement of hub and sleeve
2) Wear on cone clutch surface in synchronizer ring
(brass) engaging the gears
10. Measure the clearance between blocking ring and
speed gear.
1) New 1/2 gear synchronizer ring: 0.87 ~ 1.4 mm
2) New 3/4 gear synchronizer ring: 0.88 ~ 1.5 mm
NOTICE
• If the clearance is excessive, replace it with new
one. Otherwise, it may cause the missing or break-
age of the gears.
11. Check the speed gear clutch and synchronizer
sleeve for damage in teeth surface.
12. Check the engagement of synchronizer sleeve and
speed gear clutch.
