SSANGYONG Kyron Repair Manual page 114

102
3650

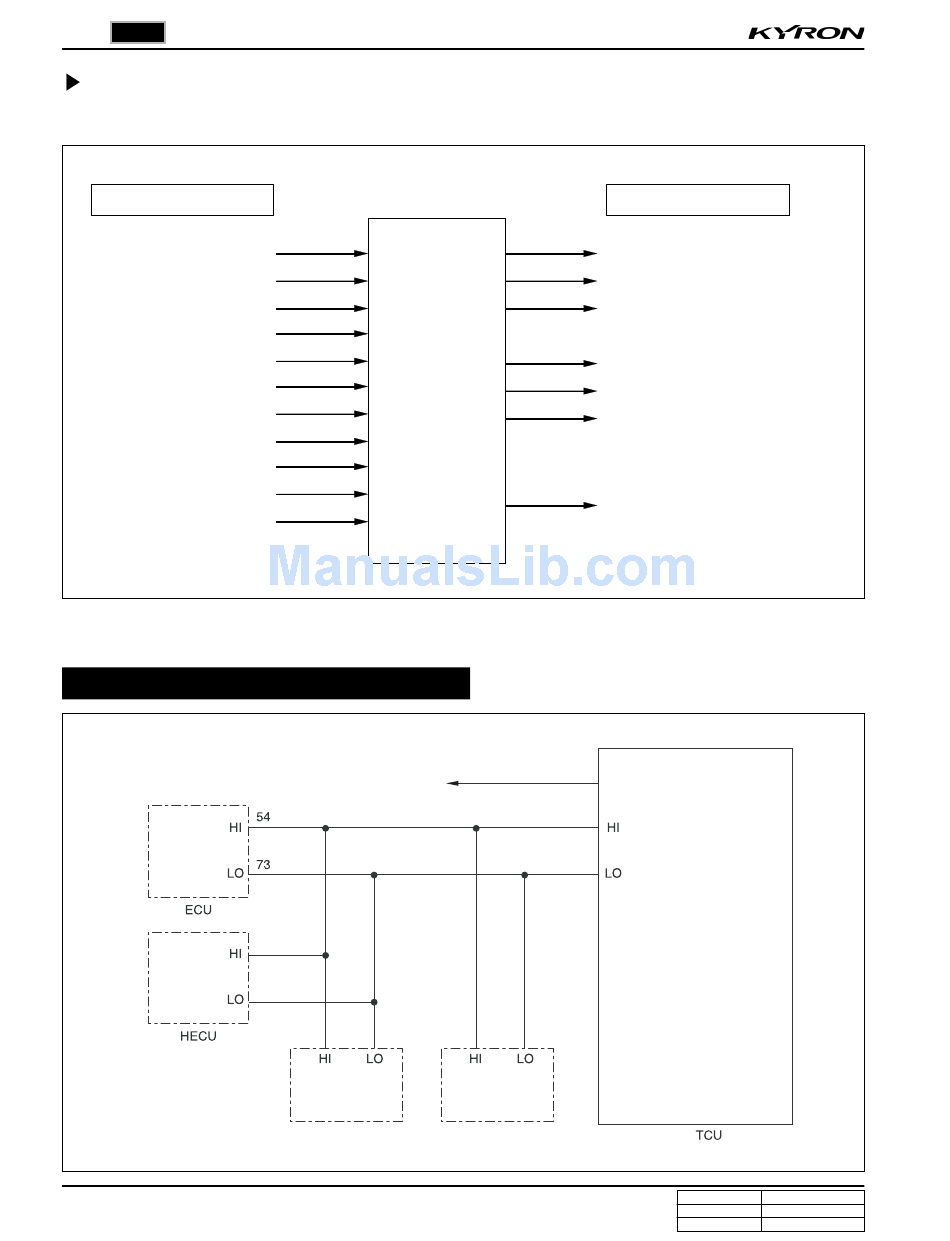

CAN (Controller Area Network)
Function
CAN Input Signal
Accelerator pedal position
Wheel speed (all wheels)
Engine rpm, Engine torque
Coolant temperature
Downshift
Speed control (constant)
2nd gear start up control
Gear status in transfer case
Selector lever position
Odometer (I/P)
Kick-down status
Circuit Diagram
AUTO TRANSMISSION
KYRON SM - 2005.09
TCU
Self diagnostic 11
5
Instrument panel Selector lever unit
CAN Output Signal
Selected gear
Shifted status
Lock-up clutch status
Driving position
Engine torque control
Dangerous status (changes to
emergency mode when
overloading, dangerous conditions,
and internal fault exists)
ATF Temperature
A18 (1)
B1 (41)
B2 (40)
4
