SSANGYONG Kyron Repair Manual page 168

44
3170

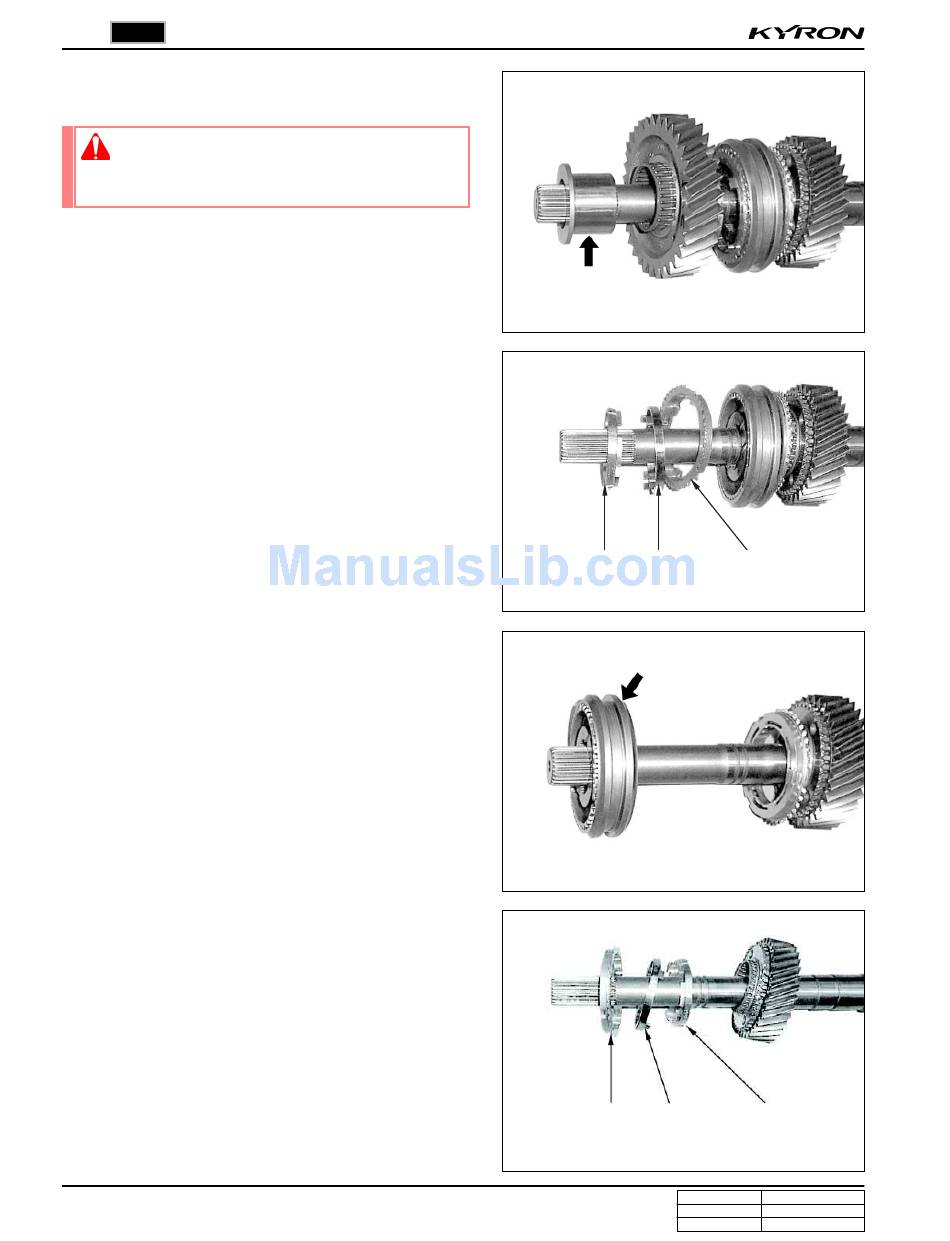

31. Remove the inner race from 1st gear and 1st gear from
1st gear, and remove the needle bearing from the shaft.
NOTICE
• Store the disassembled gears by relevant
components.
32. Remove the synchronizer inner intermediate cone and
outer ring in 1st gear side.
33. Remove the 1/2 gear synchronizer hub along with
double synchronizer sleeve.
34. Remove the synchronizer inner intermediate cone and
outer ring in 2nd gear side.
MANUAL TRANSMISSION
KYRON SM - 2005.09
Synchronizer Synchronizer
inner ring intermediate
cone
Synchronizer Synchronizer
outer ring intermediate
cone
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
Synchronizer
outer ring
Synchronizer
inner ring
