SSANGYONG Kyron Repair Manual page 685

ESP Warning Lamp

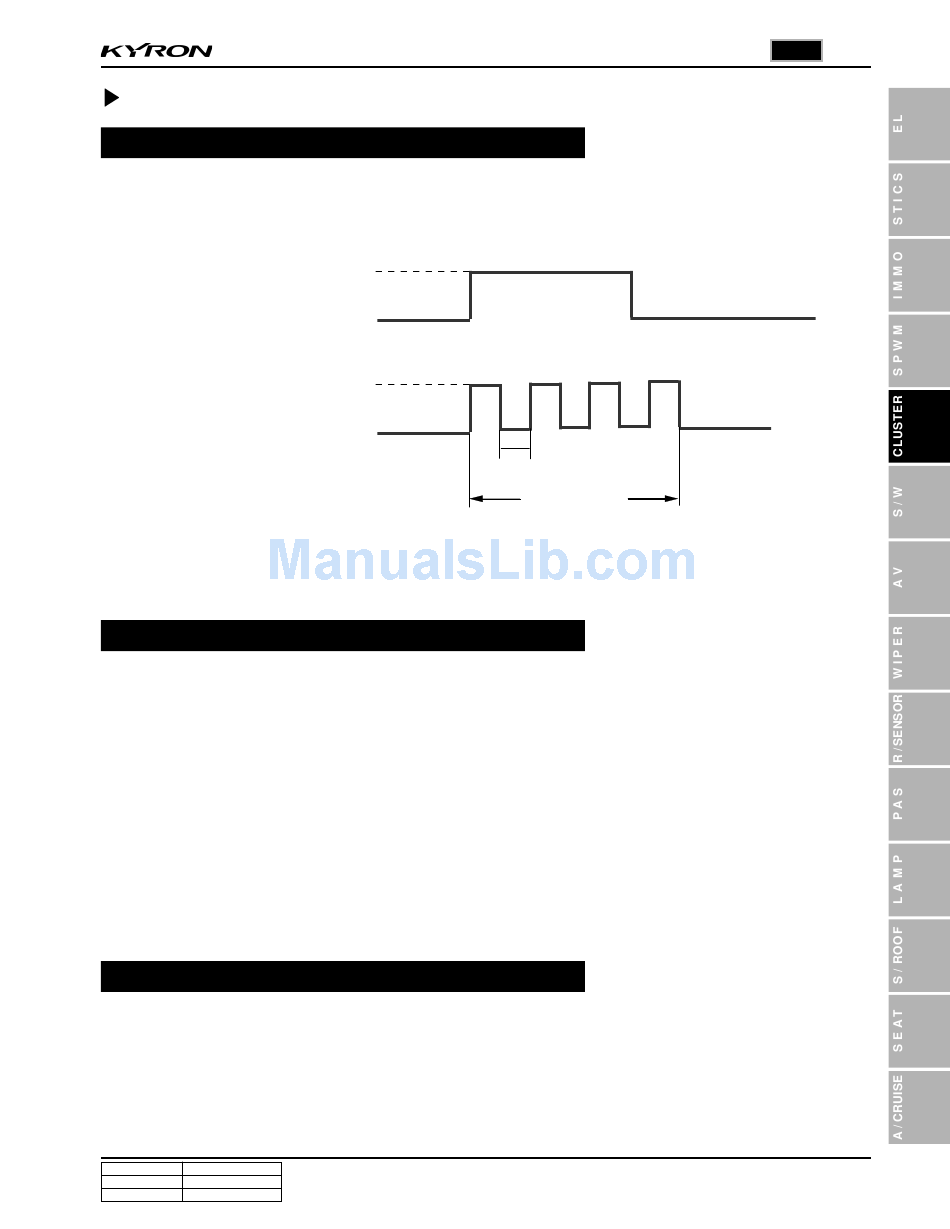

ESP Warning Lamp Blinking in Control
ESP warning lamp blinks when ESP control is activated. If the activation reaches a certain limitation, a beep sounds
to warn the driver. The ESP warning lamp goes off when ESP function is deactivated. Even when the ESP is
operated for a very short period of time, the ESP warning lamp blinks minimum of 4 times every 500 milliseconds.
ESP operation
(including TCS)
ESP warning lamp
1. When receiving CAN data
LAMP: (200h, 1.5) ESP - INFO - BL: when receiving data, 500 ms on/off
BUZZER: (200h, 1.4) ESP - INFO - BUZZ: when receiving data, 100 ms on/off
ESP System Cancellation Using the ESP OFF Switch
When the ESP switch is pressed (for over approximately 150 ms), the ESP system will be cancelled and the
vehicle will be driven regardless of the output values from the corresponding sensors. Then, the ESP
warning lamp on the instrument panel comes on.
The detailed operation procedures are as follows:
1. The ESP warning lamp comes on when the ESP OFF switch is pressed for over 150 ms.
2. The switch returns to normal position when the OFF switch is released.
3. The ESP system will be cancelled after approximately 150 ms.
Based on the above procedures, we can see that the ESP system will be cancelled after a certain period (approx.
150 ms) from releasing the switch to the original position. The ESP system does not get canceled immediately
when the ESP warning lamp is turned on by pressing the ESP OFF switch.
When you turn the ESP system off by pressing the ESP switch for over 150 ms, the TCS system is turned off. And the
basic ABS system will operate.
Resuming the ESP System by Using the ESP OFF Switch
The ESP system will be resumed and the ESP warning lamp at the instrument panel goes off when the ESP switch
at the center switch panel is pushed (for over approximately 150 ms) while the ESP system is not operating.
The detailed operation procedures are as follows.
1. The ESP warning lamp comes on when the ESP OFF switch is pushed for over 150 ms.
2. The switch returns to normal position when the OFF switch is released.
3. The ESP system will be resumed after approx. 150 ms.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
ON
OFF
500 ms
ON
OFF
500 ms
Min. 4 times
13
8010
CLUSTER
KYRON SM - 2005.09
