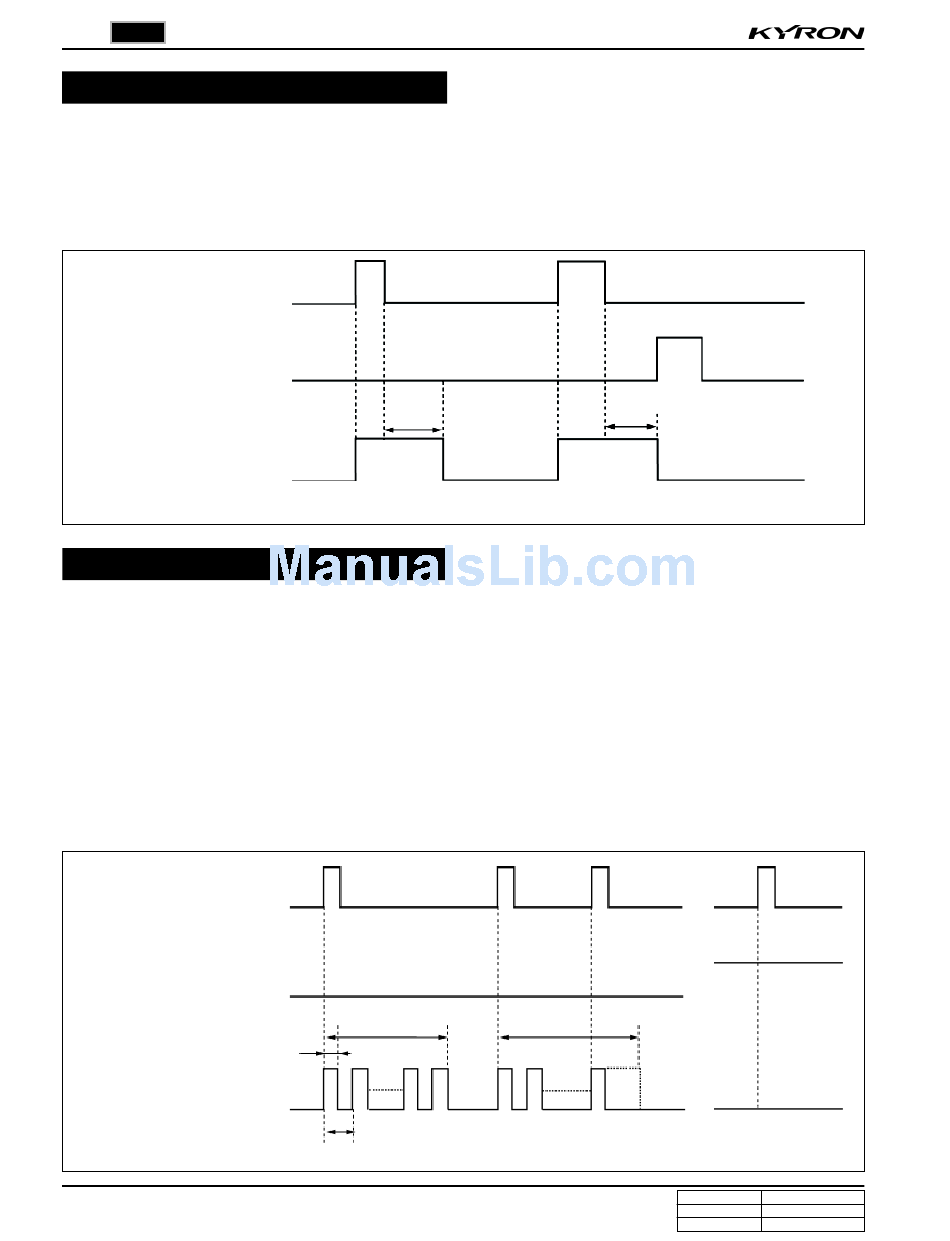

Time Lag Power Window Control
1. The power window relay output is "ON" when turning on the ignition switch.
2. The power window relay output is "ON" for 30 seconds when turning off the ignition switch.
The power window relay output is "OFF" when opening the driver's door or the passenger's door.
3. The power window relay is turned "OFF" when receiving the remote control key lock signal (armed mode) during
its extended operation period of 30 seconds.
ON
IGN1
OFF
OPEN
Dr, Ps DOOR
SWITCH
CLOSE
ON
P/WINDOW
SWITCH
OFF
PANIC Warning (With ignition key in)
1. The PANIC warning output is "ON" (theft deterrent horn) when receiving the PANIC signal from the remote control
key (pressing PANIC button).
2. The PANIC warning output is "OFF" when receiving any signal from the remote control key during PANIC warning.
3. Followings are theft deterrent warnings:
1) The theft deterrent warning is canceled when receiving PANIC signal from the remote control key during theft
deterrent.
2) The theft deterrent warning output is "ON" when the theft deterrent conditions are established during PANIC
warning (PANIC output is "OFF").
3) The PANIC warning output is "ON" when receiving the PANIC signal from the remote control key in Armed
Ready / Armed / Warning Completion / Relock Ready mode (maintaining the theft deterrent mode).
4. This function operates only in armed mode.
Tx SIGNAL ON
(REMOTE CON-
TROL SIGNAL)
OFF
WARNING
THEFT
DETERRENT
OFF
MODE
ON
HORN
OFF
RKSTICS (REKES + STICS) / STICS
KYRON SM - 2005.09
T1
T1: 30 sec
T1
T2
T3
T1: 27 sec
T2
T2: OFF during T1 output
T1
T2: 0.5 sec T3: 1.0 sec
