10. REMOVAL AND INSTALLATION
Air Conditioner Module Assembly
Preceding Work: Disconnect the negative battery cable and remove the instrument panel assembly.
1. Collect the air conditioner refrigerant before removing the air conditioner module. (dispose the
wasted refrigerant to designated place)
2. Drain radiator coolant.

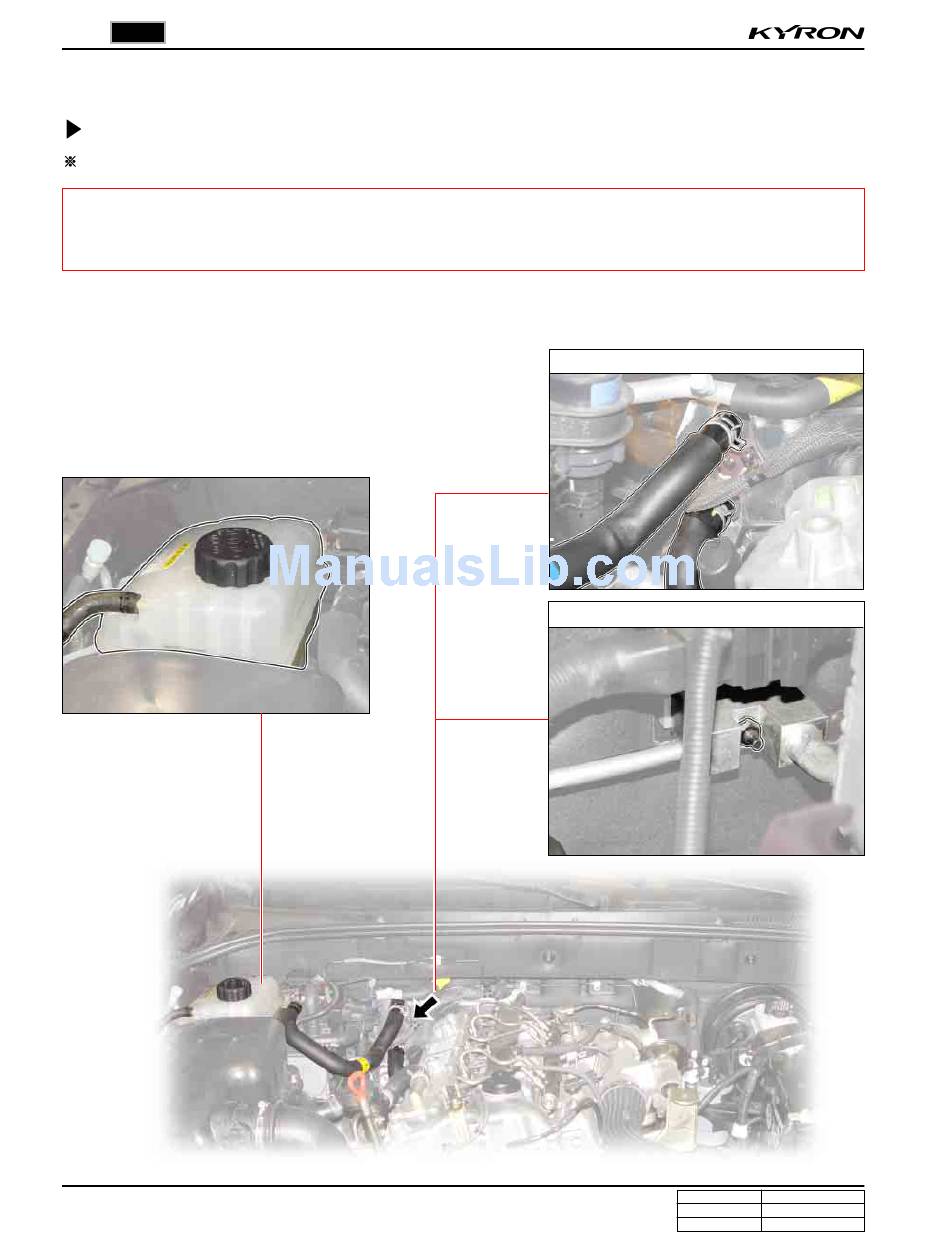

1. Disconnect the heater hose (A) from the engine compartment and remove the A/C high/low pressure pipe mount-
ing nuts.
* Remove the mounting nut and loosen the
coolant reservoir.
AIR CONDITIONING SYSTEM
KYRON SM - 2005.09
A. Inner/outer heater hose and clamp
B. A/C joint pipe mounting nut
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
