SSANGYONG Kyron Repair Manual page 497

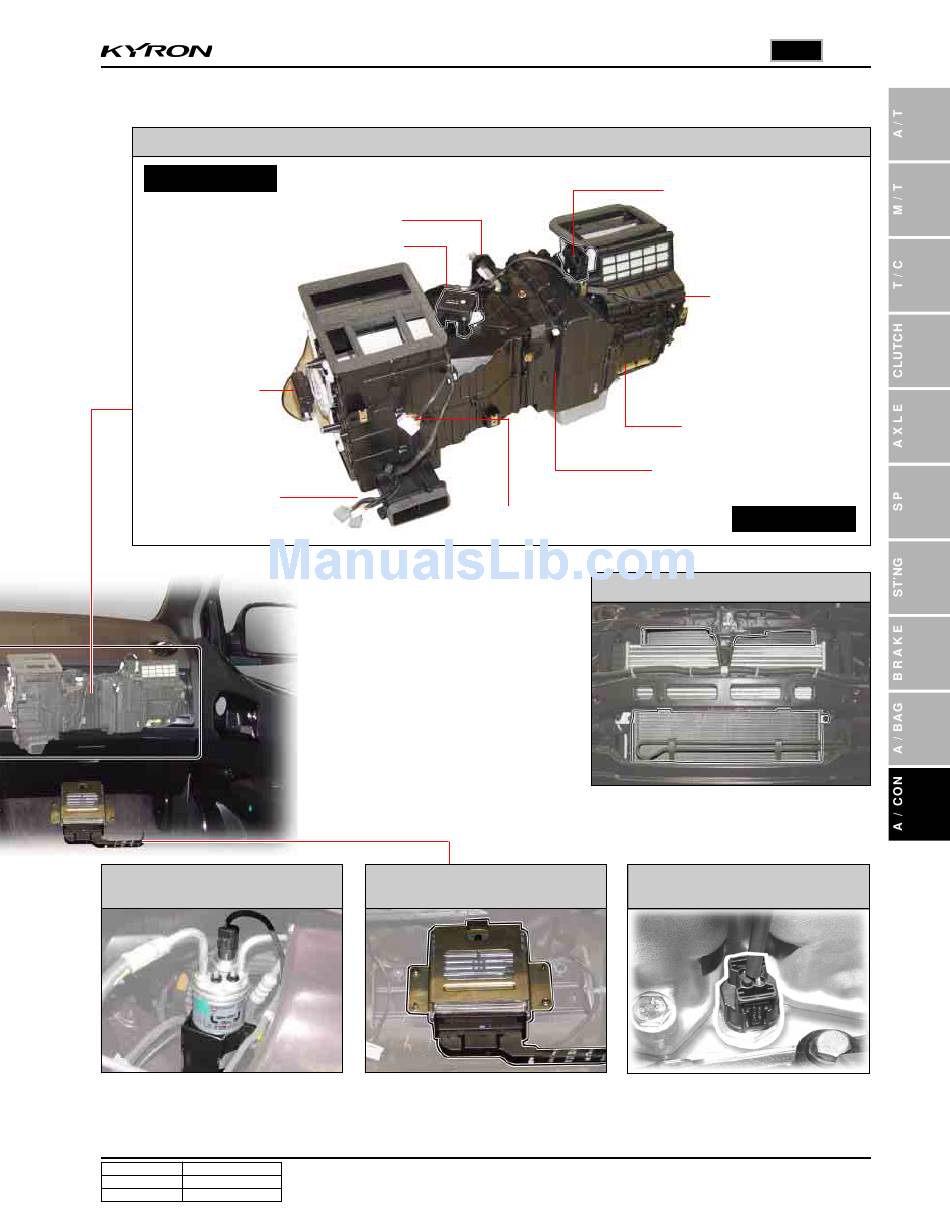

Front Air Conditioner Module Assembly - Inside of Instrument Panel
Heater Unit Side
Coolant temperature sensor
Air mix door actuator
Mode door
actuator
Air conditioner
controller wire
Receiver Drier (LH)
* Absorbs moisture in the refrigerant
and reserves refrigerant to supply
smoothly.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
Main wire
Engine ECU (Passenger Footstep)
* Detects A/C switch position, coolant
temperature, engine condition and
driving condition to control the air
conditioner.
Air source door
actuator
Air conditioner filter
Power transistor
Thermo AMP
Bloor Unit Side
Condenser
Installed in front of vehicle and condenses
vapor refrigerant into low temperature and
high pressure liquid refrigerant.
Coolant Temperature Sensor
(On Engine)
* A sensor that detects coolant tem-
perature and transmits to engine
ECU.
AIR CONDITIONING SYSTEM
3
6810
KYRON SM - 2005.09
