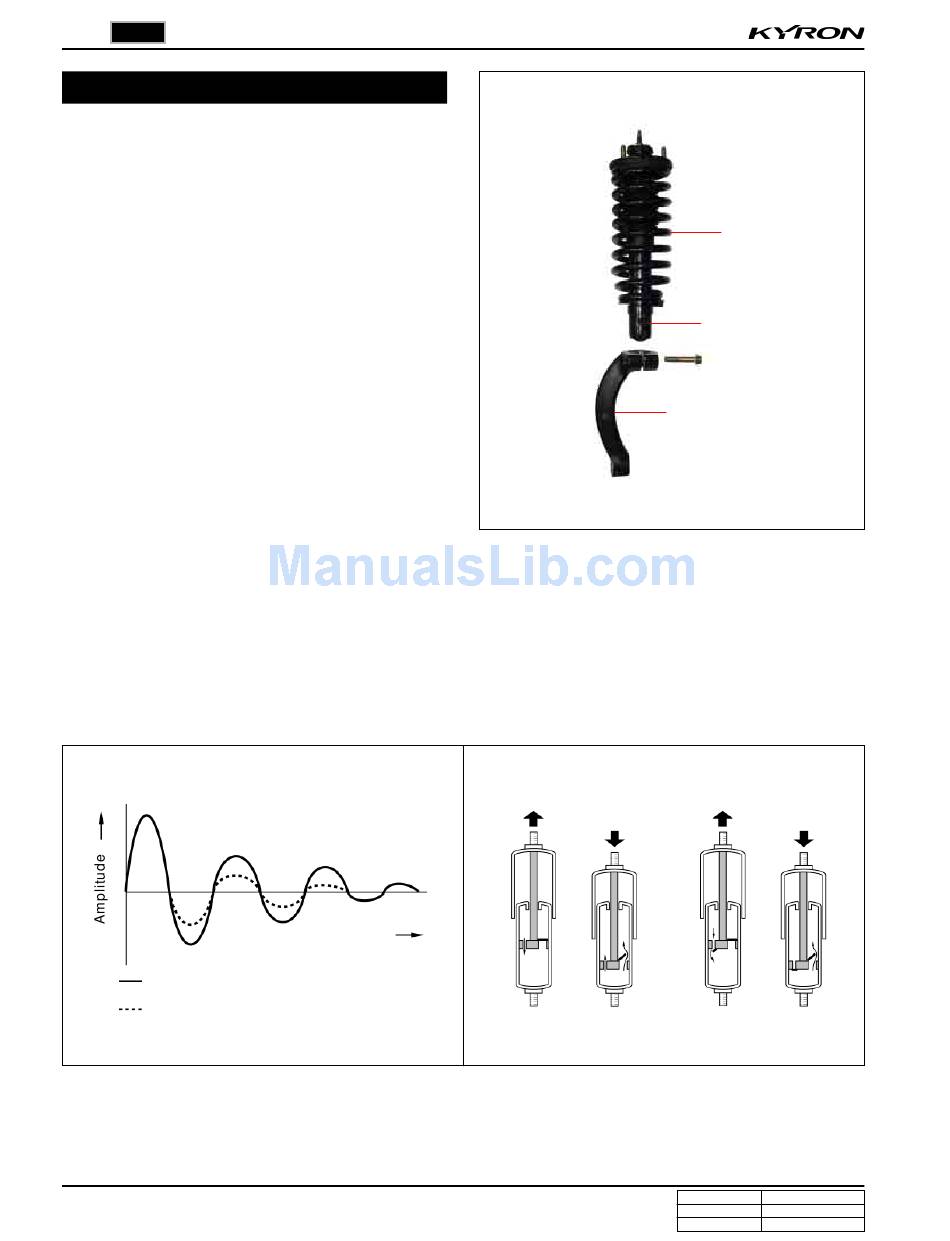

Shock Absorber Assembly
1. This vehicle uses the strut type shock absorber. This
shock absorber is connected to the piston rod in the
strut. This relieves the vertical vibrations of vehicle to
provide ride comforts, prevents the spring break, en-
hances drivability, and extends the life span of steer-
ing components.
2. The telescopic shock absorber consists of a tube with piston and rod, and a cylinder tube. The piston has an
orifice and valve and the cylinder is filled with oil.
This double tube type shock absorber restrains the vibrations by using oil resistance. This provides better drivability
even though the structure is complicated.
This vehicle uses the gas shock absorber with cylindrical double tube.
without shock absorber
with shock absorber
SUSPENSION
KYRON SM - 2005.09
Time
Coil spring
Shock absorber
Yoke
