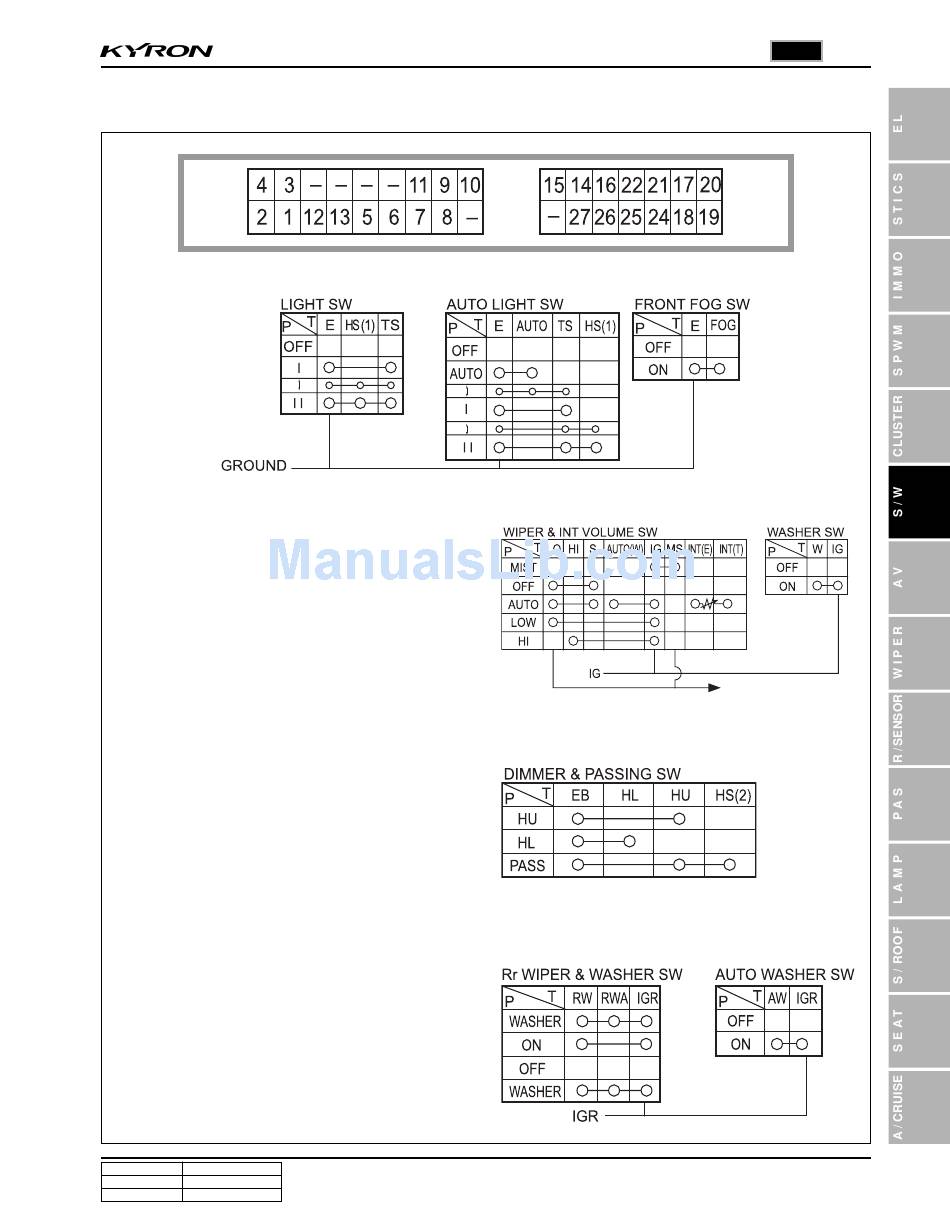

4. CONNECTOR PIN ARRANGEMENT

1 EB Dimmer and passing ground
2 HL Headlamp low beam
3 HU Headlamp high beam
4 HS(2) Passing
5 TS Tail lamp switch
6 HS(1) Headlamp switch
7 AUTO AUTO light
8 E Light/fog/hazard warning switch ground
9 TB Flasher unit power
10 TL Turn signal (LH) lamp switch
11 TR Turn signal (RH) lamp switch
12 FOG Front fog lamp switch
13 HA Hazard switch
14 LO Low wiper speed
15 HI High wiper speed
16 S Wiper stop
17 AUTO (W) Intermittent wiper
18 INT (T) Intermittent wiper
19 INT (E) Intermittent wiper ground
20 W Front washer switch
21 IG IG
22 MS Low wiper speed
23 -
24 AW AUTO washer switch
25 IGR IGR
26 RW Rear wiper
27 RWA Rear wiper & washer
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
8510
SWITCHES / ELECTRIC DEVICES
KYRON SM - 2005.09
91
