Operating elements for crane operation

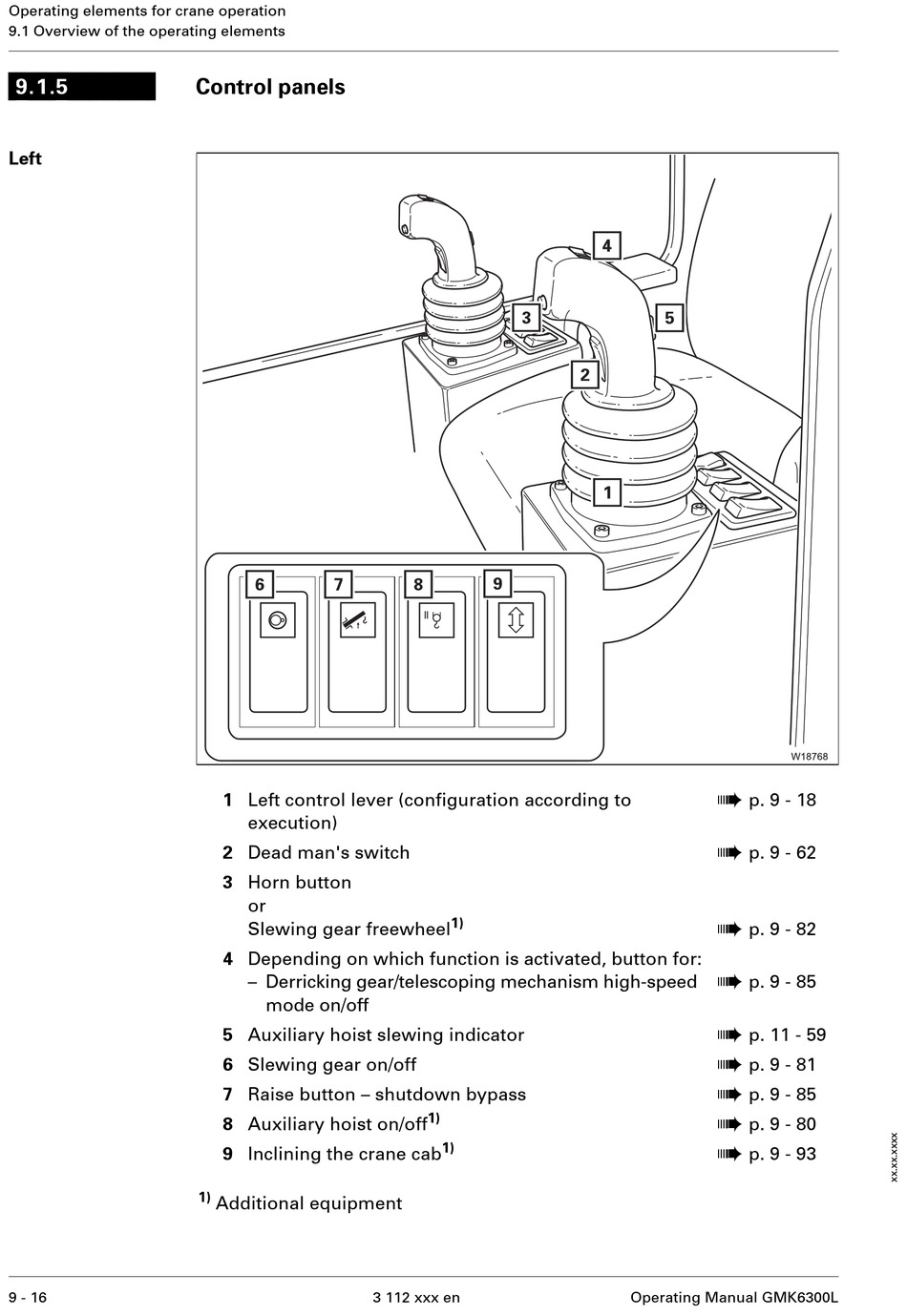

9.1 Overview of the operating elements
9.1.5
Left
9 - 16

Control panels

1 Left control lever (configuration according to
execution)
2 Dead man's switch
3 Horn button
or
Slewing gear freewheel
4 Depending on which function is activated, button for:
– Derricking gear/telescoping mechanism high-speed
mode on/off
5 Auxiliary hoist slewing indicator
6 Slewing gear on/off
7 Raise button – shutdown bypass
8 Auxiliary hoist on/off
9 Inclining the crane cab
1)
Additional equipment
1)
1)
1)
3 112 xxx en
à
p. 9 - 18
à
p. 9 - 62
à
p. 9 - 82
à
p. 9 - 85
à
p. 11 - 59
à
p. 9 - 81
à
p. 9 - 85
à
p. 9 - 80
à
p. 9 - 93
