6.4 Main boom, removing/installing
6.4.1
H
Prerequisites
Checklist
6 - 20

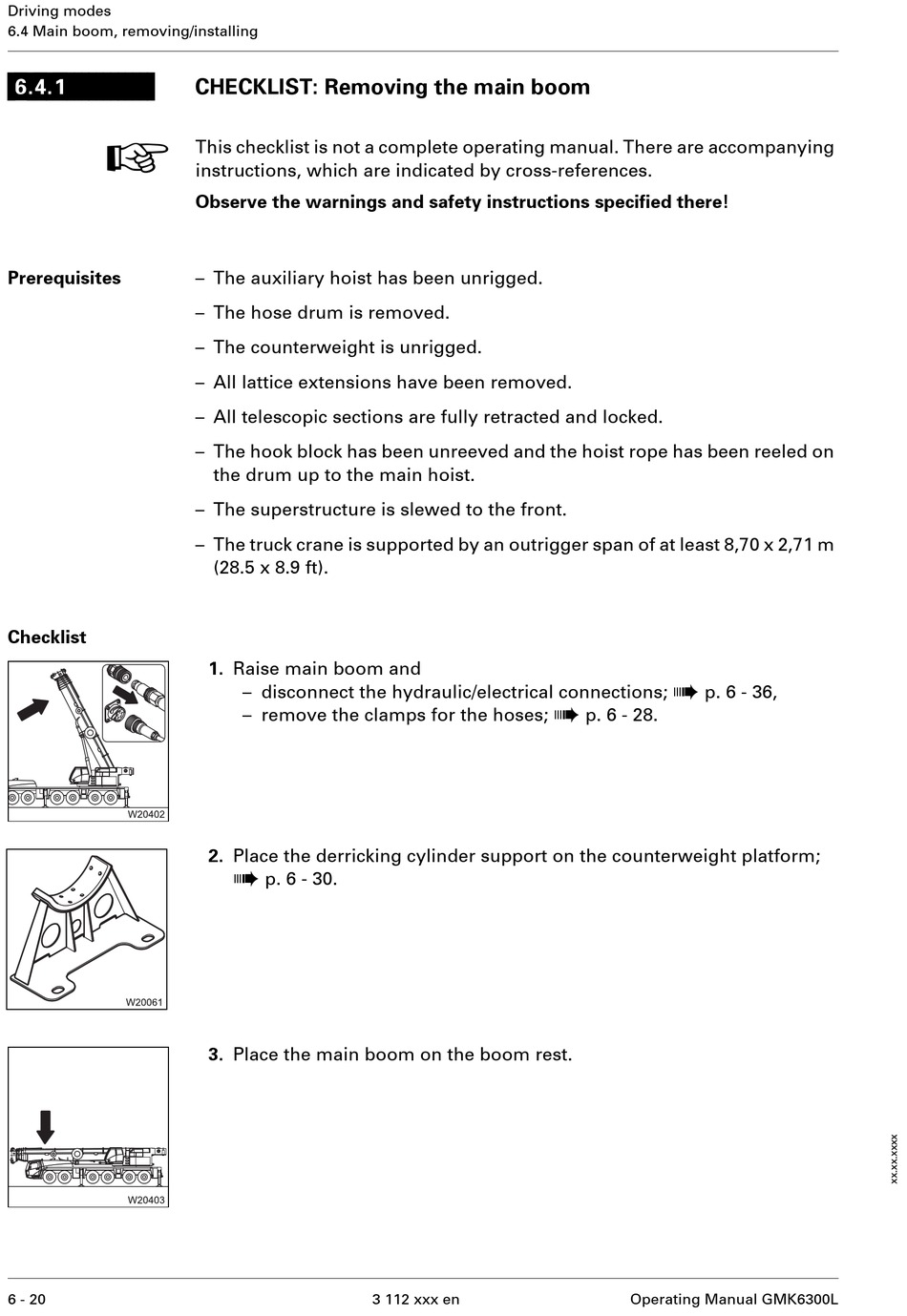

CHECKLIST: Removing the main boom

This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions specified there!
– The auxiliary hoist has been unrigged.
– The hose drum is removed.
– The counterweight is unrigged.
– All lattice extensions have been removed.
– All telescopic sections are fully retracted and locked.
– The hook block has been unreeved and the hoist rope has been reeled on
the drum up to the main hoist.
– The superstructure is slewed to the front.
– The truck crane is supported by an outrigger span of at least 8,70 x 2,71 m
(28.5 x 8.9 ft).
1. Raise main boom and
– disconnect the hydraulic/electrical connections;
– remove the clamps for the hoses;
2. Place the derricking cylinder support on the counterweight platform;
à
p. 6 - 30.
3. Place the main boom on the boom rest.
3 112 xxx en
à
p. 6 - 36,
à
p. 6 - 28.
