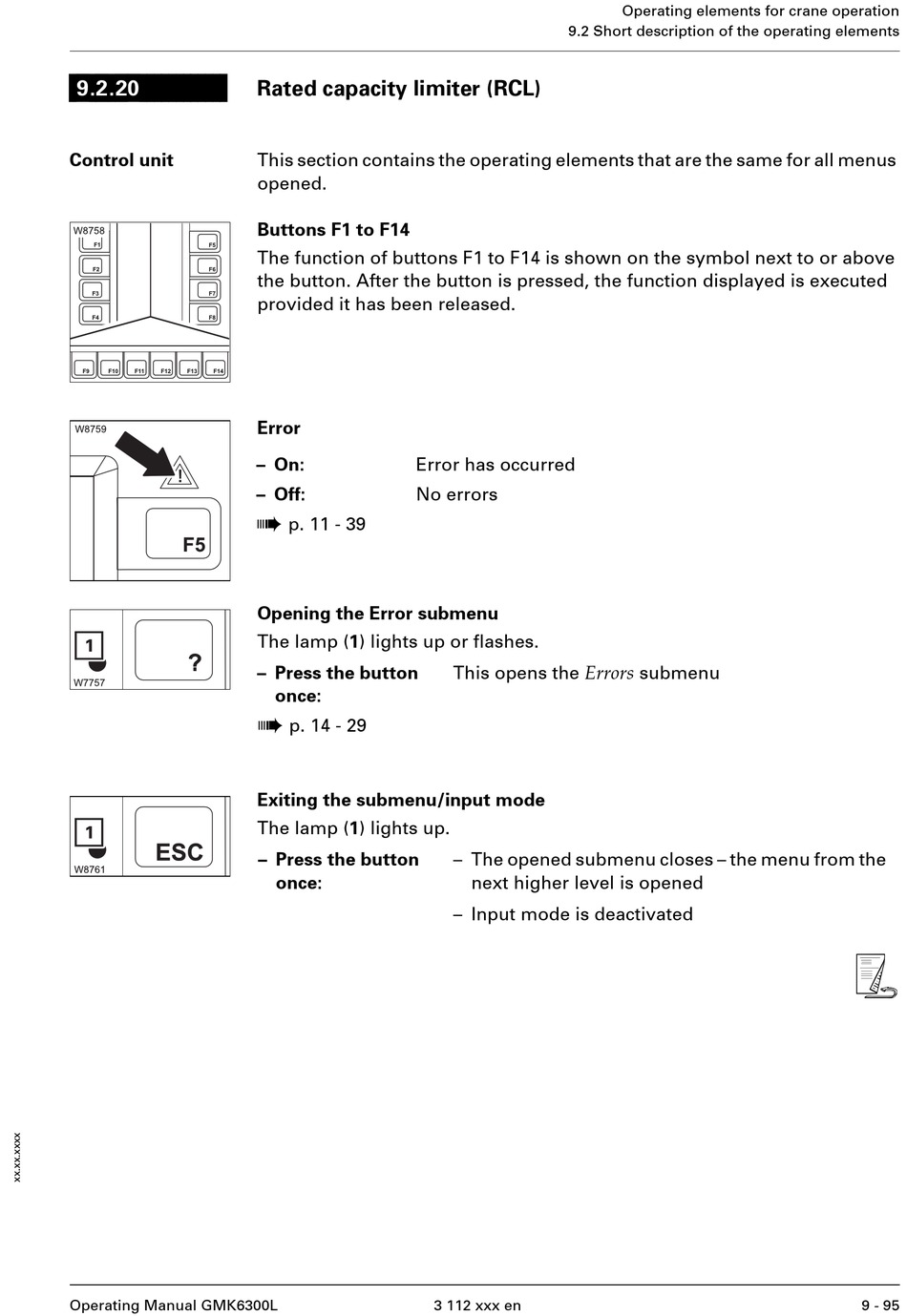

9.2.20
Control unit
Operating Manual GMK6300L

Rated capacity limiter (RCL)

This section contains the operating elements that are the same for all menus
opened.
Buttons F1 to F14
The function of buttons F1 to F14 is shown on the symbol next to or above
the button. After the button is pressed, the function displayed is executed
provided it has been released.
Error
– On: Error has occurred
– Off: No errors
à
p. 11 - 39
Opening the Error submenu
The lamp (1) lights up or flashes.
– Press the button
once:
à
p. 14 - 29
Exiting the submenu/input mode
The lamp (1) lights up.
– Press the button
once:
9.2 Short description of the operating elements
This opens the Errors submenu
– The opened submenu closes – the menu from the
next higher level is opened
– Input mode is deactivated
3 112 xxx en
Operating elements for crane operation
s
9 - 95
