5.1.5
H
S
Prerequisites
In the event of
malfunctions
Operating Manual GMK6300L

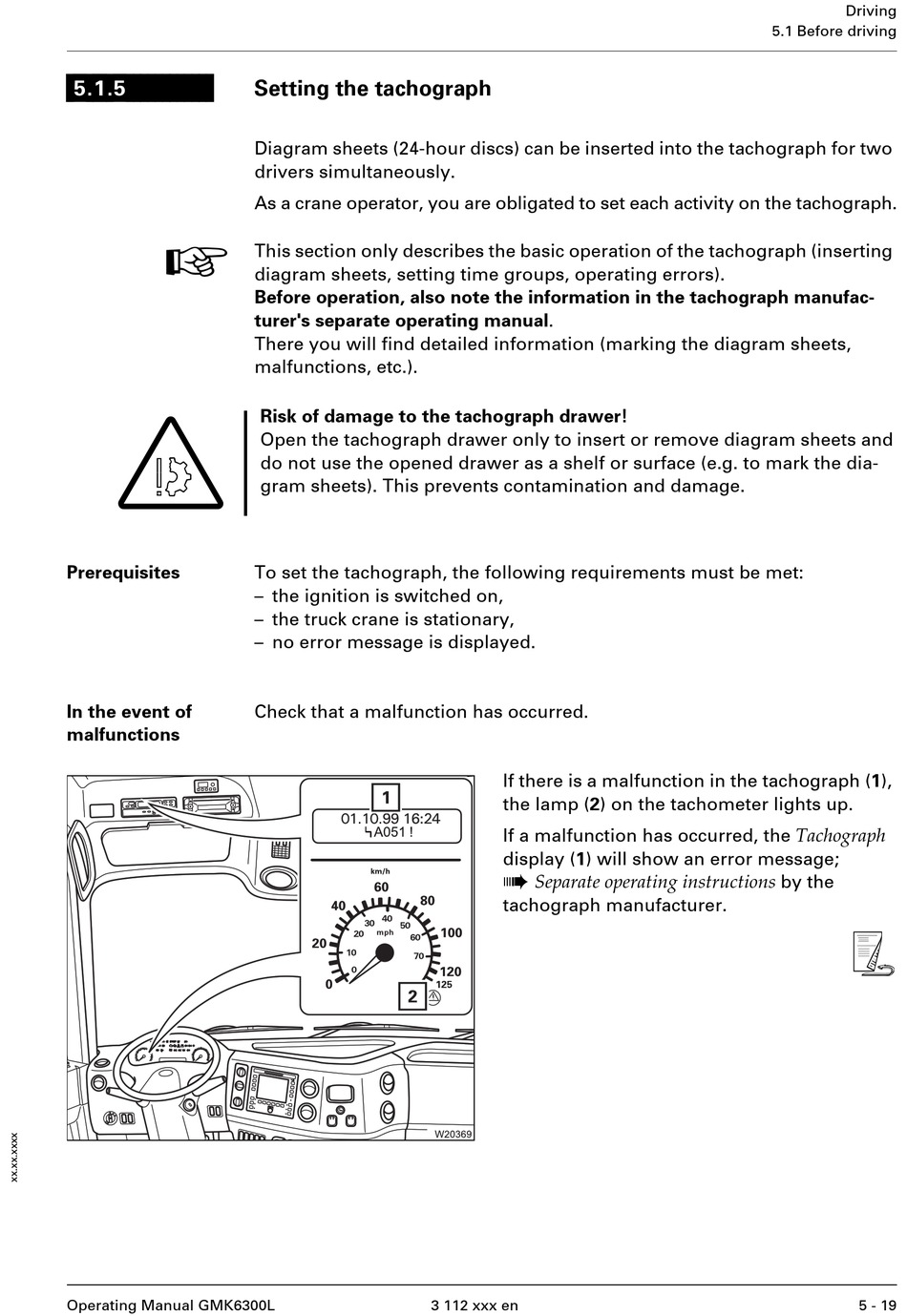

Setting the tachograph

Diagram sheets (24-hour discs) can be inserted into the tachograph for two
drivers simultaneously.
As a crane operator, you are obligated to set each activity on the tachograph.
This section only describes the basic operation of the tachograph (inserting
diagram sheets, setting time groups, operating errors).
Before operation, also note the information in the tachograph manufac-
turer's separate operating manual.
There you will find detailed information (marking the diagram sheets,
malfunctions, etc.).
Risk of damage to the tachograph drawer!
Open the tachograph drawer only to insert or remove diagram sheets and
do not use the opened drawer as a shelf or surface (e.g. to mark the dia-
gram sheets). This prevents contamination and damage.
To set the tachograph, the following requirements must be met:
– the ignition is switched on,
– the truck crane is stationary,
– no error message is displayed.
Check that a malfunction has occurred.
If there is a malfunction in the tachograph (1),
the lamp (2) on the tachometer lights up.
If a malfunction has occurred, the Tachograph
display (1) will show an error message;
à
Separate operating instructions by the
tachograph manufacturer.
3 112 xxx en
Driving
5.1 Before driving
s
5 - 19
