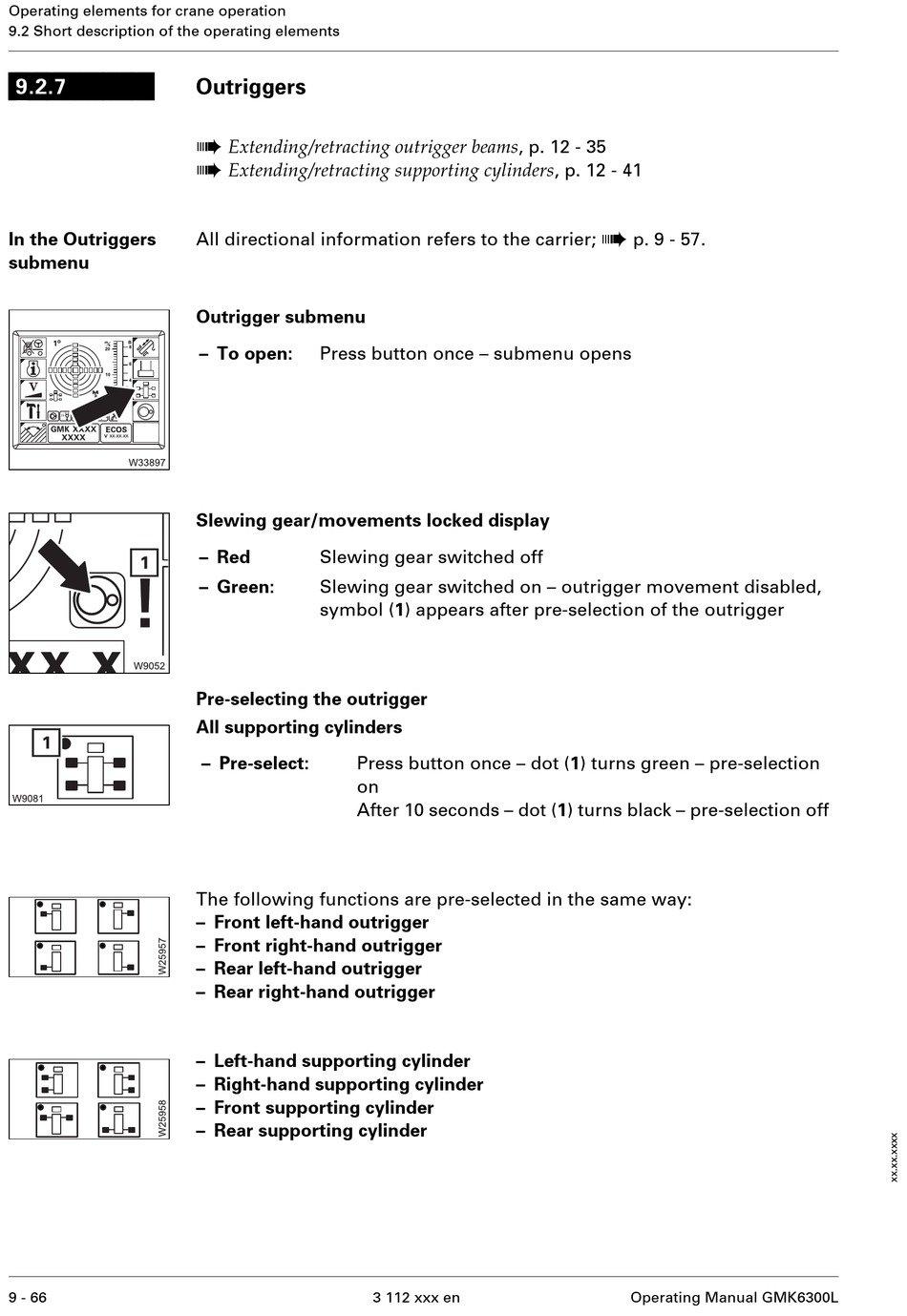

Operating elements for crane operation
9.2 Short description of the operating elements
9.2.7
In the Outriggers
submenu
9 - 66

Outriggers

à
Extending/retracting outrigger beams , p. 12 - 35
à
Extending/retracting supporting cylinders , p. 12 - 41
All directional information refers to the carrier;
Outrigger submenu
– To open:
Press button once – submenu opens
Slewing gear/movements locked display
– Red
Slewing gear switched off
– Green:
Slewing gear switched on – outrigger movement disabled,
symbol (1) appears after pre-selection of the outrigger
Pre-selecting the outrigger
All supporting cylinders
– Pre-select:
Press button once – dot (1) turns green – pre-selection
on
After 10 seconds – dot (1) turns black – pre-selection off
The following functions are pre-selected in the same way:
– Front left-hand outrigger
– Front right-hand outrigger
– Rear left-hand outrigger
– Rear right-hand outrigger
– Left-hand supporting cylinder
– Right-hand supporting cylinder
– Front supporting cylinder
– Rear supporting cylinder
3 112 xxx en
à
p. 9 - 57.
Operating Manual GMK6300L
