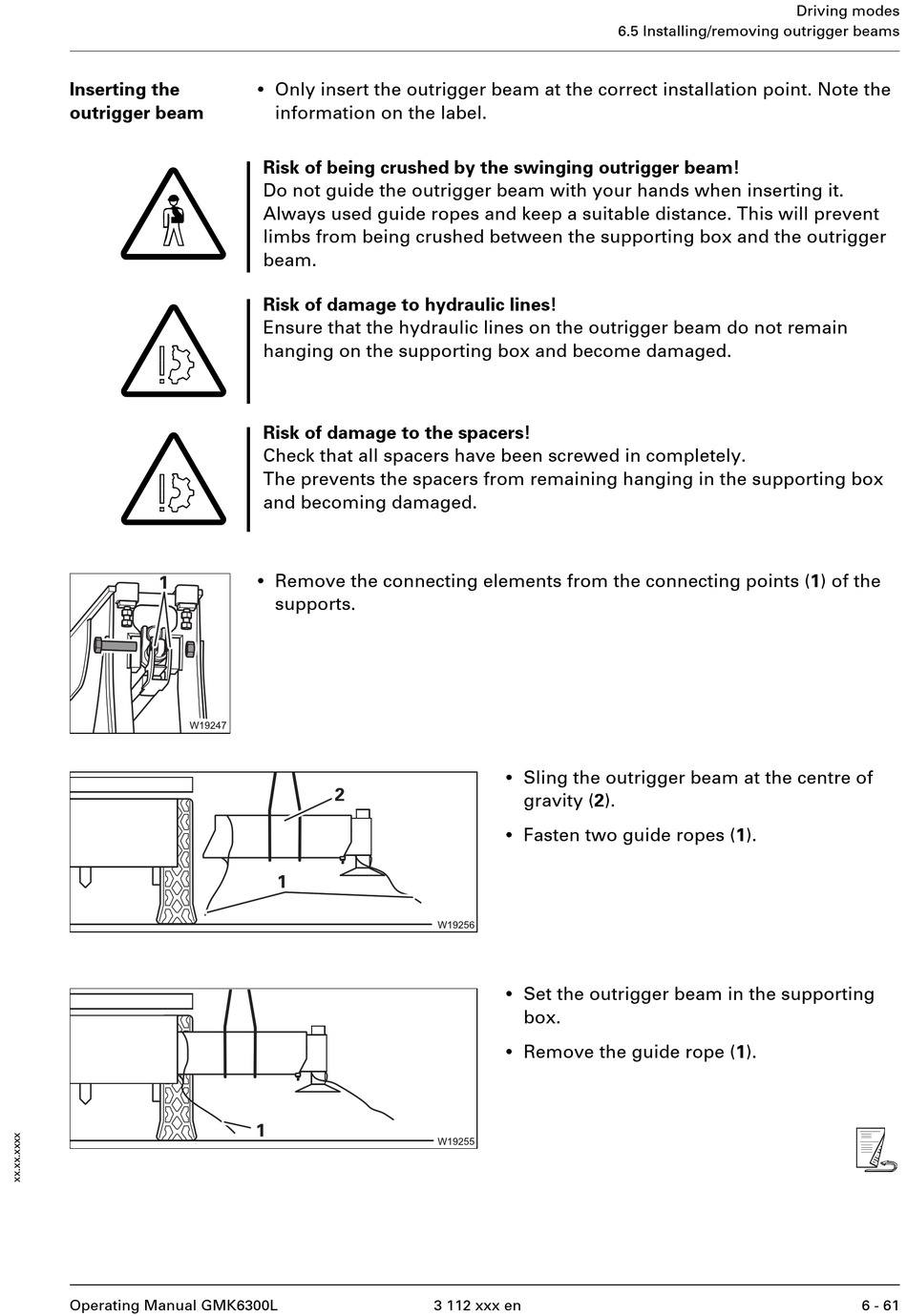

Inserting the
outrigger beam
G
S
S
Operating Manual GMK6300L
•
Only insert the outrigger beam at the correct installation point. Note the
information on the label.
Risk of being crushed by the swinging outrigger beam!
Do not guide the outrigger beam with your hands when inserting it.
Always used guide ropes and keep a suitable distance. This will prevent
limbs from being crushed between the supporting box and the outrigger
beam.
Risk of damage to hydraulic lines!
Ensure that the hydraulic lines on the outrigger beam do not remain
hanging on the supporting box and become damaged.
Risk of damage to the spacers!
Check that all spacers have been screwed in completely.
The prevents the spacers from remaining hanging in the supporting box
and becoming damaged.
•
Remove the connecting elements from the connecting points (1) of the
supports.
•
Sling the outrigger beam at the centre of
gravity (2).
•
Fasten two guide ropes (1).
•
Set the outrigger beam in the supporting
box.
•
Remove the guide rope (1).
3 112 xxx en
6.5 Installing/removing outrigger beams
