Operating elements for driving
3.1 Overview of the operating elements

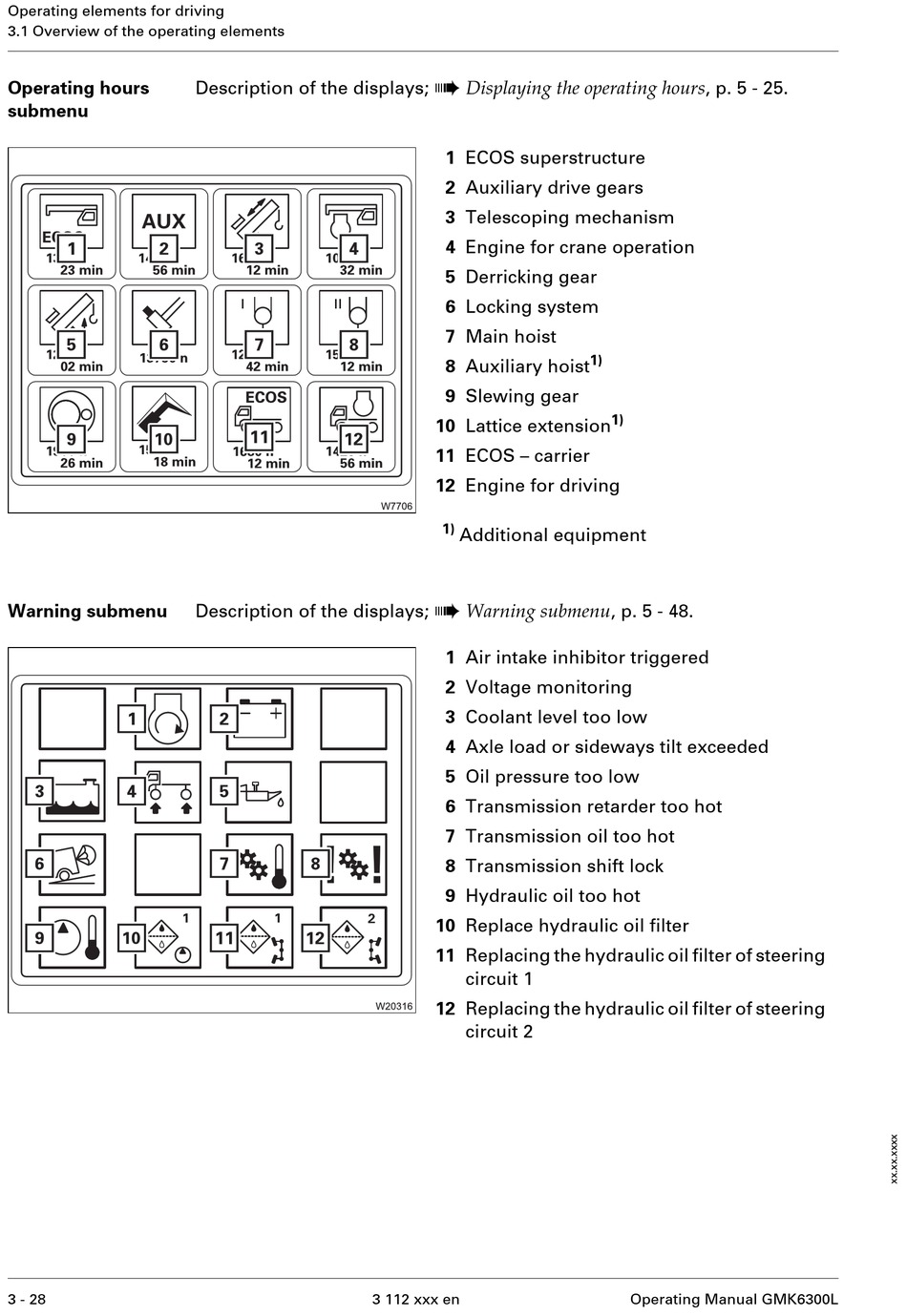

Operating hours
submenu
Warning submenu
3 - 28
Description of the displays;
Description of the displays;
à
Displaying the operating hours , p. 5 - 25.
1 ECOS superstructure
2 Auxiliary drive gears
3 Telescoping mechanism
4 Engine for crane operation
5 Derricking gear
6 Locking system
7 Main hoist
8 Auxiliary hoist
9 Slewing gear
10 Lattice extension
11 ECOS – carrier
12 Engine for driving
1)
Additional equipment
à
Warning submenu , p. 5 - 48.
1 Air intake inhibitor triggered
2 Voltage monitoring
3 Coolant level too low
4 Axle load or sideways tilt exceeded
5 Oil pressure too low
6 Transmission retarder too hot
7 Transmission oil too hot
8 Transmission shift lock
9 Hydraulic oil too hot
10 Replace hydraulic oil filter
11 Replacing the hydraulic oil filter of steering
circuit 1
12 Replacing the hydraulic oil filter of steering
circuit 2
3 112 xxx en
1)
1)
Operating Manual GMK6300L
