Crane operation
11.5 Working range limiter
11 - 122

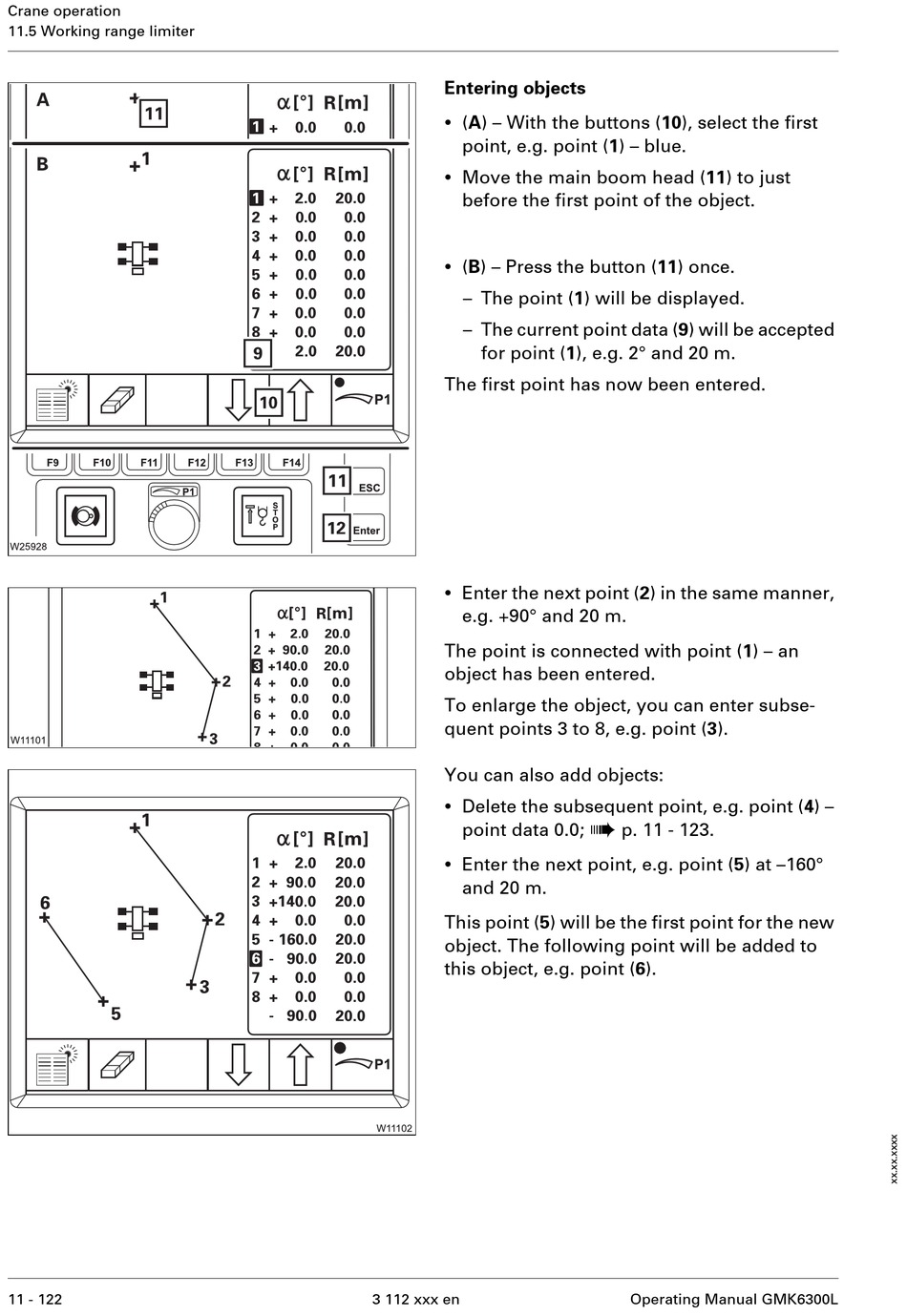

Entering objects
•
(A) – With the buttons (10), select the first
point, e.g. point (1) – blue.
•
Move the main boom head (11) to just
before the first point of the object.
•
(B) – Press the button (11) once.
– The point (1) will be displayed.
– The current point data (9) will be accepted
for point (1), e.g. 2° and 20 m.
The first point has now been entered.
•
Enter the next point (2) in the same manner,
e.g. +90° and 20 m.
The point is connected with point (1) – an
object has been entered.
To enlarge the object, you can enter subse-
quent points 3 to 8, e.g. point (3).
You can also add objects:
•
Delete the subsequent point, e.g. point (4) –
point data 0.0;
•
Enter the next point, e.g. point (5) at –160°
and 20 m.
This point (5) will be the first point for the new
object. The following point will be added to
this object, e.g. point (6).
3 112 xxx en
à
p. 11 - 123.
