Crane operation
11.3 Crane operation with main boom
11 - 78

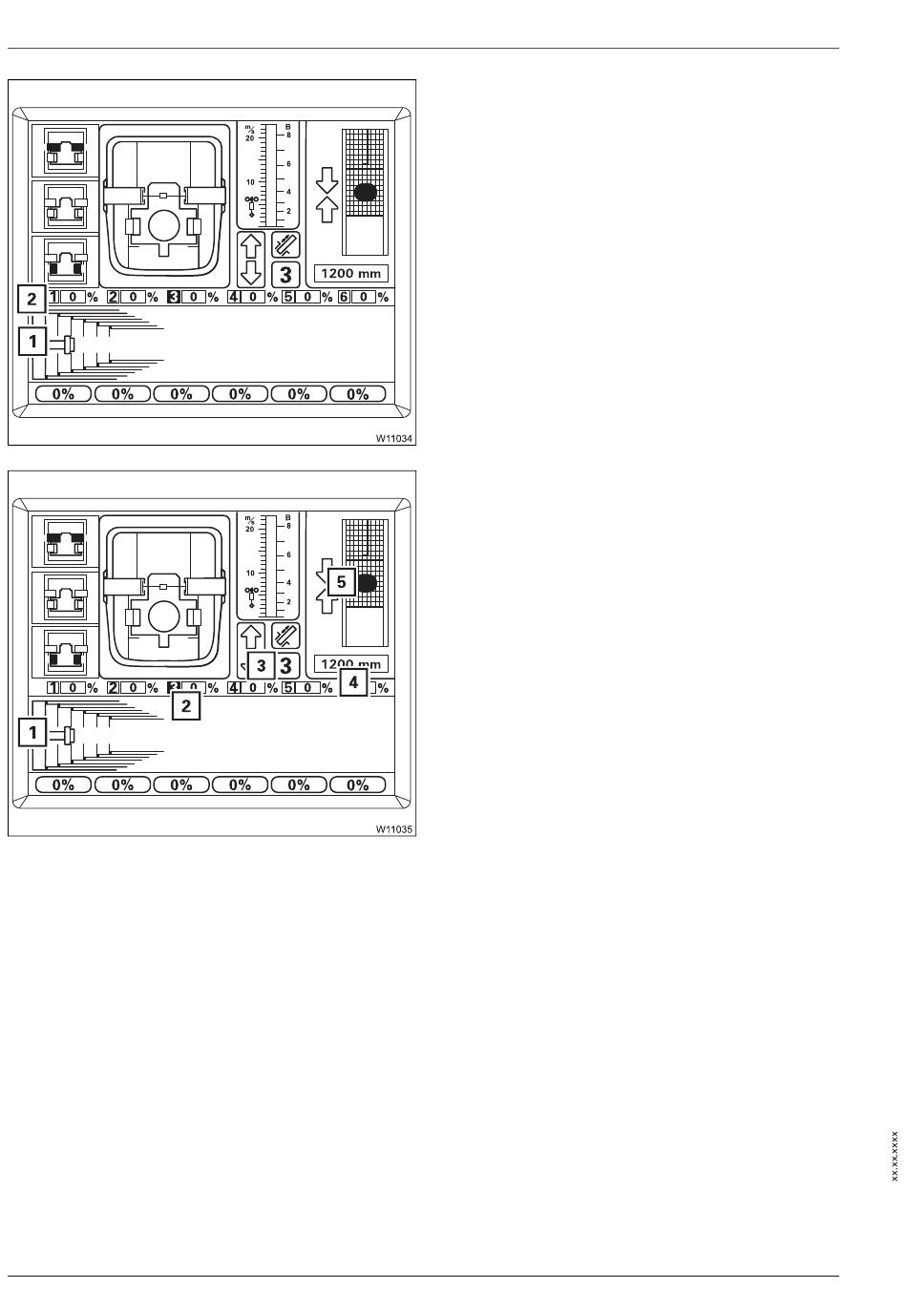

Current telescoping
The display (2) shows the current telescoping
in per cent for each telescopic section.
The display (1) shows a diagram of the current
telescope state.
Position of the telescoping cylinder
The display (4) shows how far the telescoping
cylinder is extended, e.g. 1,200 mm (3.93 ft).
If the telescoping cylinder is near a locking
point:
– The display (3) shows the corresponding tel-
escopic section, e.g. telescopic section III .
– The display (2) shows the corresponding
telescopic section – number is green,
– The display (5) shows one or two arrows,
depending on the distance to the locking
point.
The display (1) shows a top view of the current
position.
