Rigging work

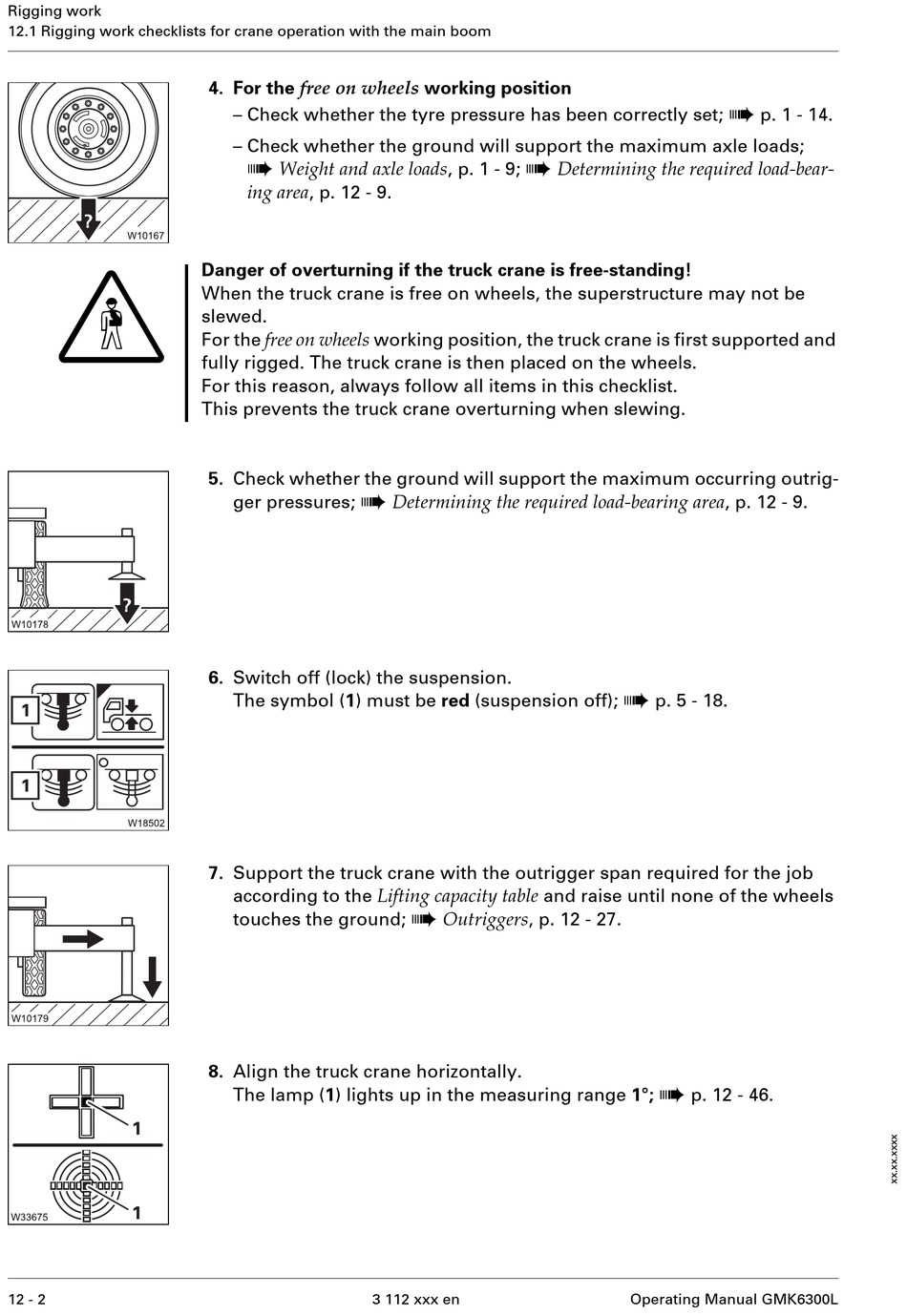

12.1 Rigging work checklists for crane operation with the main boom
G
12 - 2
4. For the free on wheels working position
– Check whether the tyre pressure has been correctly set;
– Check whether the ground will support the maximum axle loads;
à
Weight and axle loads , p. 1 - 9;
ing area , p. 12 - 9.
Danger of overturning if the truck crane is free-standing!
When the truck crane is free on wheels, the superstructure may not be
slewed.
For the free on wheels working position, the truck crane is first supported and
fully rigged. The truck crane is then placed on the wheels.
For this reason, always follow all items in this checklist.
This prevents the truck crane overturning when slewing.
5. Check whether the ground will support the maximum occurring outrig-
à
ger pressures;
6. Switch off (lock) the suspension.
The symbol (1) must be red (suspension off);
7. Support the truck crane with the outrigger span required for the job
according to the Lifting capacity table and raise until none of the wheels
touches the ground;
8. Align the truck crane horizontally.
The lamp (1) lights up in the measuring range 1°;
3 112 xxx en
à
Determining the required load-bear-
Determining the required load-bearing area , p. 12 - 9.
à
Outriggers , p. 12 - 27.
à
p. 1 - 14.
à
p. 5 - 18.
à
p. 12 - 46.
