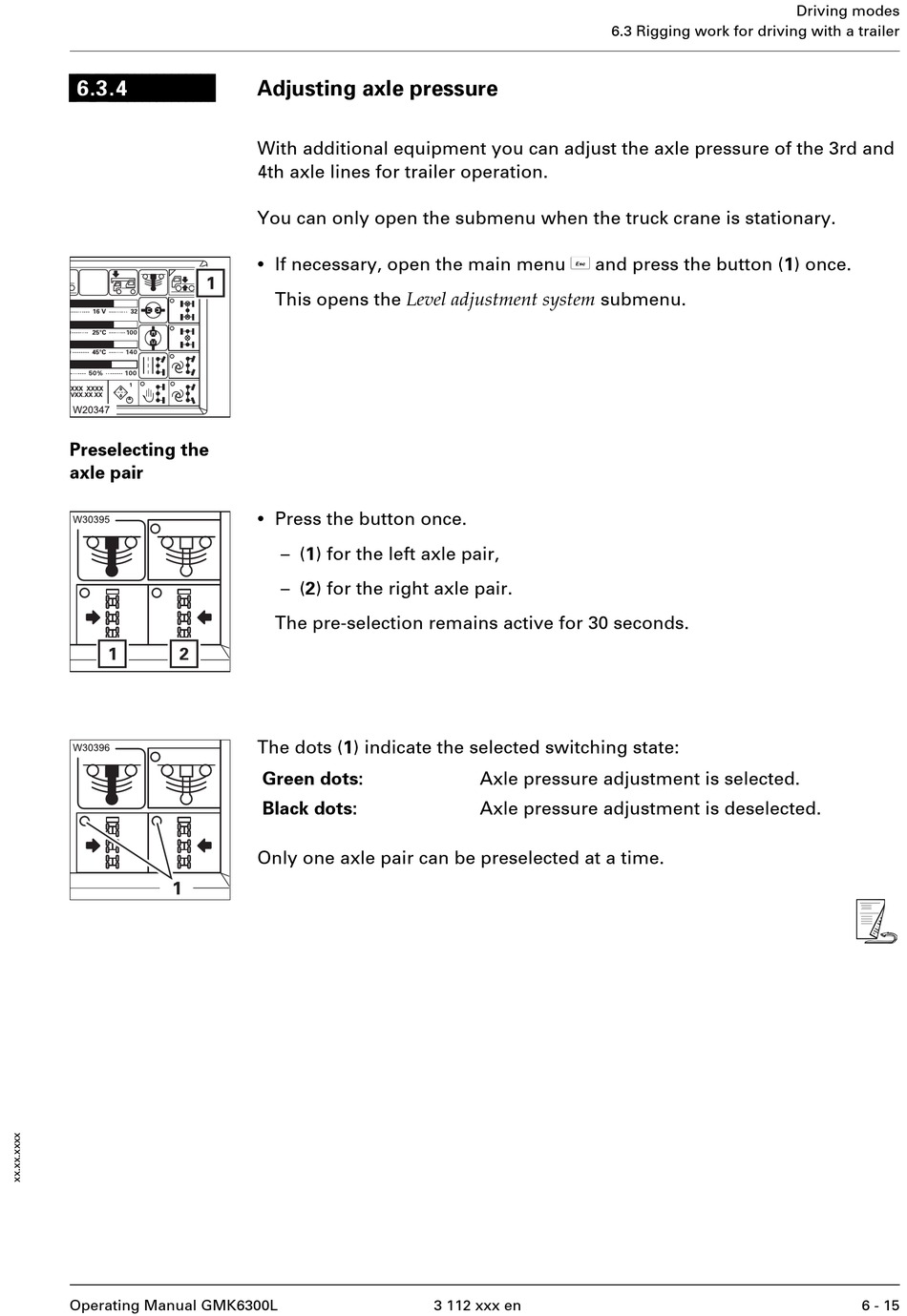

Adjusting Axle Pressure - Manitowoc Grove GMK6300L Operating Manual

6.3.4
Preselecting the
axle pair
Operating Manual GMK6300L

Adjusting axle pressure

With additional equipment you can adjust the axle pressure of the 3rd and
4th axle lines for trailer operation.
You can only open the submenu when the truck crane is stationary.
•
If necessary, open the main menu
This opens the Level adjustment system submenu.
•
Press the button once.
– (1) for the left axle pair,
– (2) for the right axle pair.
The pre-selection remains active for 30 seconds.
The dots (1) indicate the selected switching state:
Green dots:
Black dots:
Only one axle pair can be preselected at a time.
ö
and press the button (1) once.
Axle pressure adjustment is selected.
Axle pressure adjustment is deselected.
3 112 xxx en
6.3 Rigging work for driving with a trailer
Driving modes
s
6 - 15
