From the crane
cab

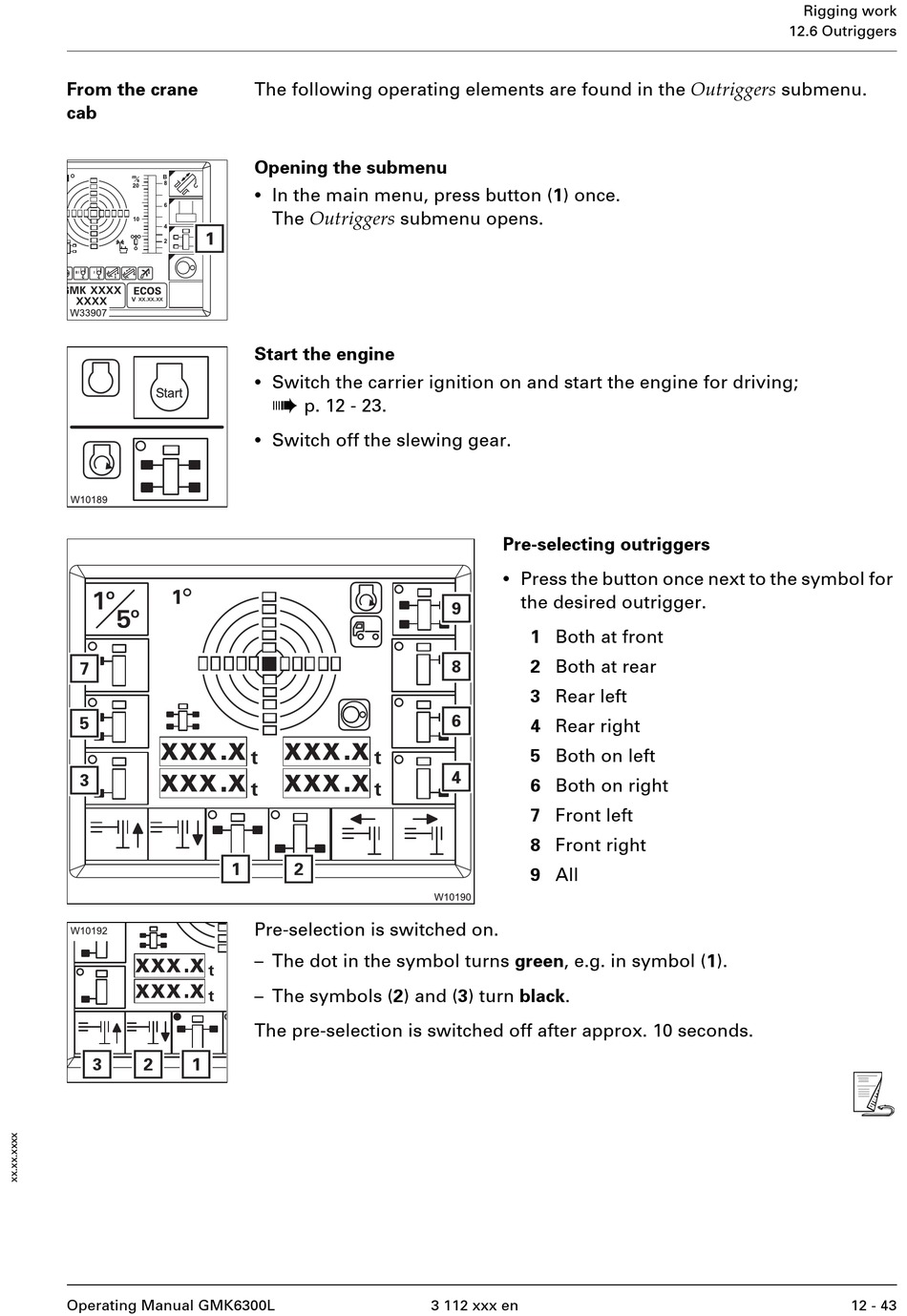

Operating Manual GMK6300L
The following operating elements are found in the Outriggers submenu.
Opening the submenu
•
In the main menu, press button (1) once.
The Outriggers submenu opens.
Start the engine
•
Switch the carrier ignition on and start the engine for driving;
à
p. 12 - 23.
•
Switch off the slewing gear.
Pre-selection is switched on.
– The dot in the symbol turns green, e.g. in symbol (1).
– The symbols (2) and (3) turn black.
The pre-selection is switched off after approx. 10 seconds.
Pre-selecting outriggers
•
Press the button once next to the symbol for
the desired outrigger.
1 Both at front
2 Both at rear
3 Rear left
4 Rear right
5 Both on left
6 Both on right
7 Front left
8 Front right
9 All
3 112 xxx en
Rigging work
12.6 Outriggers
s
12 - 43
