6.6.12
S
G
Lashing eyelets
Operating Manual GMK6300L

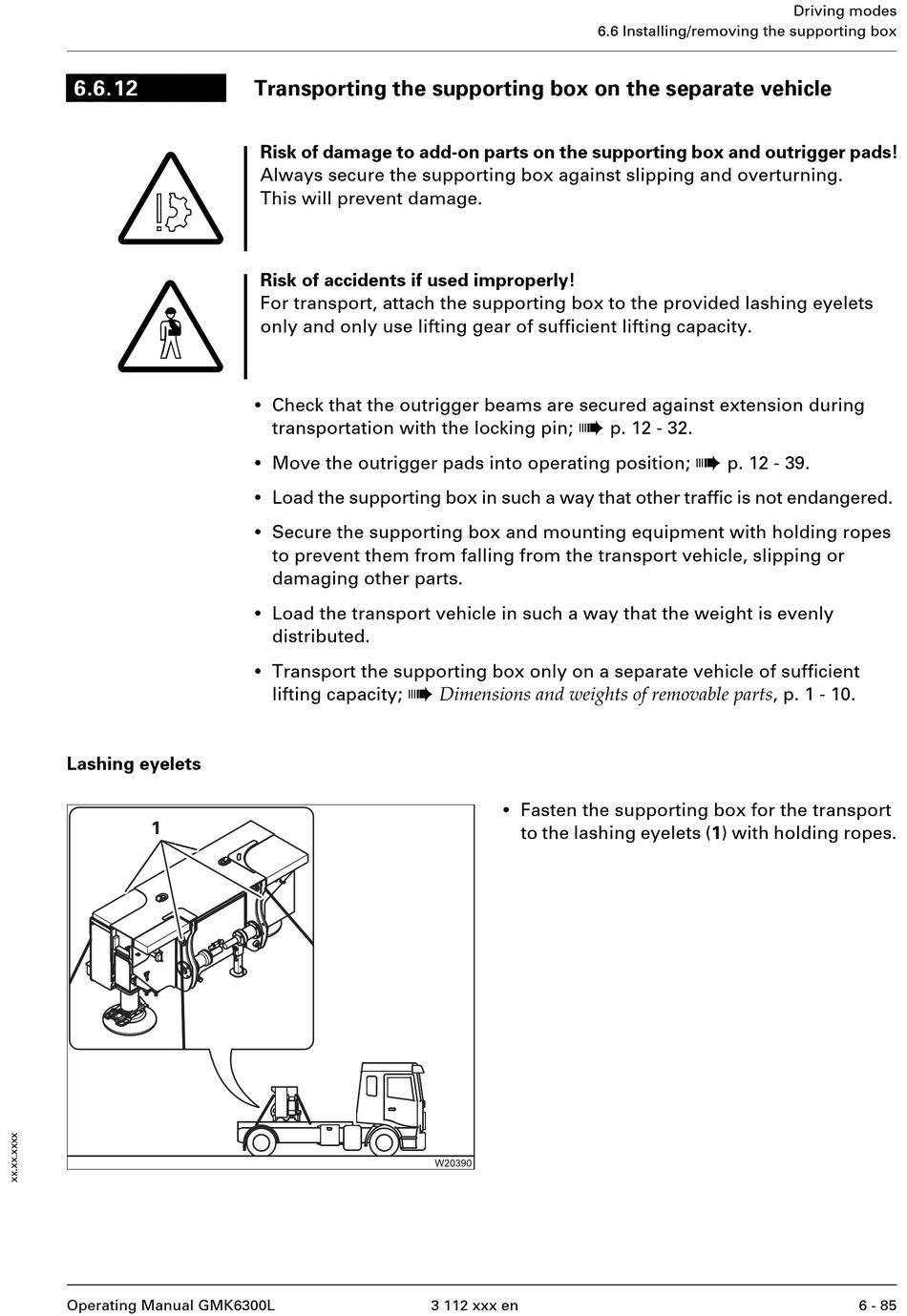

Transporting the supporting box on the separate vehicle

Risk of damage to add-on parts on the supporting box and outrigger pads!
Always secure the supporting box against slipping and overturning.
This will prevent damage.
Risk of accidents if used improperly!
For transport, attach the supporting box to the provided lashing eyelets
only and only use lifting gear of sufficient lifting capacity.
•
Check that the outrigger beams are secured against extension during
transportation with the locking pin;
•
Move the outrigger pads into operating position;
•
Load the supporting box in such a way that other traffic is not endangered.
•
Secure the supporting box and mounting equipment with holding ropes
to prevent them from falling from the transport vehicle, slipping or
damaging other parts.
•
Load the transport vehicle in such a way that the weight is evenly
distributed.
•
Transport the supporting box only on a separate vehicle of sufficient
à
lifting capacity;
6.6 Installing/removing the supporting box
à
Dimensions and weights of removable parts , p. 1 - 10.
•
Fasten the supporting box for the transport
to the lashing eyelets (1) with holding ropes.
3 112 xxx en
p. 12 - 32.
à
p. 12 - 39.
Driving modes
6 - 85
