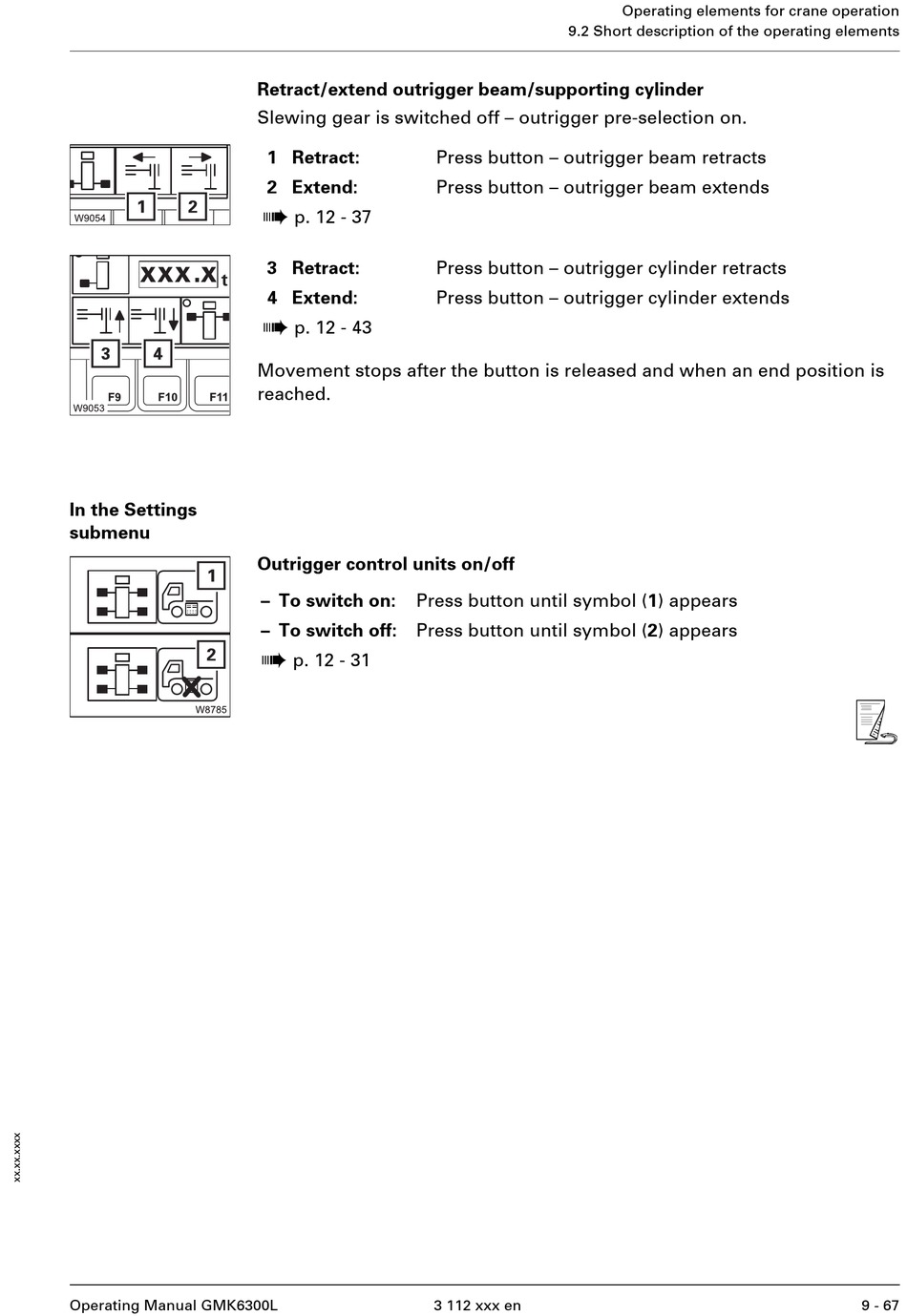

Manitowoc Grove GMK6300L Operating Manual page 531

In the Settings
submenu
Operating Manual GMK6300L
Retract/extend outrigger beam/supporting cylinder
Slewing gear is switched off – outrigger pre-selection on.
1 Retract:
2 Extend:
à
p. 12 - 37
3 Retract:
4 Extend:
à
p. 12 - 43
Movement stops after the button is released and when an end position is
reached.
Outrigger control units on/off
– To switch on: Press button until symbol (1) appears
– To switch off: Press button until symbol (2) appears
à
p. 12 - 31
9.2 Short description of the operating elements
Press button – outrigger beam retracts
Press button – outrigger beam extends
Press button – outrigger cylinder retracts
Press button – outrigger cylinder extends
3 112 xxx en
Operating elements for crane operation
s
9 - 67
