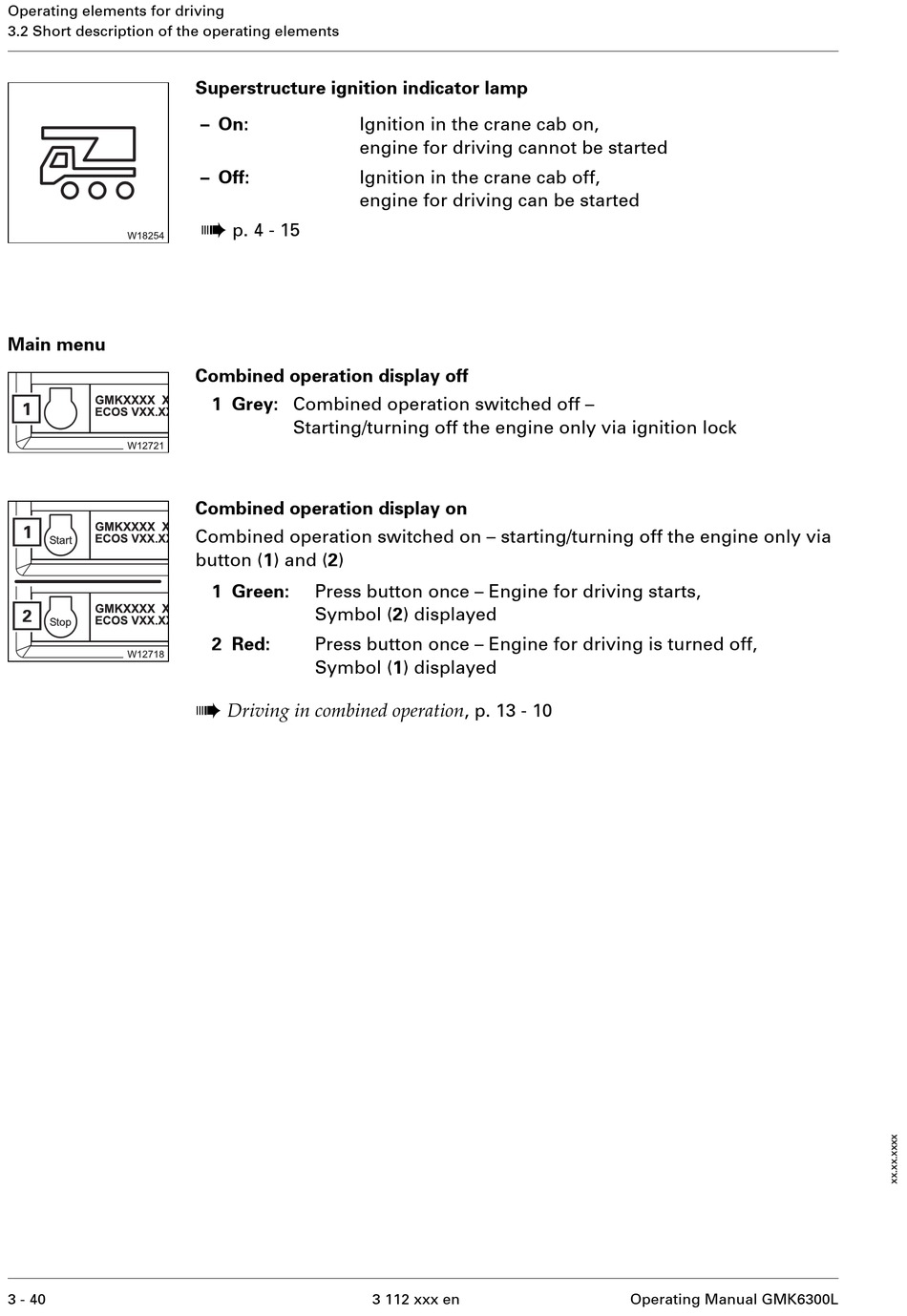

Manitowoc Grove GMK6300L Operating Manual page 116

Operating elements for driving
3.2 Short description of the operating elements
Main menu
3 - 40
Superstructure ignition indicator lamp
– On: Ignition in the crane cab on,
engine for driving cannot be started
– Off: Ignition in the crane cab off,
engine for driving can be started
à
p. 4 - 15
Combined operation display off
1 Grey: Combined operation switched off –
Starting/turning off the engine only via ignition lock
Combined operation display on
Combined operation switched on – starting/turning off the engine only via
button (1) and (2)
1 Green: Press button once – Engine for driving starts,
Symbol (2) displayed
2 Red: Press button once – Engine for driving is turned off,
Symbol (1) displayed
à
Driving in combined operation , p. 13 - 10
3 112 xxx en Operating Manual GMK6300L
