Switching Monitoring Functions On/Off - Manitowoc Grove GMK6300L Operating Manual

Crane operation
11.5 Working range limiter
11.5.5
G
H
H
11 - 126

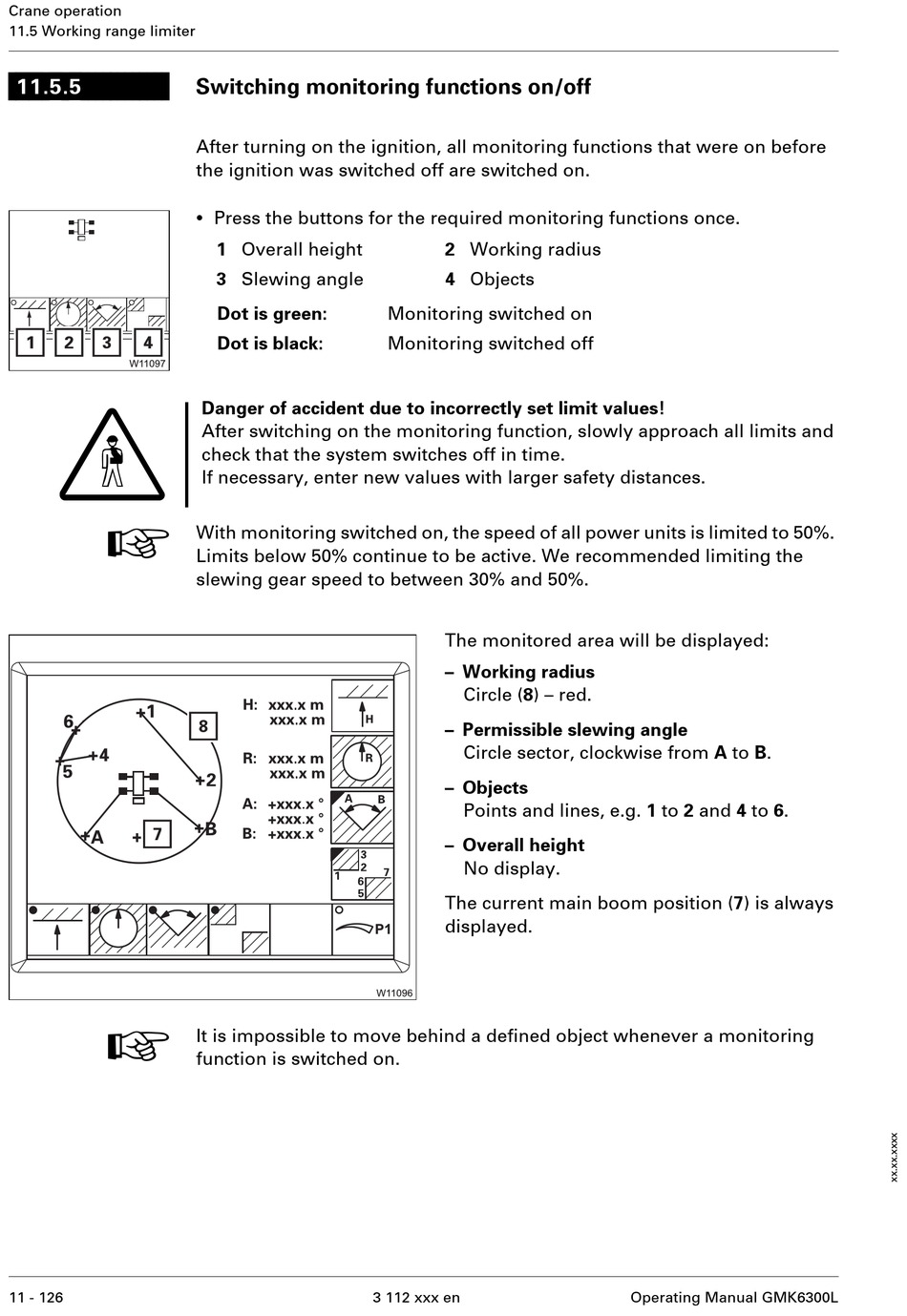

Switching monitoring functions on/off

After turning on the ignition, all monitoring functions that were on before
the ignition was switched off are switched on.
•
Press the buttons for the required monitoring functions once.
1 Overall height
3 Slewing angle
Dot is green:
Dot is black:
Danger of accident due to incorrectly set limit values!
After switching on the monitoring function, slowly approach all limits and
check that the system switches off in time.
If necessary, enter new values with larger safety distances.
With monitoring switched on, the speed of all power units is limited to 50%.
Limits below 50% continue to be active. We recommended limiting the
slewing gear speed to between 30% and 50%.
It is impossible to move behind a defined object whenever a monitoring
function is switched on.
2 Working radius
4 Objects
Monitoring switched on
Monitoring switched off
The monitored area will be displayed:
– Working radius
Circle (8) – red.
– Permissible slewing angle
Circle sector, clockwise from A to B.
– Objects
Points and lines, e.g. 1 to 2 and 4 to 6.
– Overall height
No display.
The current main boom position (7) is always
displayed.
3 112 xxx en Operating Manual GMK6300L
