Warning plates for
vehicle width
Displaying vehicle
height
S
Operating Manual GMK6300L

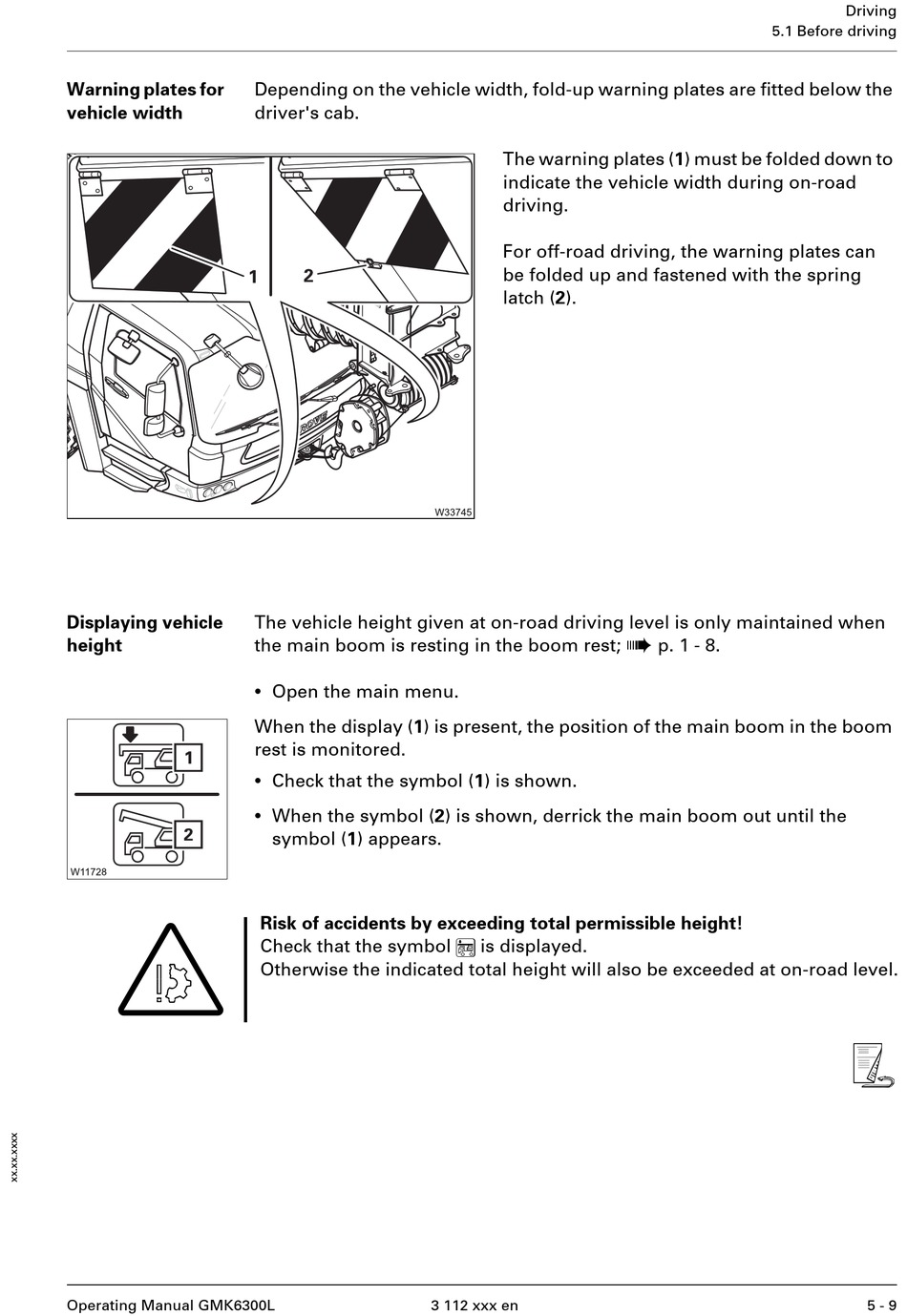

Depending on the vehicle width, fold-up warning plates are fitted below the
driver's cab.
The vehicle height given at on-road driving level is only maintained when
the main boom is resting in the boom rest;
•
Open the main menu.
When the display (1) is present, the position of the main boom in the boom
rest is monitored.
•
Check that the symbol (1) is shown.
•
When the symbol (2) is shown, derrick the main boom out until the
symbol (1) appears.
Risk of accidents by exceeding total permissible height!
Check that the symbol
Otherwise the indicated total height will also be exceeded at on-road level.
The warning plates (1) must be folded down to
indicate the vehicle width during on-road
driving.
For off-road driving, the warning plates can
be folded up and fastened with the spring
latch (2).
x
is displayed.
3 112 xxx en
5.1 Before driving
à
p. 1 - 8.
Driving
s
5 - 9
