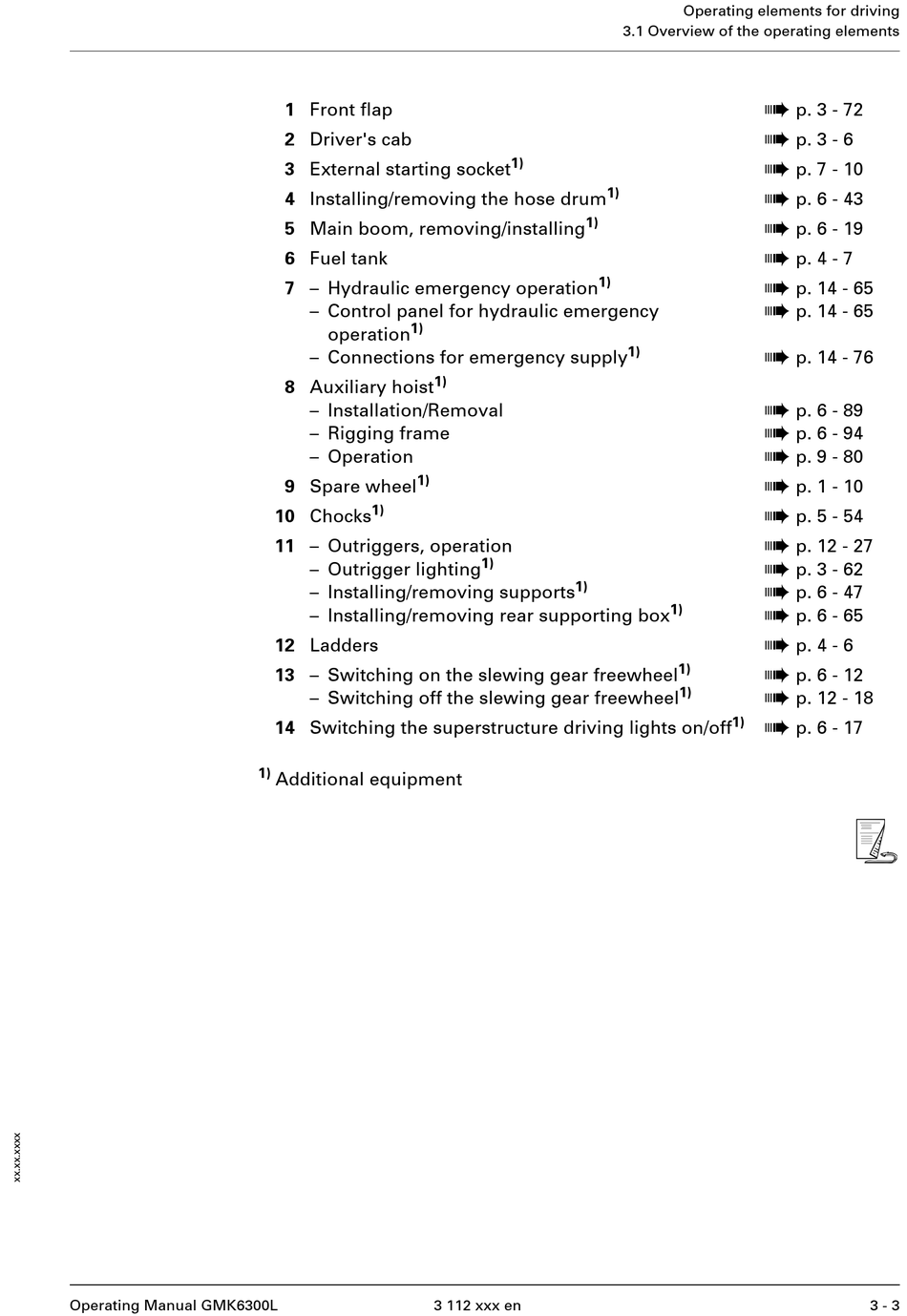

Manitowoc Grove GMK6300L Operating Manual page 79

Operating Manual GMK6300L
1 Front flap
2 Driver's cab
3 External starting socket
4 Installing/removing the hose drum
5 Main boom, removing/installing
6 Fuel tank
7 – Hydraulic emergency operation
– Control panel for hydraulic emergency
1)
operation
– Connections for emergency supply
8 Auxiliary hoist
– Installation/Removal
– Rigging frame
– Operation
1)
9 Spare wheel
1)
10 Chocks
11 – Outriggers, operation
– Outrigger lighting
– Installing/removing supports
– Installing/removing rear supporting box
12 Ladders
13 – Switching on the slewing gear freewheel
– Switching off the slewing gear freewheel
14 Switching the superstructure driving lights on/off
1)
Additional equipment
1)
1)
1)
1)
1)
1)
3 112 xxx en
Operating elements for driving
3.1 Overview of the operating elements
à
à
à
à
1)
à
à
à
à
à
1)
à
à
à
à
à
à
à
à
à
1)
à
à
1)
à
1)
à
1)
p. 3 - 72
p. 3 - 6
p. 7 - 10
p. 6 - 43
p. 6 - 19
p. 4 - 7
p. 14 - 65
p. 14 - 65
p. 14 - 76
p. 6 - 89
p. 6 - 94
p. 9 - 80
p. 1 - 10
p. 5 - 54
p. 12 - 27
p. 3 - 62
p. 6 - 47
p. 6 - 65
p. 4 - 6
p. 6 - 12
p. 12 - 18
p. 6 - 17
s
3 - 3
